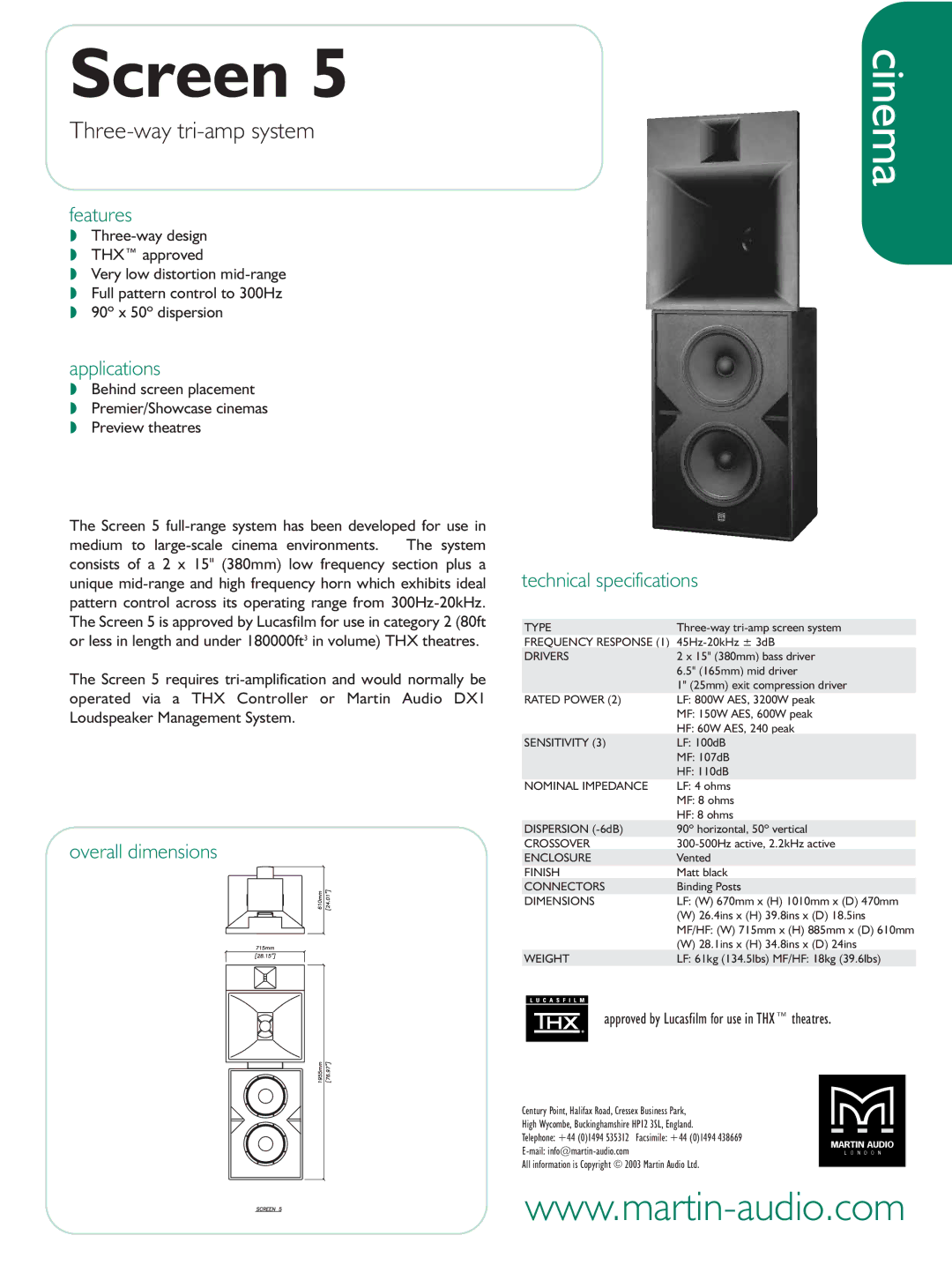

Martin Audio Screen 5 technical specifications Cinema, Three-way tri-amp system

Screen 5

Three-way tri-amp system

features

!Three-way design

!THX™ approved

!Very low distortion mid-range

!Full pattern control to 300Hz

!90º x 50º dispersion

applications

!Behind screen placement

!Premier/Showcase cinemas

!Preview theatres

The Screen 5 full-range system has been developed for use in medium to large-scale cinema environments. The system consists of a 2 x 15" (380mm) low frequency section plus a unique mid-range and high frequency horn which exhibits ideal pattern control across its operating range from 300Hz-20kHz. The Screen 5 is approved by Lucasfilm for use in category 2 (80ft or less in length and under 180000ft3 in volume) THX theatres.

The Screen 5 requires tri-amplification and would normally be operated via a THX Controller or Martin Audio DX1 Loudspeaker Management System.

overall dimensions

cinema

technical specifications

TYPE	Three-way tri-amp screen system
FREQUENCY RESPONSE (1) 45Hz-20kHz ± 3dB
DRIVERS	2 x 15" (380mm) bass driver
	6.5" (165mm) mid driver
	1" (25mm) exit compression driver
RATED POWER (2)	LF: 800W AES, 3200W peak
	MF: 150W AES, 600W peak
	HF: 60W AES, 240 peak
SENSITIVITY (3)	LF: 100dB
	MF: 107dB
	HF: 110dB
NOMINAL IMPEDANCE	LF: 4 ohms
	MF: 8 ohms
	HF: 8 ohms
DISPERSION (-6dB)	90º horizontal, 50º vertical
CROSSOVER	300-500Hz active, 2.2kHz active
ENCLOSURE	Vented
FINISH	Matt black
CONNECTORS	Binding Posts
DIMENSIONS	LF: (W) 670mm x (H) 1010mm x (D) 470mm
	(W) 26.4ins x (H) 39.8ins x (D) 18.5ins
	MF/HF: (W) 715mm x (H) 885mm x (D) 610mm
	(W) 28.1ins x (H) 34.8ins x (D) 24ins
WEIGHT	LF: 61kg (134.5lbs) MF/HF: 18kg (39.6lbs)

approved by Lucasfilm for use in THX™ theatres.
