Maxtor 4R160L0, 4A250J0, 4A300J0, 4R060J0, 4R080L0 Capacity, Acoustics FDB motor, Temperature, Shock

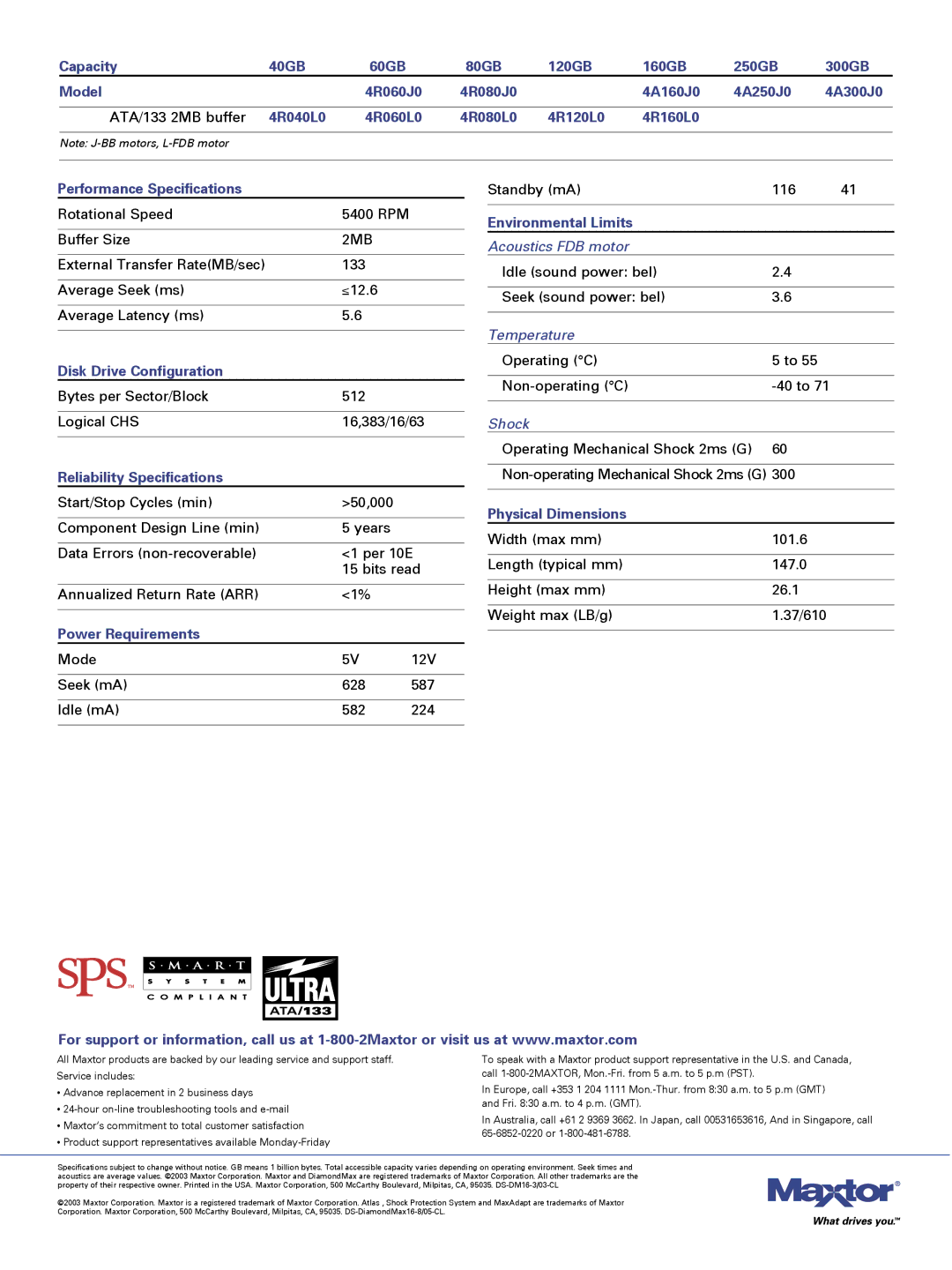

Capacity	40GB	60GB	80GB	120GB	160GB	250GB	300GB
Model		4R060J0	4R080J0		4A160J0	4A250J0	4A300J0
ATA/133 2MB buffer	4R040L0	4R060L0	4R080L0	4R120L0	4R160L0

Note: J-BB motors, L-FDB motor

Performance Specifications

Rotational Speed	5400 RPM
Buffer Size	2MB

Standby (mA) 116 41

Environmental Limits

Acoustics FDB motor

External Transfer Rate(MB/sec)	133
Average Seek (ms)	≤12.6
Average Latency (ms)	5.6
Disk Drive Configuration
Bytes per Sector/Block	512
Logical CHS	16,383/16/63
Reliability Specifications
Start/Stop Cycles (min)	>50,000
Component Design Line (min)	5 years
Data Errors (non-recoverable)	<1 per 10E
	15 bits read
Annualized Return Rate (ARR)	<1%

Power Requirements

Idle (sound power: bel)	2.4
Seek (sound power: bel)	3.6
Temperature
Operating (°C)	5 to 55
Non-operating (°C)	-40 to 71

Shock

Operating Mechanical Shock 2ms (G) 60

Non-operating Mechanical Shock 2ms (G) 300

Physical Dimensions

Width (max mm)	101.6
Length (typical mm)	147.0
Height (max mm)	26.1
Weight max (LB/g)	1.37/610

Mode	5V	12V
Seek (mA)	628	587
Idle (mA)	582	224

For support or information, call us at 1-800-2Maxtor or visit us at www.maxtor.com

All Maxtor products are backed by our leading service and support staff. Service includes:

•Advance replacement in 2 business days

•24-hour on-line troubleshooting tools and e-mail

•Maxtor’s commitment to total customer satisfaction

•Product support representatives available Monday-Friday

To speak with a Maxtor product support representative in the U.S. and Canada, call 1-800-2MAXTOR, Mon.-Fri. from 5 a.m. to 5 p.m (PST).

In Europe, call +353 1 204 1111 Mon.-Thur. from 8:30 a.m. to 5 p.m (GMT) and Fri. 8:30 a.m. to 4 p.m. (GMT).

In Australia, call +61 2 9369 3662. In Japan, call 00531653616, And in Singapore, call 65-6852-0220 or 1-800-481-6788.

Specifications subject to change without notice. GB means 1 billion bytes. Total accessible capacity varies depending on operating environment. Seek times and acoustics are average values. ©2003 Maxtor Corporation. Maxtor and DiamondMax are registered trademarks of Maxtor Corporation. All other trademarks are the property of their respective owner. Printed in the USA. Maxtor Corporation, 500 McCarthy Boulevard, Milpitas, CA, 95035. DS-DM16-3/03-CL
