E.M&K speaker system with an LFE-4 Bass Management Controller or some other form of bass management system.

2.If possible, have one person sit at the listening/monitoring position and read the SPL meter, while another person adjusts the trim pots. The SPL meter should be held at arm’s length at ear height.

3.When the slot of the trim LFE-4/LFE-5 pot is pointing at the top cover, the system gain is approximately 0dB.

The Test CD

The test CD has three tracks on it to aid in setup.

Track #1 Pink noise at -20dBfs band limited from 500Hz to 2kHz.

This test signal is used to set levels on the front speakers and the surrounds.

Track #2 Pink noise at -20dBfs band limited from 40Hz to 80 Hz.

This test signal is used to check the subwoofer balance and to set the level of the LFE channel.

Track #3 1 kHz sine wave at -20dBfs.

This test signal is used to set the 0VU reference on your mixer.

System Calibration

Placing your Speakers:

1.Set up the speakers in their final locations, preferably at equal distance from the listening position. For additional information, on speaker placement see the speaker placement section in this

manual.

2. If the speakers are moved it is recommended that the system be fully recalibrated.

Configuring your console and signal path chain:

1.Remove all EQ from the mixer channels and the signal path.

2.Turn all volume controls in the signal chain to their “Reference Level” position. These volume controls include the console, equalizers, power amplifiers, remote control faders, signal selectors etc. The “Reference Level” position is your defined reference playback level, which is usually 85dB

SPL for film, video and music. For the rest of these instructions, we will assume that is 85dB SPL as your reference level. If you are not using 85dB then substitute the level you use wherever you see 85dB SPL.

Setup the CD Player:

1.Connect either the left or the right channel (do not sum the outputs) of the CD player to the input of your mixing console and route that channel to the desired output (i.e. left front).

Calibration of the front and surround speakers:

For each of the front and surround speakers do the following.

1.Route the CD output to the speaker you want to calibrate (i.e. Left Front)

2.Select CD track #3 and set the level on the console for 0VU. Do not move the faders once you have set this level.

9

Page 9
Image 9
MK Sound MPS-5410 Test CD, System Calibration Placing your Speakers, Configuring your console and signal path chain

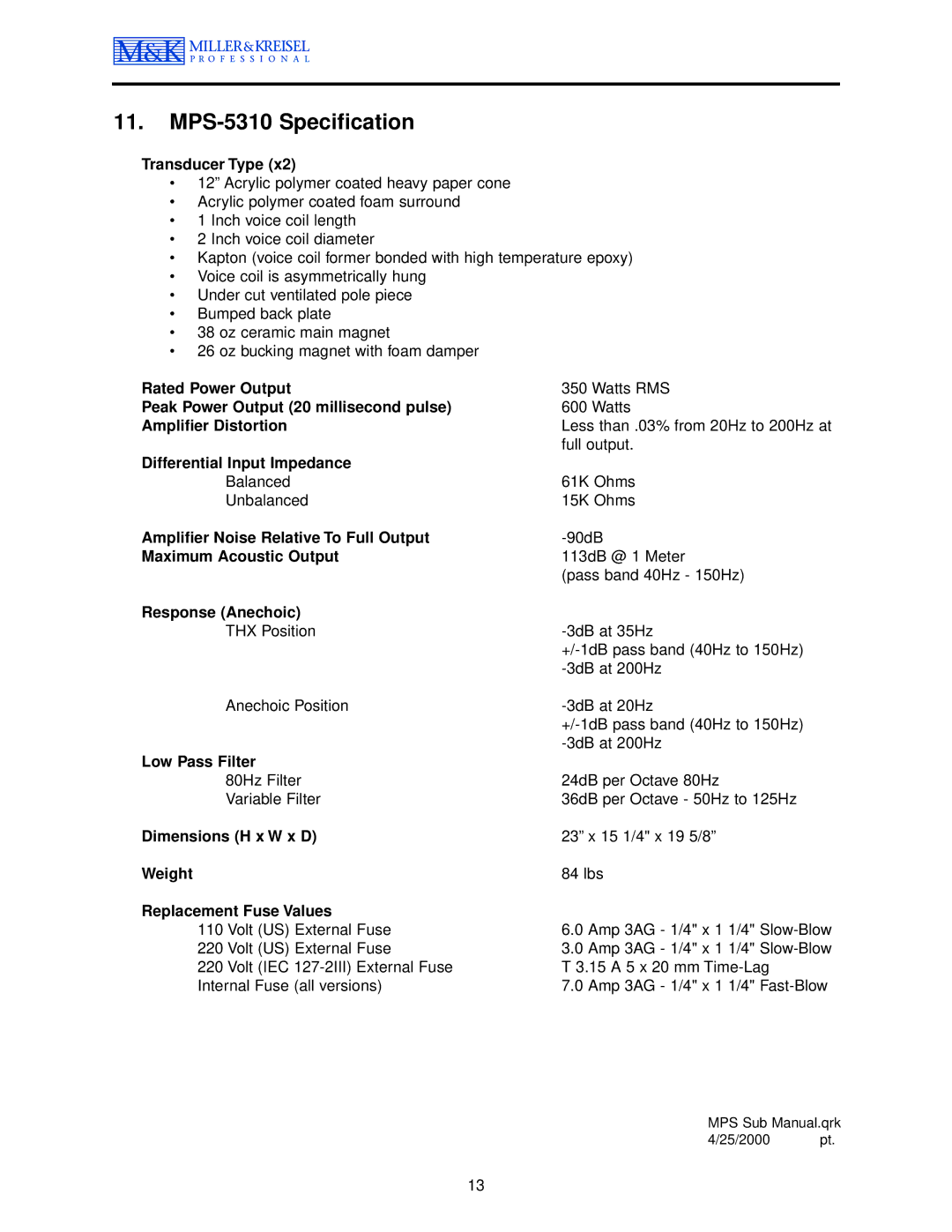

MPS-5410, MPS-5310 specifications

The MK Sound MPS-5410 and MPS-5310 are two exceptional audio solutions, designed to elevate sound quality in both home theater setups and professional environments. These two models showcase MK Sound's commitment to delivering precise, accurate sound reproduction, coupled with advanced technologies that enhance the overall listening experience.

The MPS-5410 is a powerful subwoofer that utilizes a 10-inch driver, paired with a high-performance amplifier, allowing it to deliver deep, impactful bass. One of its standout features is the ability to produce frequencies as low as 25 Hz. This capability ensures that users can experience the full range of sound, particularly in movie soundtracks and music that relies on low frequency to create a fully immersive atmosphere.

On the other hand, the MPS-5310, while slightly smaller, still packs a punch with its 8-inch driver. This model is designed for those who desire high-quality sound without the overwhelming size. It's ideal for smaller rooms or setups where space is a consideration. The MPS-5310 also boasts a frequency response that extends down to 30 Hz, ensuring that users can still enjoy robust bass without sacrificing clarity.

Both models are equipped with MK Sound's proprietary technology, known for its low distortion and high dynamic range. This technology helps maintain the integrity of the audio signal, allowing for a listening experience that is both detailed and expressive. Additionally, the subwoofers feature adjustable phase and volume controls, offering users the ability to perfectly tailor performance to their individual environment.

Moreover, both the MPS-5410 and MPS-5310 include a built-in automatic EQ, which analyzes and adjusts the output based on the room acoustics. This intelligent feature ensures that users achieve optimal sound quality regardless of the setting, eliminating the challenge of tuning manually.

The rugged build quality and stylish design of both models not only enhance their durability but also ensure they fit seamlessly into any decor. With a focus on performance, reliability, and user customization, the MK Sound MPS-5410 and MPS-5310 stand out as prominent choices for audiophiles and casual listeners alike, making them ideal components for creating an outstanding sound experience. Whether used individually or in combination, they promise to deliver a captivating auditory experience that captivates audiences in any setting.
