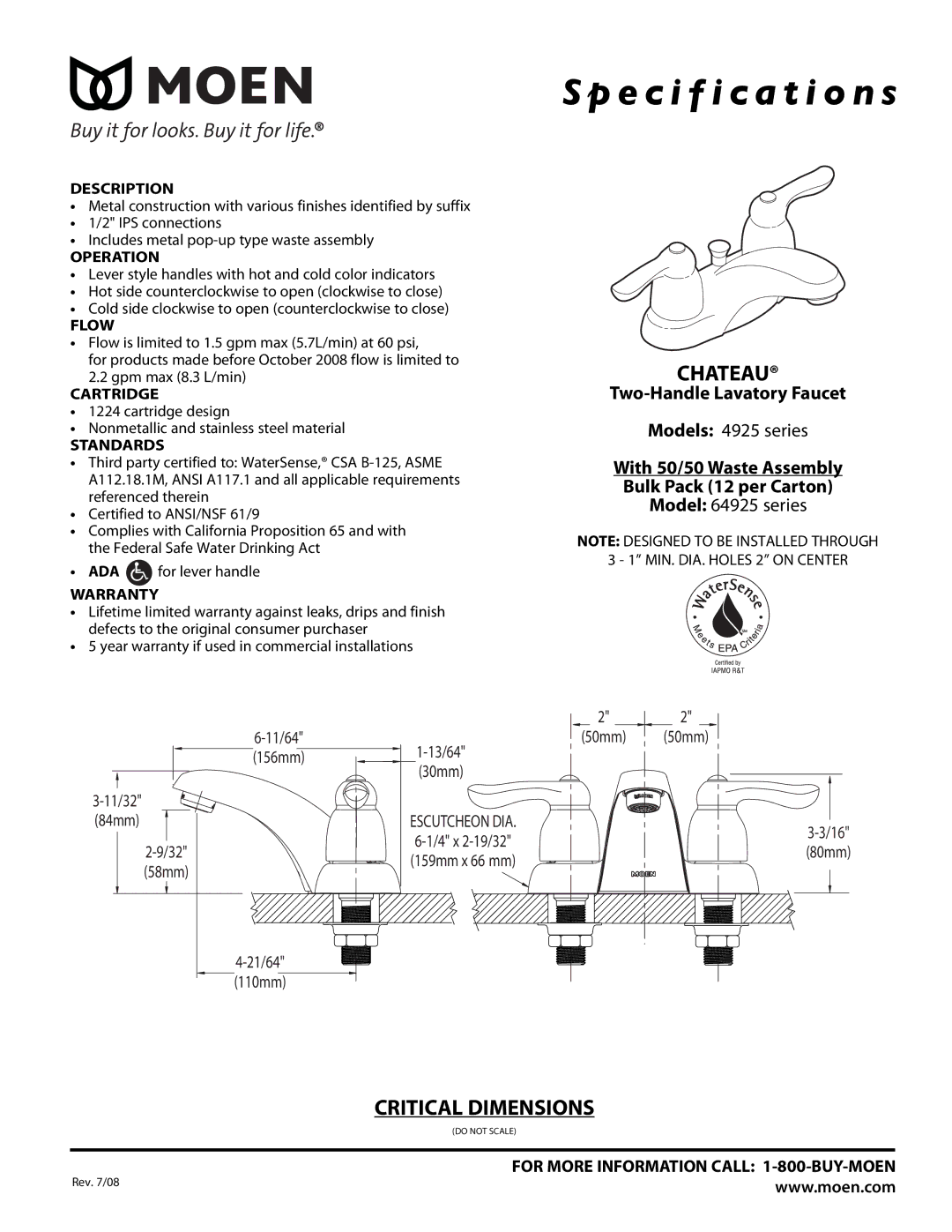

Moen 64925 series specifications Specification s, Chateau, Critical Dimensions

S p e c i f i c a t i o n s

DESCRIPTION

•Metal construction with various finishes identified by suffix

•1/2" IPS connections

•Includes metal pop-up type waste assembly

OPERATION

•Lever style handles with hot and cold color indicators

•Hot side counterclockwise to open (clockwise to close)

•Cold side clockwise to open (counterclockwise to close)

FLOW

•Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi,

for products made before October 2008 flow is limited to 2.2 gpm max (8.3 L/min)

CARTRIDGE

•1224 cartridge design

•Nonmetallic and stainless steel material

STANDARDS

•Third party certified to: WaterSense,® CSA B-125, ASME A112.18.1M, ANSI A117.1 and all applicable requirements referenced therein

•Certified to ANSI/NSF 61/9

•Complies with California Proposition 65 and with the Federal Safe Water Drinking Act

•ADA for lever handle

WARRANTY

•Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

CHATEAU®

Two-Handle Lavatory Faucet

Models: 4925 series

With 50/50 Waste Assembly

Bulk Pack (12 per Carton)

Model: 64925 series

NOTE: DESIGNED TO BE INSTALLED THROUGH

3 - 1” MIN. DIA. HOLES 2” ON CENTER

3-11/32" (84mm)

2-9/32" (58mm)

6-11/64" (156mm)

4-21/64" (110mm)

2" 2"

(50mm) (50mm)

1-13/64" (30mm)

ESCUTCHEON DIA. 6-1/4" x 2-19/32" (159mm x 66 mm)

3-3/16" (80mm)

CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Rev. 7/08 www.moen.com
