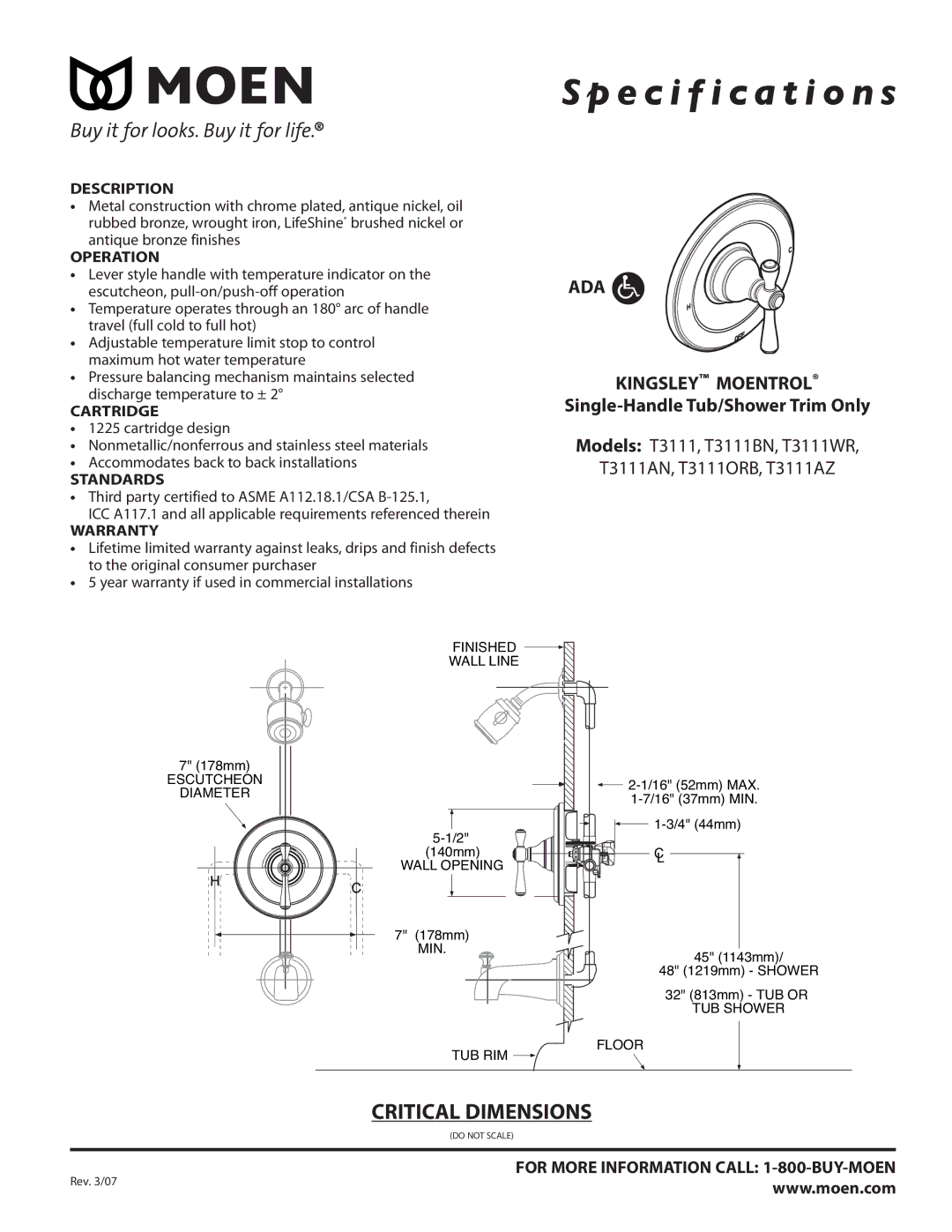

S p e c i f i c a t i o n s

DESCRIPTION

Metal construction with chrome plated, antique nickel, oil rubbed bronze, wrought iron, LifeShine® brushed nickel or antique bronze finishes

OPERATION

Lever style handle with temperature indicator on the escutcheon, pull-on/push-off operation

Temperature operates through an 180° arc of handle travel (full cold to full hot)

Adjustable temperature limit stop to control maximum hot water temperature

Pressure balancing mechanism maintains selected discharge temperature to ± 2°

CARTRIDGE

1225 cartridge design

Nonmetallic/nonferrous and stainless steel materials

Accommodates back to back installations

STANDARDS

Third party certified to ASME A112.18.1/CSA B-125.1,

ICC A117.1 and all applicable requirements referenced therein

WARRANTY

Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

5 year warranty if used in commercial installations

ADA

KINGSLEYMOENTROL®

Single-Handle Tub/Shower Trim Only

Models: T3111, T3111BN, T3111WR,

T3111AN, T3111ORB, T3111AZ

7" (178mm)

ESCUTCHEON

DIAMETER

FINISHED

WALL LINE





2-1/16" (52mm) MAX.





1-7/16" (37mm) MIN.



5-1/2"

1-3/4" (44mm)







(140mm)

C

WALL OPENING

L



7"

(178mm)





MIN.

45" (1143mm)/









48" (1219mm) - SHOWER





32" (813mm) - TUB OR





TUB SHOWER



TUB RIM

FLOOR





CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Rev. 3/07

www.moen.com



Page 1
