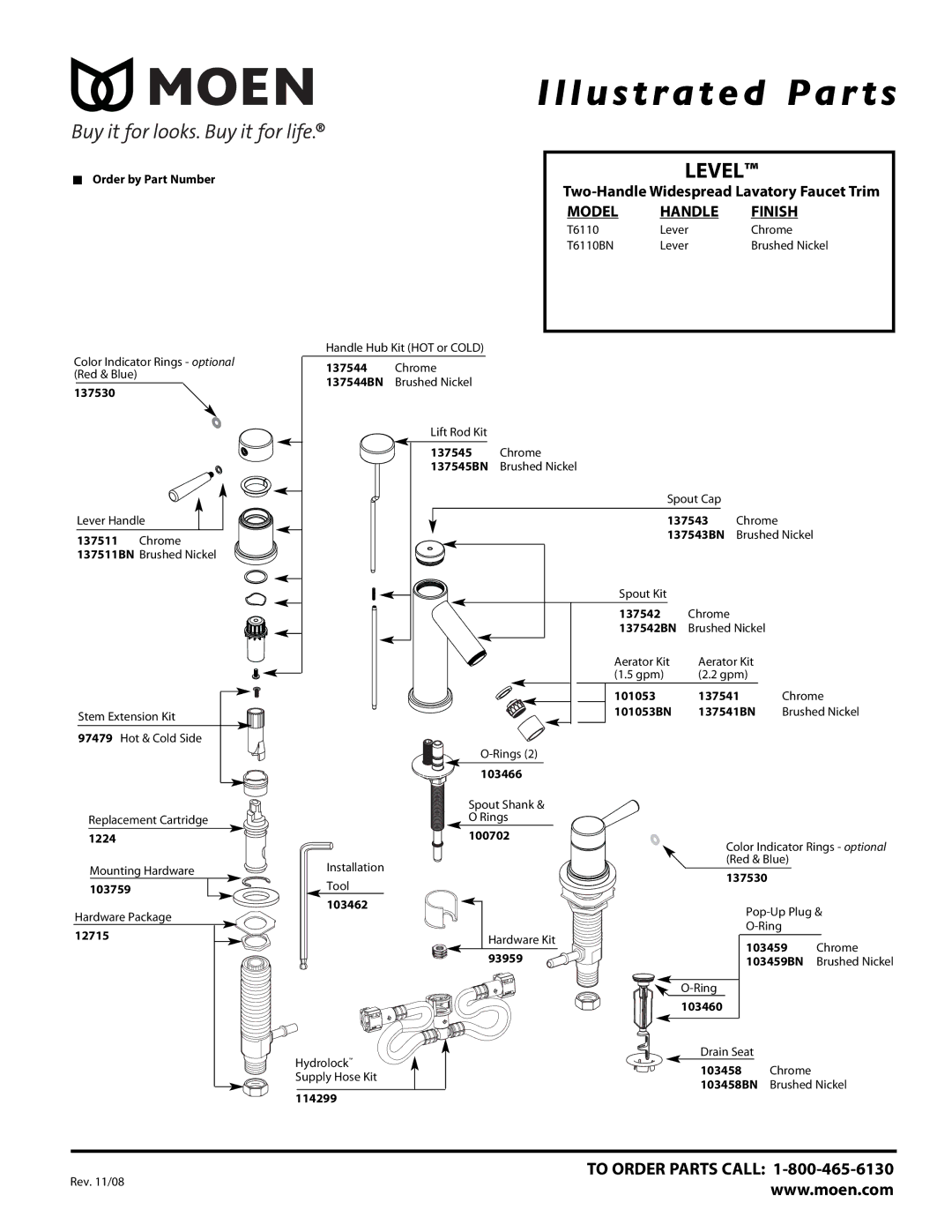

Illustrated Par ts

Order by Part Number

Color Indicator Rings - optional (Red & Blue)

137530

Lever Handle

137511 Chrome

LEVEL™

Two-Handle Widespread Lavatory Faucet Trim

MODEL

HANDLE

FINISH

T6110

Lever

Chrome

T6110BN

Lever

Brushed Nickel

Handle Hub Kit (HOT or COLD)

137544 Chrome

137544BN Brushed Nickel

Lift Rod Kit

137545 Chrome

137545BN Brushed Nickel

Spout Cap

137543 Chrome

137543BN Brushed Nickel

137511BN Brushed Nickel

Stem Extension Kit

97479 Hot & Cold Side

Replacement Cartridge

1224

Mounting Hardware

103759

Hardware Package

12715

Installation

Tool

103462

HydrolockSupply Hose Kit

114299

Spout Kit





137542

Chrome



137542BN

Brushed Nickel



Aerator Kit

Aerator Kit



(1.5 gpm)

(2.2 gpm)



101053

137541

Chrome

101053BN

137541BN

Brushed Nickel

O-Rings (2)





103466





Spout Shank &

O Rings

100702

Color Indicator Rings - optional (Red & Blue)

137530

Pop-Up Plug &

O-Ring

Hardware Kit











103459

Chrome

93959



103459BN

Brushed Nickel

O-Ring

103460

Drain Seat

103458 Chrome

103458BN Brushed Nickel

TO ORDER PARTS CALL: 1-800-465-6130

Rev. 11/08

www.moen.com

Page 1
