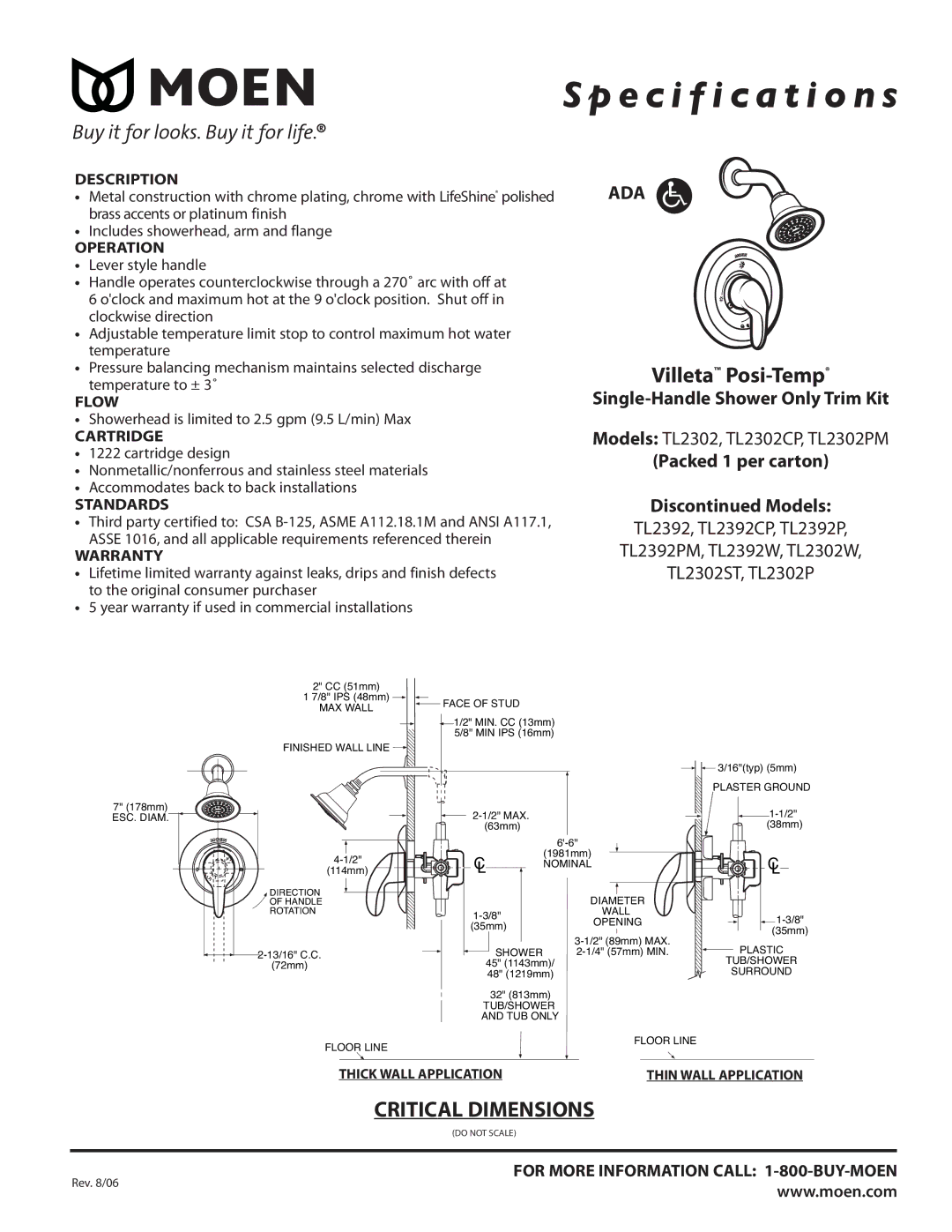

S p e c i f i c a t i o n s

DESCRIPTION

Metal construction with chrome plating, chrome with LifeShine® polished brass accents or platinum finish

Includes showerhead, arm and flange

OPERATION

Lever style handle

Handle operates counterclockwise through a 270˚ arc with off at 6 o'clock and maximum hot at the 9 o'clock position. Shut off in clockwise direction

Adjustable temperature limit stop to control maximum hot water temperature

Pressure balancing mechanism maintains selected discharge temperature to ± 3˚

FLOW

Showerhead is limited to 2.5 gpm (9.5 L/min) Max

CARTRIDGE

1222 cartridge design

Nonmetallic/nonferrous and stainless steel materials

Accommodates back to back installations

STANDARDS

Third party certified to: CSA B-125, ASME A112.18.1M and ANSI A117.1, ASSE 1016, and all applicable requirements referenced therein

WARRANTY

Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

5 year warranty if used in commercial installations

ADA

VilletaPosi-Temp®

Single-Handle Shower Only Trim Kit

Models: TL2302, TL2302CP, TL2302PM

(Packed 1 per carton)

Discontinued Models:

TL2392, TL2392CP, TL2392P,

TL2392PM, TL2392W, TL2302W,

TL2302ST, TL2302P



2" CC (51mm)







1 7/8" IPS (48mm)

FACE OF STUD





MAX WALL













1/2" MIN. CC (13mm)







5/8" MIN IPS (16mm)





FINISHED WALL LINE











3/16"(typ) (5mm)







PLASTER GROUND

7" (178mm)



2-1/2" MAX.

1-1/2"

ESC. DIAM.







(63mm)

(38mm)





6'-6"



4-1/2"

C

(1981mm)

C

NOMINAL

(114mm)

L



L

DIRECTION



DIAMETER



OF HANDLE





ROTATION

1-3/8"

WALL

1-3/8"



OPENING



(35mm)





(35mm)





3-1/2" (89mm) MAX.





PLASTIC

2-13/16" C.C.

SHOWER

2-1/4" (57mm) MIN.

(72mm)

45" (1143mm)/



TUB/SHOWER



48" (1219mm)



SURROUND



32" (813mm)







TUB/SHOWER







AND TUB ONLY







FLOOR LINE

FLOOR LINE











THICK WALL APPLICATION

THIN WALL APPLICATION

CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Rev. 8/06

www.moen.com

Page 1
