DESCRIPTION

Metal construction with a chrome plated, LifeShine® Brushed Nickel, LifeShine® Brushed Bronze, Antique Nickel, Wrought Iron, Pewter, Oil Rubbed Bronze or Antique Bronze finish

OPERATION

Lever style handle operation

STANDARDS

Third party certified by to meet ASME A112.18.1/CSA B-125.1

and all applicable requirements referenced therein

WARRANTY

Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

5 year warranty if used in commercial installations

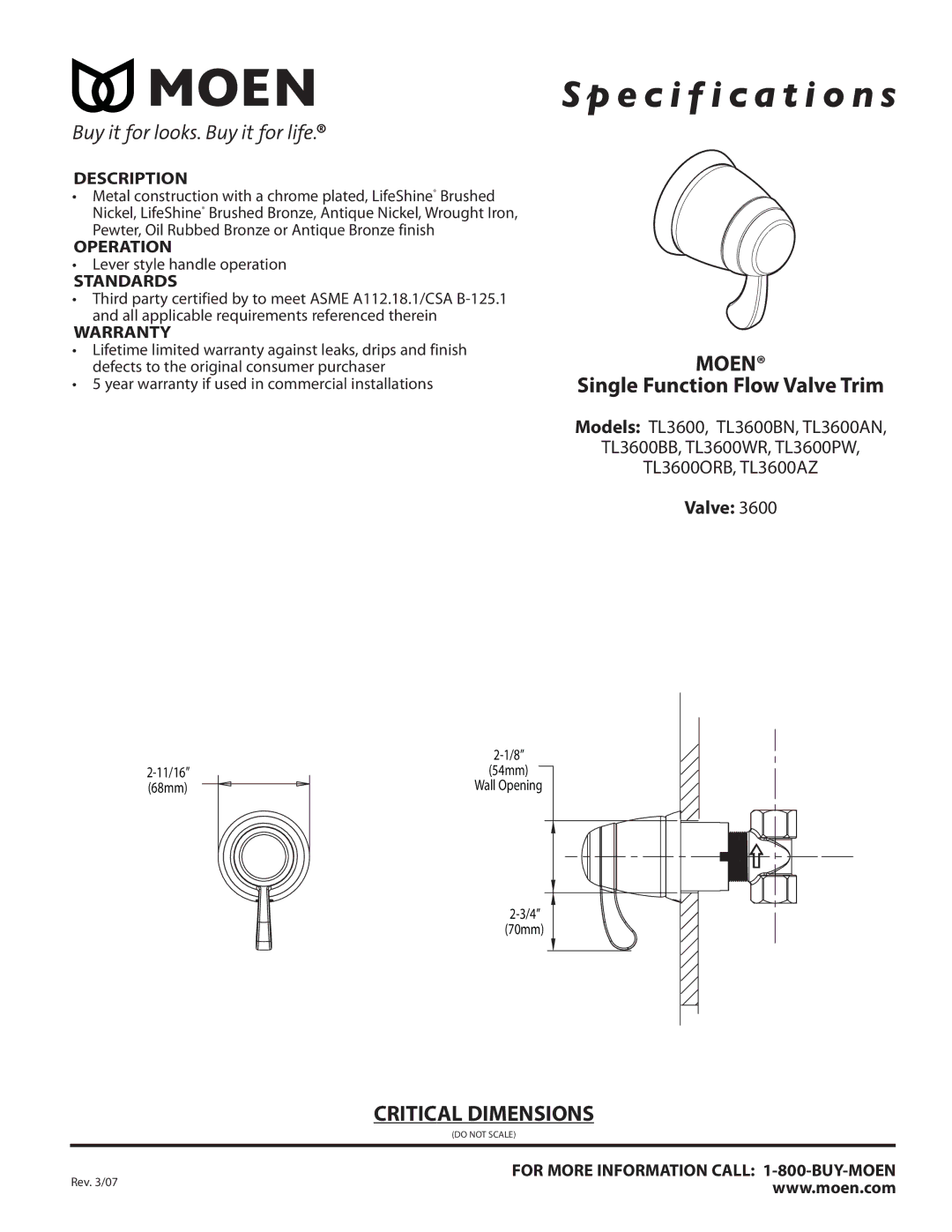

S p e c i f i c a t i o n s

MOEN®

Single Function Flow Valve Trim

Models: TL3600, TL3600BN, TL3600AN,

TL3600BB, TL3600WR, TL3600PW,

TL3600ORB, TL3600AZ

Valve: 3600



2-1/8”

2-11/16”

(54mm)

(68mm)

Wall Opening

2-3/4” (70mm)

CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Rev. 3/07

www.moen.com



Page 1
