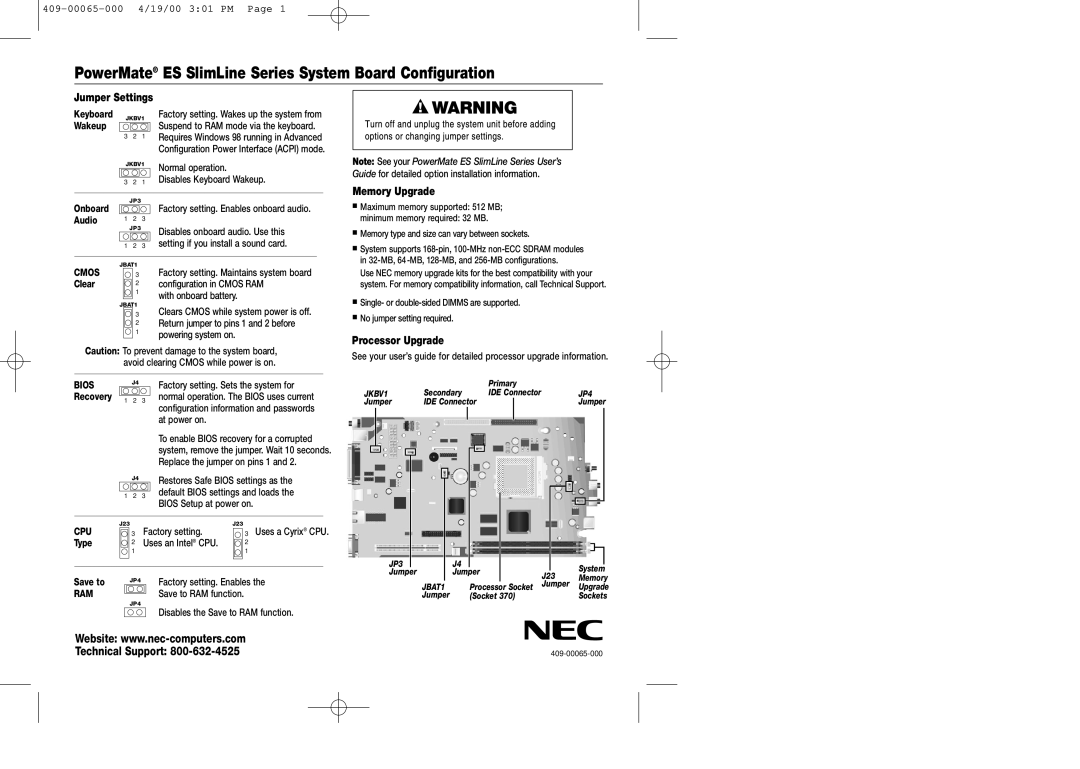

PowerMate® ES SlimLine Series System Board Configuration

Jumper Settings

Keyboard

JKBV1

Factory setting. Wakes up the system from

Wakeup

Suspend to RAM mode via the keyboard.







3

2 1

Requires Windows 98 running in Advanced







Configuration Power Interface (ACPI) mode.



JKBV1

Normal operation.







Disables Keyboard Wakeup.



3

2 1

Note: See your PowerMate ES SlimLine Series User’s Guide for detailed option installation information.

Onboard



JP3



Factory setting. Enables onboard audio.







Audio

1

2

3







JP3



Disables onboard audio. Use this

















setting if you install a sound card.



1

2

3

JBAT1

Memory Upgrade

Maximum memory supported: 512 MB;

minimum memory required: 32 MB.

Memory type and size can vary between sockets.

System supports 168-pin, 100-MHz non-ECC SDRAM modules

in 32-MB, 64-MB, 128-MB, and 256-MB configurations.

CMOS Clear

3

2

1

JBAT1

3

2

1

Factory setting. Maintains system board configuration in CMOS RAM

with onboard battery.

Clears CMOS while system power is off. Return jumper to pins 1 and 2 before powering system on.

Use NEC memory upgrade kits for the best compatibility with your

system. For memory compatibility information, call Technical Support.

Single- or double-sided DIMMS are supported.

No jumper setting required.

Processor Upgrade

Caution: To prevent damage to the system board, avoid clearing CMOS while power is on.

See your user’s guide for detailed processor upgrade information.

BIOS Recovery

J4

1 2 3

J4

1 2 3

Factory setting. Sets the system for normal operation. The BIOS uses current configuration information and passwords at power on.

To enable BIOS recovery for a corrupted system, remove the jumper. Wait 10 seconds. Replace the jumper on pins 1 and 2.

Restores Safe BIOS settings as the default BIOS settings and loads the BIOS Setup at power on.













Primary











JKBV1

Secondary

IDE Connector



JP4

Jumper

IDE Connector







Jumper











































































































J23



J23

3 Uses a Cyrix® CPU.

CPU





Factory setting.







3



Type





2

Uses an Intel® CPU.



2









1







1



































Save to





JP4



Factory setting. Enables the

RAM









Save to RAM function.









JP4















Disables the Save to RAM function.











JP3

J4























System

Jumper

Jumper

J23

Memory





JBAT1

Processor Socket Jumper

Upgrade

Jumper

(Socket 370)



Sockets

Website: www.nec-computers.com



Technical Support: 800-632-4525
