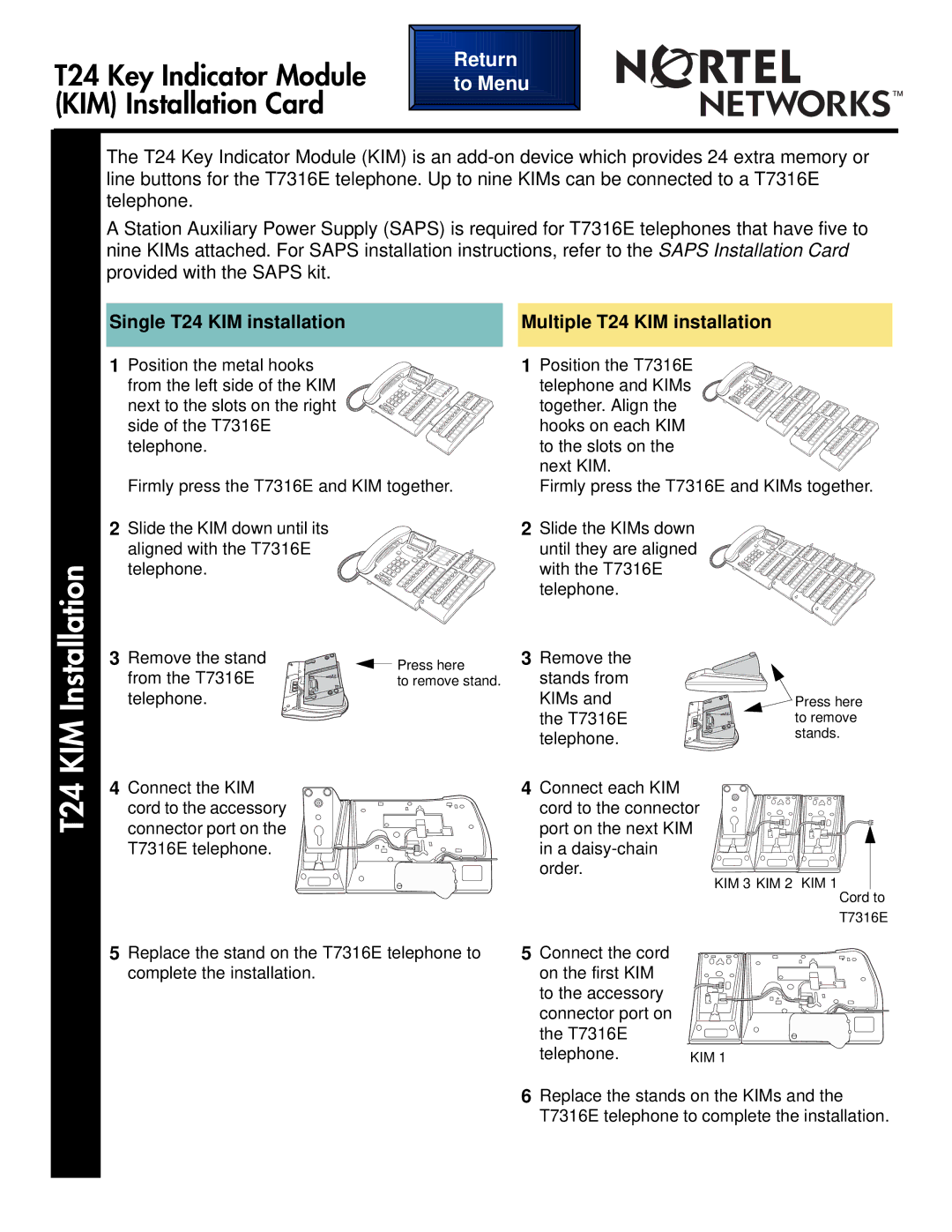

T24 Key Indicator Module (KIM) Installation Card

Return

to Menu

The T24 Key Indicator Module (KIM) is an add-on device which provides 24 extra memory or line buttons for the T7316E telephone. Up to nine KIMs can be connected to a T7316E telephone.

A Station Auxiliary Power Supply (SAPS) is required for T7316E telephones that have five to nine KIMs attached. For SAPS installation instructions, refer to the SAPS Installation Card provided with the SAPS kit.

T24 KIM Installation

Single T24 KIM installation

1Position the metal hooks

from the left side of the KIM next to the slots on the right side of the T7316E telephone.

Firmly press the T7316E and KIM together.

2Slide the KIM down until its

aligned with the T7316E telephone.

3 Remove the stand

Press here

from the T7316E

to remove stand.

telephone.



4Connect the KIM cord to the accessory

connector port on the T7316E telephone.

Multiple T24 KIM installation

1Position the T7316E

telephone and KIMs together. Align the hooks on each KIM to the slots on the next KIM.

Firmly press the T7316E and KIMs together.

2Slide the KIMs down

until they are aligned with the T7316E telephone.

3 Remove the stands from

KIMs and

Press here

the T7316E

to remove

telephone.

stands.

4 Connect each KIM



cord to the connector



port on the next KIM



in a daisy-chain



order.

KIM 3 KIM 2 KIM 1





Cord to



T7316E

5 Replace the stand on the T7316E telephone to

5

Connect the cord



complete the installation.



on the first KIM







to the accessory







connector port on







the T7316E







telephone.

KIM 1



6

Replace the stands on the KIMs and the





T7316E telephone to complete the installation.
