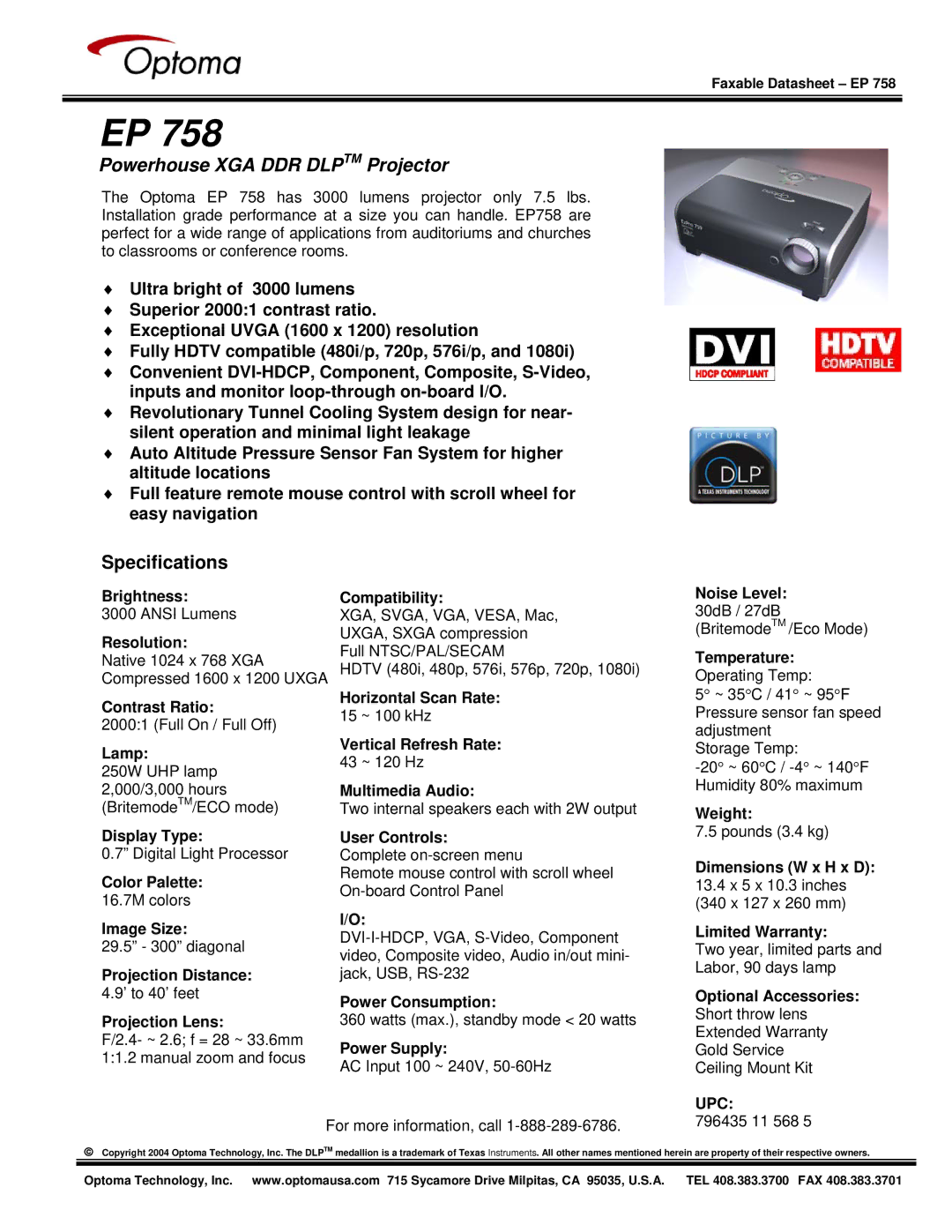

Faxable Datasheet – EP 758

EP 758

Powerhouse XGA DDR DLPTM Projector

The Optoma EP 758 has 3000 lumens projector only 7.5 lbs. Installation grade performance at a size you can handle. EP758 are perfect for a wide range of applications from auditoriums and churches to classrooms or conference rooms.

♦Ultra bright of 3000 lumens

♦Superior 2000:1 contrast ratio.

♦Exceptional UVGA (1600 x 1200) resolution

♦Fully HDTV compatible (480i/p, 720p, 576i/p, and 1080i)

♦Convenient DVI-HDCP, Component, Composite, S-Video, inputs and monitor loop-through on-board I/O.

♦Revolutionary Tunnel Cooling System design for near- silent operation and minimal light leakage

♦Auto Altitude Pressure Sensor Fan System for higher altitude locations

♦Full feature remote mouse control with scroll wheel for easy navigation

Specifications

Brightness:

3000 ANSI Lumens

Resolution:

Native 1024 x 768 XGA Compressed 1600 x 1200 UXGA

Contrast Ratio:

2000:1 (Full On / Full Off)

Lamp:

250W UHP lamp 2,000/3,000 hours (BritemodeTM/ECO mode)

Display Type:

0.7” Digital Light Processor

Color Palette:

16.7M colors

Image Size:

29.5” - 300” diagonal

Projection Distance:

4.9’ to 40’ feet

Projection Lens:

F/2.4- ~ 2.6; f = 28 ~ 33.6mm 1:1.2 manual zoom and focus

Compatibility:

XGA, SVGA, VGA, VESA, Mac, UXGA, SXGA compression Full NTSC/PAL/SECAM

HDTV (480i, 480p, 576i, 576p, 720p, 1080i)

Horizontal Scan Rate: 15 ~ 100 kHz

Vertical Refresh Rate:

43 ~ 120 Hz

Multimedia Audio:

Two internal speakers each with 2W output

User Controls:

Complete on-screen menu

Remote mouse control with scroll wheel On-board Control Panel

I/O:

DVI-I-HDCP, VGA, S-Video, Component video, Composite video, Audio in/out mini- jack, USB, RS-232

Power Consumption:

360 watts (max.), standby mode < 20 watts

Power Supply:

AC Input 100 ~ 240V, 50-60Hz

Noise Level:

30dB / 27dB

(BritemodeTM /Eco Mode)

Temperature:

Operating Temp:

5° ~ 35°C / 41° ~ 95°F Pressure sensor fan speed adjustment

Storage Temp:

-20° ~ 60°C / -4° ~ 140°F Humidity 80% maximum

Weight:

7.5 pounds (3.4 kg)

Dimensions (W x H x D):

13.4x 5 x 10.3 inches

(340 x 127 x 260 mm)

Limited Warranty:

Two year, limited parts and Labor, 90 days lamp

Optional Accessories: Short throw lens Extended Warranty Gold Service

Ceiling Mount Kit

UPC:

For more information, call 1-888-289-6786.

796435 11 568 5
