AJ9 (J9)

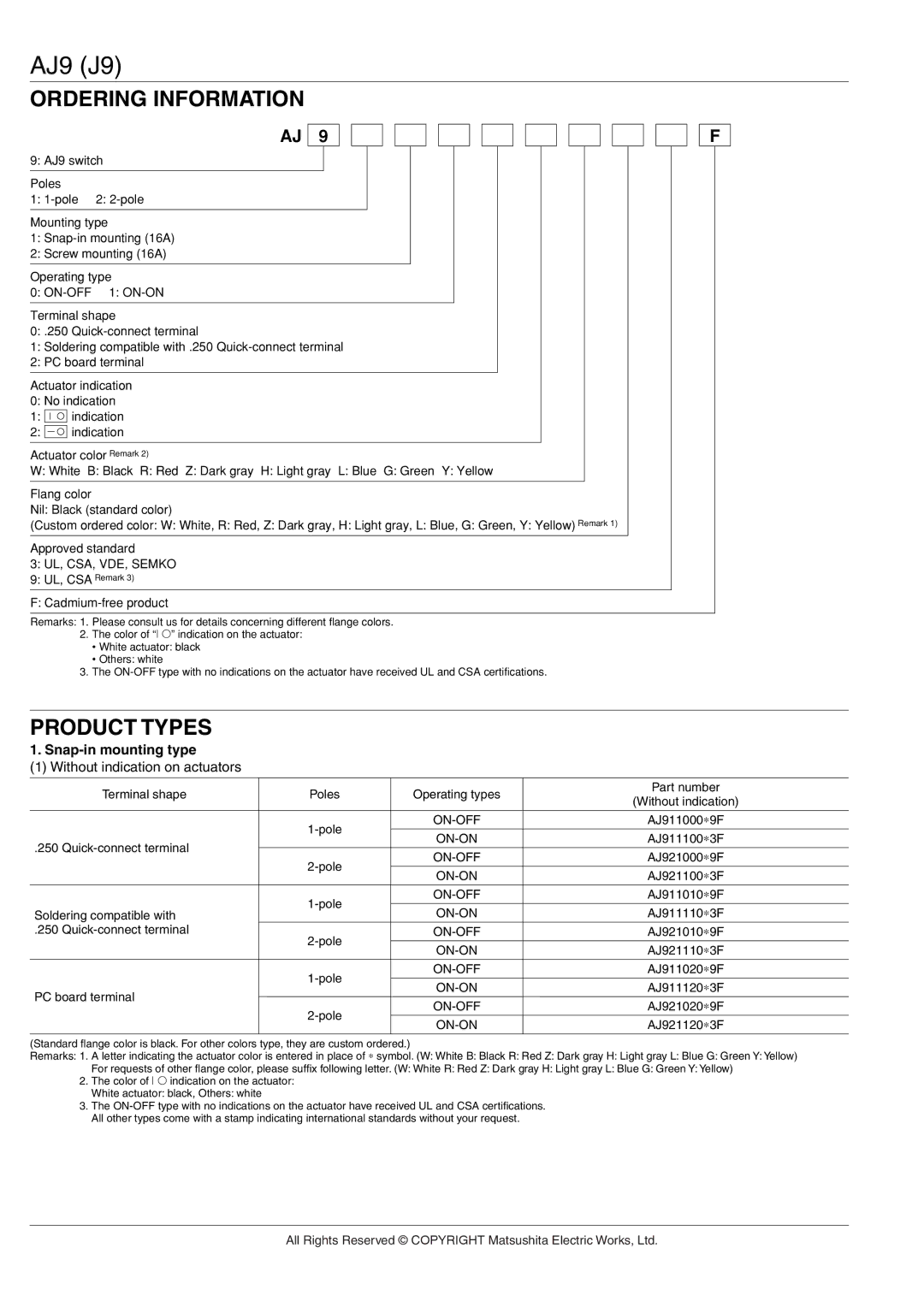

NOTES
1. Switch mounting
Mount the switch with the recommended panel mounting hole dimensions shown in the dimensions.
Contact us if you are considering using a panel of other than the recommended size and shape.
2.Regarding fastening lead wires to terminals
1) When connecting the tab terminals, use a .250
If they are skewed, the terminals will require excessive insertion force.
In addition, there is some variation in the insertion force required for different receptacles from different manufacturers, so confirm how much force is needed
under actual conditions.
Do not solder wires onto tab terminals.
2)With manual soldering: Complete the soldering connection work within 3 seconds with the tip of the soldering iron (60W soldering iron) at a temperature of 420°C or lower, and take care not to apply any force to the terminal area. Avoid touching the switch with soldering iron.
3)The terminals should be connected in such a way that they are not under constant stress from the connecting wires.
4)Terminal material is copper alloy which may discolor due to finger’s oil or after a long time. But that discoloration does not effect actual performance.
3. Resistance to chemicals
To clean the switch unit, use a neutral detergent diluted with water.
Do not use acidic or alkaline solvents as they may damage the switch. Furthermore, be careful not to get any of the detergent solution inside of the switch while cleaning it.
4. Environment
Avoid using and storing these switches in a location where they will be exposed to corrosive gases, silicon, or high dust levels, all of which can have an adverse effect on the contacts.
5.Take care not to drop the product as it may impair perfomance.
REFERENCE
1.Outline of UL1054 test Overload test AJ9: 20A 250V AC (Power factor 0.75 to 0.8)
50operation
Endurance test AJ9: 16A 250V AC
(Power factor 0.75 to 0.8)
6⋅103 operation
After testing, temperature rise of terminals should be less than 30°C and no abnormality should be observed in characteristics.
2.Outline of
50 to 100ms
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24A |
|
|
|
|
|
|
|
|
|
|
| J9: 16A |
|
| AC: 250V | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| (Power factor 0.6) | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
| 2 sec. |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
|
|
|
|
|
|
|
|
|
| 4 sec. |
|
|
|
|
|
| |||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
