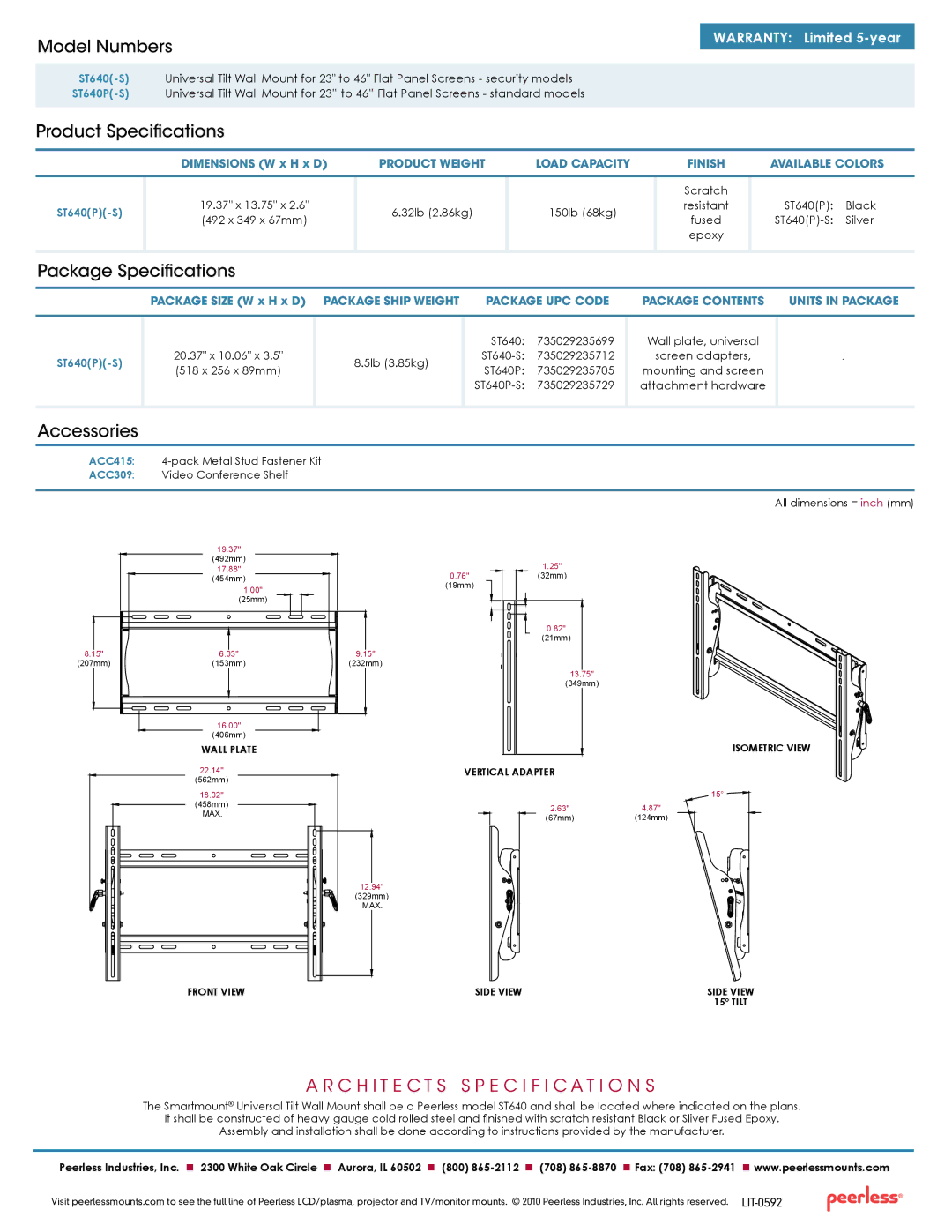

Model Numbers
WARRANTY: Limited 5-year
Product Specifications
| Dimensions (W x H x D) | PRODUCT WEIGHT | Load Capacity | FINISH | AVAILABLE COLORS | ||
|
|
|
|
|
|
| |
|
|
|
| Scratch |
|
| |
| 19.37" x 13.75" x 2.6" | 6.32lb (2.86kg) | 150lb (68kg) | resistant | ST640(P): | Black | |
(492 x 349 x 67mm) | fused | Silver | |||||
|
|
| |||||
|
|
|
| epoxy |
|
| |
|
|
|
|
|
|
| |
Package Specifications
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT | PAcKAGE UPC CODE | PACKAGE CONTENTS UNITS IN PACKAGE |
|
|
|
20.37" x 10.06" x 3.5" (518 x 256 x 89mm)
8.5lb (3.85kg)
ST640: 735029235699
Wall plate, universal
screen adapters,
mounting and screen attachment hardware
1
Accessories
ACC415:
ACC309: Video Conference Shelf
All dimensions = inch (mm)
| 19.37" |
|
|
|
| (492mm) |
| 1.25" |
|
| 17.88" |
|
| |
| 0.76" | (32mm) |
| |
| (454mm) |
| ||
| (19mm) |
|
| |
| 1.00" |
|
| |
|
|
|
| |
| (25mm) |
|
|
|
|
|
| 0.82" |
|
|
|
| (21mm) |
|
8.15" | 6.03" | 9.15" |
|
|
(207mm) | (153mm) | (232mm) |
|
|
|
|
| 13.75" |
|
|
|
| (349mm) |
|
| 16.00" |
|
|
|
| (406mm) |
|
|
|
| wALL PLAte |
|
| ISOmetrIC VIew |
| 22.14" | VertICAL AdAPter |
| |
| (562mm) |
|
|
|
| 18.02" |
|
| 15° |
| (458mm) |
| 2.63" | 4.87" |
| MAX. |
| ||
|
| (67mm) | (124mm) | |
|
|
| ||
|
| 12.94" |
|
|
|
| (329mm) |
|
|
|
| MAX. |
|
|
FrONt VIew | SIde VIew | SIde VIew |
|
| 15° tILt |
A R C H I T E C T S S P E C I F I C A T I O N S
The Smartmount® Universal Tilt Wall Mount shall be a Peerless model ST640 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel and finished with scratch resistant Black or Sliver Fused Epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800)
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
