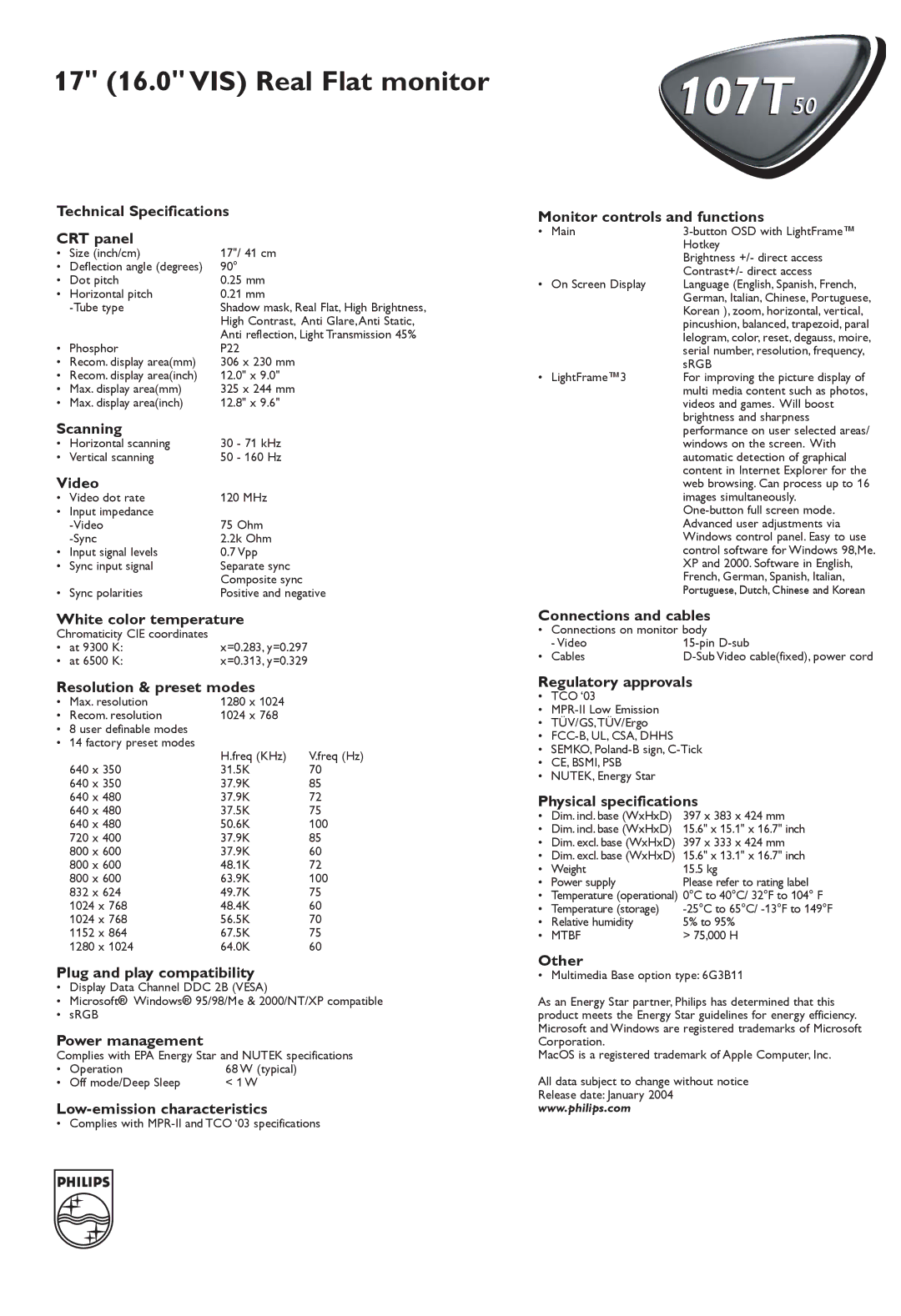

17" (16.0" VIS) Real Flat monitor

Technical Specifications

CRT panel

Size (inch/cm)

17"/ 41 cm

Deflection angle (degrees)

90°

Dot pitch

0.25 mm

Horizontal pitch

0.21 mm



-Tube type

Shadow mask, Real Flat, High Brightness,





High Contrast, Anti Glare,Anti Static,





Anti reflection, Light Transmission 45%

Phosphor

P22

Recom. display area(mm)

306 x 230 mm

Recom. display area(inch)

12.0" x 9.0"

Max. display area(mm)

325 x 244 mm

Max. display area(inch)

12.8" x 9.6"

Scanning

Horizontal scanning

30 - 71 kHz

Vertical scanning

50 - 160 Hz

Video

Video dot rate

120 MHz

Input impedance





-Video

75 Ohm



-Sync

2.2k Ohm

Input signal levels

0.7 Vpp

Sync input signal

Separate sync





Composite sync

Sync polarities

Positive and negative

White color temperature

Chromaticity CIE coordinates

at 9300 K:

x=0.283, y=0.297

at 6500 K:

x=0.313, y=0.329

Resolution & preset modes

Max. resolution

1280 x 1024

Recom. resolution

1024 x 768

8 user definable modes

14 factory preset modes



H.freq (KHz)

V.freq (Hz)

640 x 350

31.5K

70

640 x 350

37.9K

85

640 x 480

37.9K

72

640 x 480

37.5K

75

640 x 480

50.6K

100

720 x 400

37.9K

85

800 x 600

37.9K

60

800 x 600

48.1K

72

800 x 600

63.9K

100

832 x 624

49.7K

75

1024 x 768

48.4K

60

1024 x 768

56.5K

70

1152 x 864

67.5K

75

1280 x 1024

64.0K

60

Plug and play compatibility

Display Data Channel DDC 2B (VESA)

Microsoft® Windows® 95/98/Me & 2000/NT/XP compatible

sRGB

Power management

Complies with EPA Energy Star and NUTEK specifications

Operation

68 W (typical)

Off mode/Deep Sleep

< 1 W

Low-emission characteristics

107T50

Monitor controls and functions

Main

3-button OSD with LightFrame™





Hotkey





Brightness +/- direct access





Contrast+/- direct access

On Screen Display

Language (English, Spanish, French,





German, Italian, Chinese, Portuguese,





Korean ), zoom, horizontal, vertical,





pincushion, balanced, trapezoid, paral





lelogram, color, reset, degauss, moire,





serial number, resolution, frequency,





sRGB

LightFrame™3

For improving the picture display of





multi media content such as photos,





videos and games. Will boost





brightness and sharpness





performance on user selected areas/





windows on the screen. With





automatic detection of graphical





content in Internet Explorer for the





web browsing. Can process up to 16





images simultaneously.





One-button full screen mode.





Advanced user adjustments via





Windows control panel. Easy to use





control software for Windows 98,Me.





XP and 2000. Software in English,





French, German, Spanish, Italian,





Portuguese, Dutch, Chinese and Korean

Connections and cables

Connections on monitor body



- Video

15-pin D-sub

Cables

D-Sub Video cable(fixed), power cord

Regulatory approvals

TCO ‘03

MPR-II Low Emission

TÜV/GS,TÜV/Ergo

FCC-B, UL, CSA, DHHS

SEMKO, Poland-B sign, C-Tick

CE, BSMI, PSB

NUTEK, Energy Star

Physical specifications

Dim. incl. base (WxHxD)

397 x 383 x 424 mm

Dim. incl. base (WxHxD)

15.6" x 15.1" x 16.7" inch

Dim. excl. base (WxHxD)

397 x 333 x 424 mm

Dim. excl. base (WxHxD)

15.6" x 13.1" x 16.7" inch

Weight

15.5 kg

Power supply

Please refer to rating label

Temperature (operational) 0°C to 40°C/ 32°F to 104° F

Temperature (storage)

-25°C to 65°C/ -13°F to 149°F

Relative humidity

5% to 95%

MTBF

> 75,000 H

Other

• Multimedia Base option type: 6G3B11

As an Energy Star partner, Philips has determined that this product meets the Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation.

MacOS is a registered trademark of Apple Computer, Inc.

All data subject to change without notice

Release date: January 2004

www.philips.com

• Complies with MPR-II and TCO ‘03 specifications

Page 2
Image 2
Philips 107T50 Technical Specifications CRT panel, Scanning, Video, White color temperature, Resolution & preset modes

107T50 specifications

The Philips 107T50 is a notable monitor from the early 2000s that made waves in the world of computer displays. As a 17-inch CRT (cathode-ray tube) monitor, it was designed to provide users with a balanced combination of performance, quality, and affordability. In an era dominated by LCD technology, the 107T50 stood out by offering certain features that appealed to a significant audience.

One of the main features of the Philips 107T50 is its excellent color reproduction. It boasts a maximum resolution of 1280 x 1024 pixels, making it well-suited for various computer applications, including productivity tasks, gaming, and multimedia. The monitor's high refresh rate of 85Hz provided a smooth visual experience, minimizing flicker and eye strain during prolonged usage.

In terms of display technology, the Philips 107T50 employs a flat screen design that reduces distortion and ensures sharper images compared to traditional curved screens. This flat design, along with the monitor's anti-glare coating, helps to enhance visibility in brightly lit environments, making it a practical choice for office settings and home use alike.

Another characteristic that sets the Philips 107T50 apart is its ergonomic design. The monitor is equipped with tilt features, enabling users to adjust the angle for optimal viewing comfort. With a compact footprint, it can fit comfortably within most workspaces, while still offering a spacious viewing area.

Connectivity options were also a highlight of the Philips 107T50. The monitor typically featured a VGA input, allowing it to easily connect to a wide variety of computers, making it a versatile choice for both desktop and educational environments.

Durability is another hallmark of the Philips 107T50. CRT monitors are known for their robust design and longevity, often lasting several years beyond their initial use. This makes the 107T50 not only a reliable choice for consumers but also a cost-effective one.

In summary, the Philips 107T50 is a classic monitor that showcases the strengths of CRT technology. With its solid color performance, ergonomic features, and durable design, it remains a memorable part of computer history, particularly for those who experienced the transition from CRT to LCD. While technology has evolved significantly since its release, the 107T50 is a reminder of a time when monitors were built to last and prioritize user comfort.
