19 inch CRT Monitor

Commercial Specifications









Picture/Display



Convenience





Display Screen Type

Real Flat Picture Tube

Convenience Enhancements

Menu Languages,

Panel Size

19"/ 46 cm







On-screen Display

Phosphor

P22

Monitor Controls



Brightness Control,

Recommended Display Area

355 x 265 mm







Contrast Control,





(14" x 10.4")







Left/Right, Menu,

Dot Pitch

0.25 mm







LightFrame Hotkey,

Horizontal Dot Pitch

0.21 mm







Power On/Off,

• White Chromaticity, 5500º K

x = 0.332 / y = 0.347







Up/Down

• White Chromaticity, 6500º K

x = 0.313 / y = 0.329

OSD Languages



English, French, German,

• White Chromaticity, 9300º K

x = 0.283 / y = 0.297







Italian, Simplified Chinese,

Maximum Resolution

1920 x 1440 @ 64 Hz







Spanish, Portuguese,

Recommended Resolution

1600 x 1200 @ 75 Hz







Korean

Factory Preset Modes

8 modes

Plug & Play Compatibility



DDC 2B, sRGB,





640 x 480 @ 85 Hz,







Windows 98/ME/





720 x 400 @ 70 Hz,





2000/XP





800 x 600 @ 85 Hz,

Regulatory Approvals



E2000, NUTEK,





1024 x 768 @ 85 Hz,







Energy Star, CE Mark,





1152 x 864 @ 70 Hz,







FCC-B, UL, CSA, SEMKO,





1280 x 1024 @ 75 Hz,







TCO'03, TÜV/GS,





1280 x 1024 @ 85 Hz,







TÜV Ergo, FDA, BSMI,





1600 x 1200 @ 75 Hz







GOST, C-Tick

Factory Preload Modes

24 modes

Swivel



+/- 90°

Video Dot Rate

250 MHz

Tilt



-5° to 25°

• Horizontal Scanning Frequency 30 - 97 KHz









Vertical Scanning Frequency

50 - 160 Hz

Accessories





Recommended Refresh Rate

75 Hz





Included Accessories



AC Power Cord

Screen Enhancements

Anti-glare Polarizer,















Anti-Reflection, Anti-Static,

User Manual



Yes





High Brightness,

Dimensions









High Contrast





LightFrame™

Yes

• Depth (with base)



449 mm

sRGB

Yes

• Height (with base)



433 mm

GTF

Yes

• Width (with base)



440 mm







• Temperature Range (Operation)

0°C to 35°C

Connectivity



• Temperature Range (Storage)

-25°C to 65°C

Cables

D-sub Video Cable,

• Weight



20 kg













Power Cord









• Sync Input Impedance (ohm)

2.2 k

Power





• Video Input Impedance (ohm)

75

Comply With

E2000, Energy Star, NUTEK

• Video Input Signal Levels

0.7 Vpp

Consumption

70 W

• Video Sync Input Signal

Composite Sync,

Off Mode

1 W







Separate Sync,







Power LED Indicator

Off, Amber;





Sync on Green









Operation, Green

Video Sync Polarities

Positive and Negative





Power Supply

Built-in

Cable Connection

AC Power in









Product Highlights

LightFrame™

An intelligent and revolutionary technology for enhancing monitor's brightness, sharpness, contrast, and color. Images enhanced by LightFrame™ are lively, realistic, clear, attractive and colorful.

UXGA, 1600 x 1200 resolution

For graphics monitors, the screen resolution signifies the number

of dots (pixels) on the entire screen. For example, a 1600-by-1200 pixel screen is capable of displaying 1600 distinct dots on each

of 1200 lines, or about 2 million pixels. This ensures a better display performance and accurate color display effect.

High-bright, high-contrast tube

A CRT tube designed to increase display brightness and contrast by increasing the CRT ray gun's beam current.

Real flat CRT display

Philips advanced flat CRT technology that minimizes glare while reducing reflection and distortion, providing display quality superior to that of conventional CRTs.

sRGB ready

Calibrated RGB that is optimized for the vast majority of computer peripherals, monitors, operating systems and browsers, allowing accurate color mapping with very little data overhead.

Platform compatibility

The ability to work with a variety of platforms; Philips monitors are compatible with PCs and workstations by employing a VGA connection and connect with Macintoshes.

OSD On-Screen-Display control

An on-screen panel for adjusting a monitor. The OSD is used for contrast, brightness, horizontal and vertical positioning and other monitor adjustments.

Easy plug and play

The ability of display device to plug in a PC and operate without requiring user intervention to adjust complicated settings.

Large viewing area

The visible portion of a monitor screen available to display data.

Lead free

Lead-free display products are designed and produced in compliance with strict European Community Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm health and the environment.

Trademarks owned by Royal Philips Electronics

2004 © Royal Philips Electronics - All rights reserved As an Energy Star partner, Philips has determined that this product meets the Energy Star guidelines for energy efficiency.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

All data subject to change without notice Release date: November 2004, v.2 www.philips.com

Energy efficiency

Reduction of the electrical power required to operate a device to achieve real savings.

TCO compliance

A TCO (Swedish confederation of Professional Employees) standard even more stringent than MPR-II for safety and ergonomics, especially concerning alternating electric fields (AEF).

Energy Star Partner

Power conservation requirements set forth by the Environmental Protection Agency of the U.S. government.

Flame retardant case

A system of limiting accidental fires by engineering flame retardants into the monitor's case.

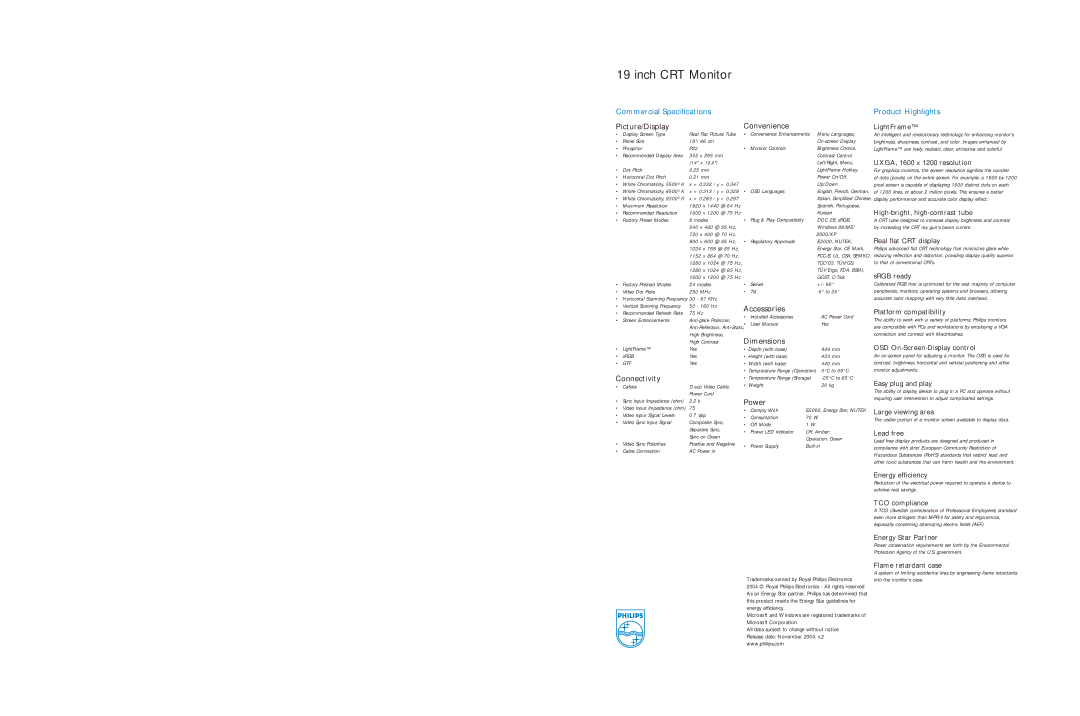

Page 2
