Philips CID3292/00 quick start Install the car audio, Turn on, Set date and time, Adjust screen

Register your product and get support at

CID3292

www.philips.com/welcome

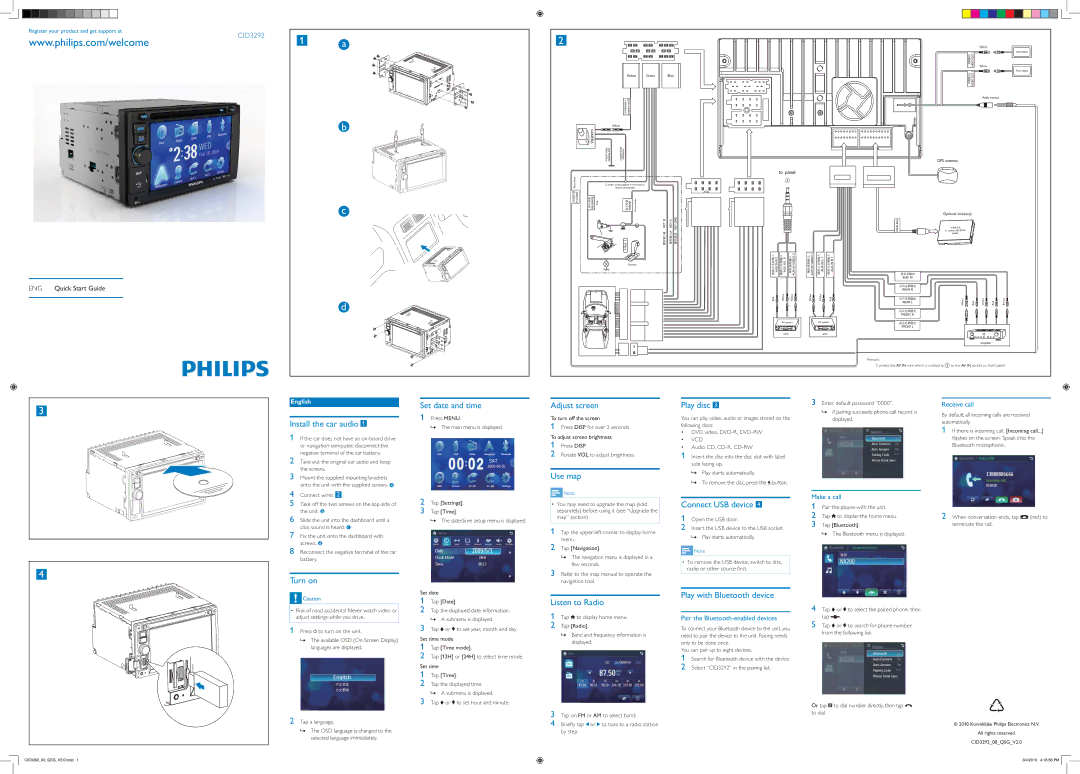

ENG Quick Start Guide

1a

b

c

d

2

Yellow Green Blue

Yellow

Blue/white	Connect to the positive (+) terminal of
	reverse driving light
Pink		Green/white

Gearbox

Yellow

Rear display

Yellow

Rear display

Radio antenna

GPS antenna

c

Optional accessory

Red	White	Yellow	Yellow	White	Red	White	Red	White	Red	Brown
	AV system			AV system

AUXAUX

Amplifier

Remark:

Connect the AV IN wire which is marked as c to the AV IN socket on front panel.

3

4

English

Install the car audio 1

1If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.

2Take out the original car audio and keep the screws.

3Mount the supplied mounting brackets onto the unit with the supplied screws. a

4Connect wires 2 .

5Take off the two screws on the top side of the unit. b

6Slide the unit into the dashboard until a click sound is heard. c

7Fix the unit onto the dashboard with screws. d

8Reconnect the negative terminal of the car battery.

Turn on

Caution

‡Risk of road accidents! Never watch video or adjust settings while you drive.

1Press to turn on the unit.

»The available OSD (On-Screen Display) languages are displayed.

Set date and time

1Press MENU.

» The main menu is displayed.

2Tap [Settings].

3Tap [Time].

» The date/time setup menu is displayed.

Set date

1Tap [Date].

2Tap the displayed date information. » A submenu is displayed.

3Taporto set year, month and day.

Set time mode

1Tap [Time mode].

2Tap [12H] or [24H] to select time mode.

Set time

1Tap [Time].

2Tap the displayed time.

» A submenu is displayed.

Adjust screen

To turn off the screen

1Press DISP for over 2 seconds

To adjust screen brightness

1Press DISP.

2Rotate VOL to adjust brightness.

Use map

Note

‡You may need to upgrade the map (sold separately) before using it (see “Upgrade the map” section)

1Tap the upper left corner to display home menu.

2Tap [Navigation].

»The navigation menu is displayed in a few seconds.

3Refer to the map manual to operate the navigation tool.

Listen to Radio

1Tap to display home menu.

2Tap [Radio].

»Band and frequency information is displayed.

Play disc 3

You can play video, audio or images stored on the following discs:

‡ DVD video, DVD-R, DVD-RW ‡ VCD

‡ Audio CD, CD-R, CD-RW

1Insert the disc into the disc slot with label side facing up.

»Play starts automatically.

»To remove the disc, press thebutton.

Connect USB device 4

1Open the USB door.

2Insert the USB device to the USB socket. » Play starts automatically.

Note

‡To remove the USB device, switch to disc,

UDGLRRURWKHUVRXUFHÀUVW

Play with Bluetooth device

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once.

You can pair up to eight devices.

1Search for Bluetooth device with the device.

2Select “CID3292” in the pairing list.

3Enter default password “0000”.

»if pairing succeeds. phone call record is displayed.

Make a call

1Pair the phone with the unit.

2Tapto display the home menu.

3Tap [Bluetooth].

» The Bluetooth menu is displayed.

4Taporto select the paired phone, then tap.

5Taporto search for phone number from the following list:

Receive call

By default, all incoming calls are received automatically.

1If there is incoming call, [Incoming call...]

ÁDVKHVRQWKHVFUHHQ6SHDNLQWRWKH

Bluetooth microphone.

2When conversation ends, tap(red) to terminate the call.

CID3292_00_QSG_V2.0.indd 1

2Tap a language.

»The OSD language is changed to the selected language immediately.

3Taporto set hour and minute.

3		Or tap	to dial number directly, then tap
	Tap on FM or AM to select band:	to dial.
4	%ULHÁ\WDS or to tune to a radio station		© 2010 Koninklijke Philips Electronics N.V.
	by step.		All rights reserved.
