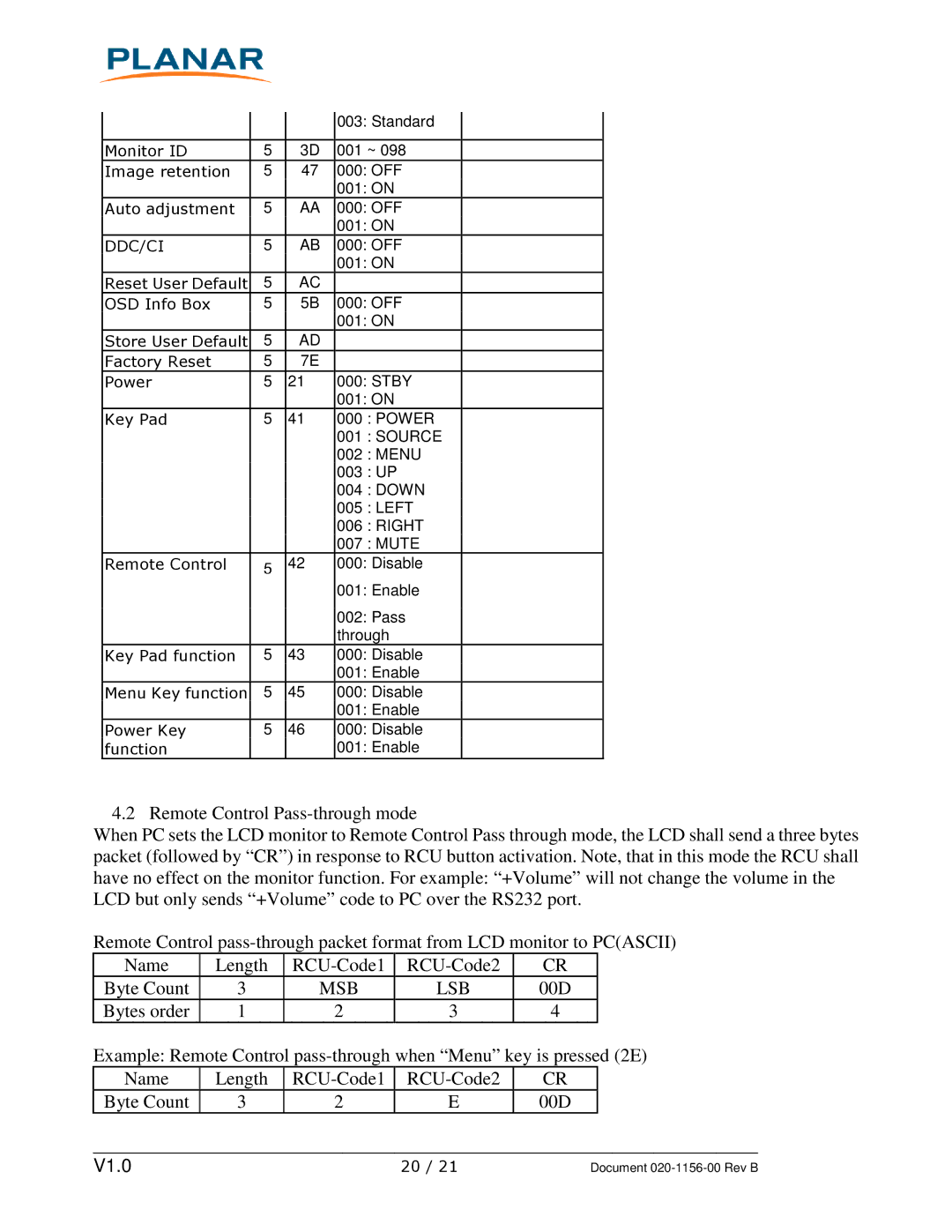

			003: Standard
Monitor ID	5	3D	001 ~ 098
Image retention	5	47	000: OFF
			001: ON
Auto adjustment	5	AA	000: OFF
			001: ON
DDC/CI	5	AB	000: OFF
			001: ON
Reset User Default	5	AC
OSD Info Box	5	5B	000: OFF
			001: ON
Store User Default	5	AD
Factory Reset	5	7E
Power	5	21	000: STBY
			001: ON
Key Pad	5	41	000	: POWER
			001	: SOURCE
			002	: MENU
			003	: UP
			004	: DOWN
			005	: LEFT
			006	: RIGHT
			007	: MUTE
Remote Control		42	000: Disable
			001: Enable
			002: Pass
			through
Key Pad function		43	000: Disable
			001: Enable
Menu Key function		45	000: Disable
			001: Enable
Power Key	5	46	000: Disable
function			001: Enable

4.2 Remote Control Pass-through mode

When PC sets the LCD monitor to Remote Control Pass through mode, the LCD shall send a three bytes packet (followed by “CR”) in response to RCU button activation. Note, that in this mode the RCU shall have no effect on the monitor function. For example: “+Volume” will not change the volume in the LCD but only sends “+Volume” code to PC over the RS232 port.

Remote Control pass-through packet format from LCD monitor to PC(ASCII)

Name	Length	RCU-Code1	RCU-Code2	CR
Byte Count	3	MSB	LSB	00D
Bytes order	1	2	3	4

Example: Remote Control pass-through when “Menu” key is pressed (2E)

Name	Length	RCU-Code1	RCU-Code2	CR
Byte Count	3	2	E	00D

________________________________________________________________

V1.0 20 / 21 Document 020-1156-00 Rev B
