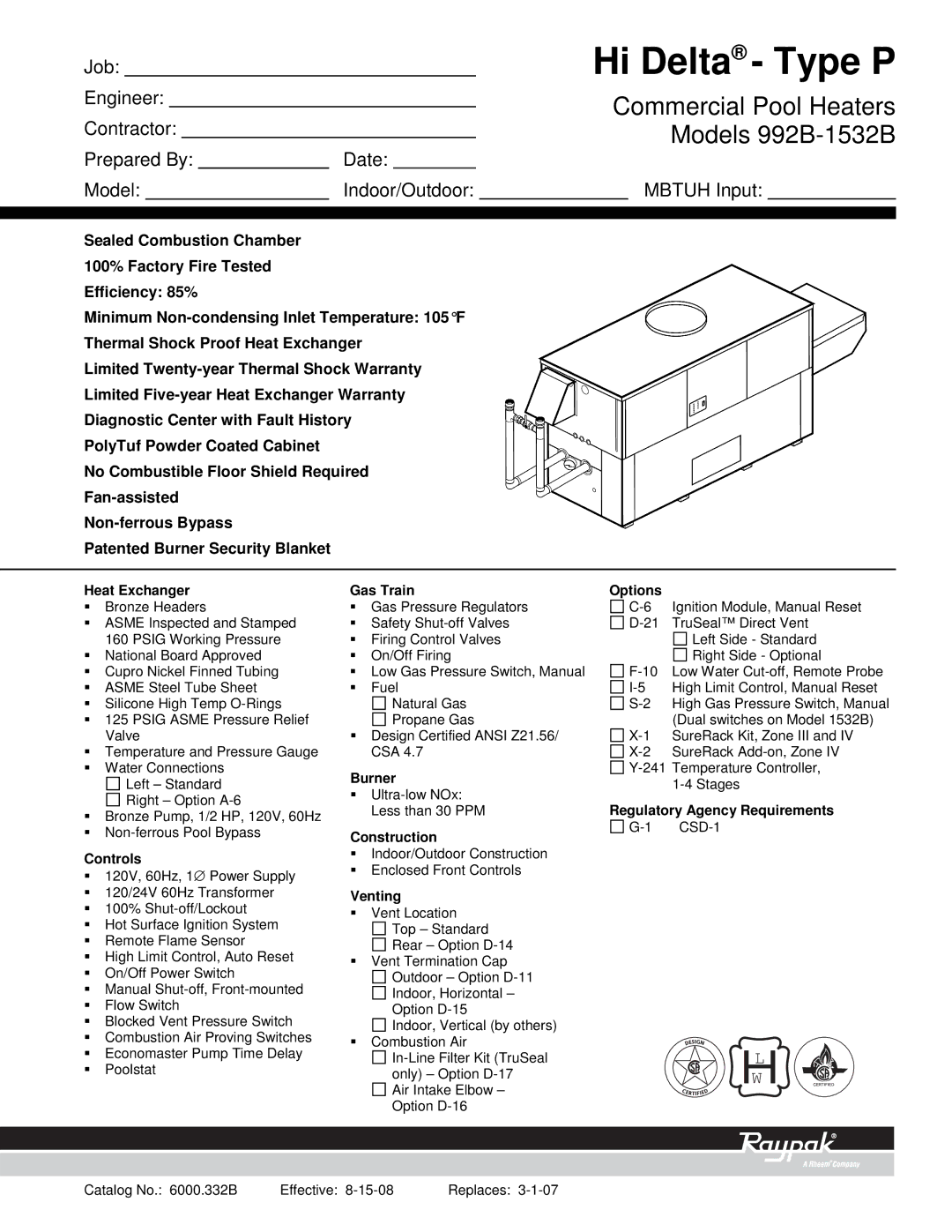

Job:		Hi Delta® - Type P
Engineer:		Commercial Pool Heaters
Contractor:
			Models 992B-1532B
Prepared By:	Date:
Model:	Indoor/Outdoor:		MBTUH Input:

Sealed Combustion Chamber

100% Factory Fire Tested

Efficiency: 85%

Minimum Non-condensing Inlet Temperature: 105°F

Thermal Shock Proof Heat Exchanger

Limited Twenty-year Thermal Shock Warranty

Limited Five-year Heat Exchanger Warranty

Diagnostic Center with Fault History

PolyTuf Powder Coated Cabinet

No Combustible Floor Shield Required

Fan-assisted

Non-ferrous Bypass

Patented Burner Security Blanket

Heat Exchanger

￿Bronze Headers

￿ASME Inspected and Stamped 160 PSIG Working Pressure

￿National Board Approved

￿Cupro Nickel Finned Tubing

￿ASME Steel Tube Sheet

￿Silicone High Temp O-Rings

￿125 PSIG ASME Pressure Relief Valve

￿Temperature and Pressure Gauge

￿Water Connections

Left – Standard

Right – Option A-6

￿Bronze Pump, 1/2 HP, 120V, 60Hz

￿Non-ferrous Pool Bypass

Controls

￿120V, 60Hz, 1∅ Power Supply

￿120/24V 60Hz Transformer

￿100% Shut-off/Lockout

￿Hot Surface Ignition System

￿Remote Flame Sensor

￿High Limit Control, Auto Reset

￿On/Off Power Switch

￿Manual Shut-off, Front-mounted

￿Flow Switch

￿Blocked Vent Pressure Switch

￿Combustion Air Proving Switches

￿Economaster Pump Time Delay

￿Poolstat

Gas Train

￿Gas Pressure Regulators

￿Safety Shut-off Valves

￿Firing Control Valves

￿On/Off Firing

￿Low Gas Pressure Switch, Manual

￿Fuel

Natural Gas

Propane Gas

￿Design Certified ANSI Z21.56/ CSA 4.7

Burner

￿Ultra-low NOx: Less than 30 PPM

Construction

￿Indoor/Outdoor Construction

￿Enclosed Front Controls

Venting

￿Vent Location

Top – Standard

Rear – Option D-14

￿Vent Termination Cap

Outdoor – Option D-11

Indoor, Horizontal –

Option D-15

Indoor, Vertical (by others)

￿Combustion Air

In-Line Filter Kit (TruSeal only) – Option D-17

Air Intake Elbow – Option D-16

Options
C-6	Ignition Module, Manual Reset
D-21	TruSeal™ Direct Vent
	Left Side - Standard
	Right Side - Optional
F-10	Low Water Cut-off, Remote Probe
I-5	High Limit Control, Manual Reset
S-2	High Gas Pressure Switch, Manual
	(Dual switches on Model 1532B)
X-1	SureRack Kit, Zone III and IV
X-2	SureRack Add-on, Zone IV
Y-241	Temperature Controller,
	1-4 Stages
Regulatory Agency Requirements
G-1	CSD-1

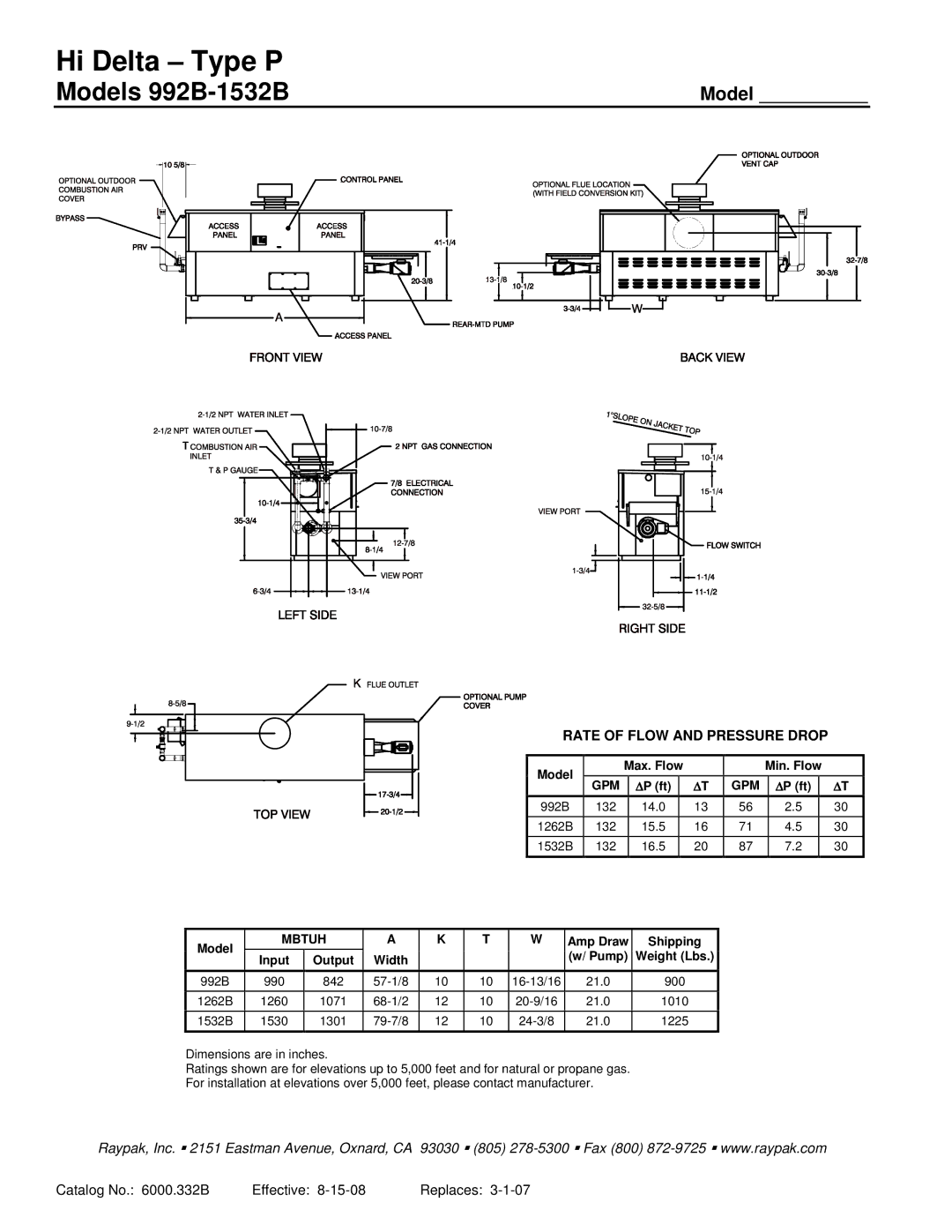

L

W

Catalog No.: 6000.332B Effective: 8-15-08 Replaces: 3-1-07
