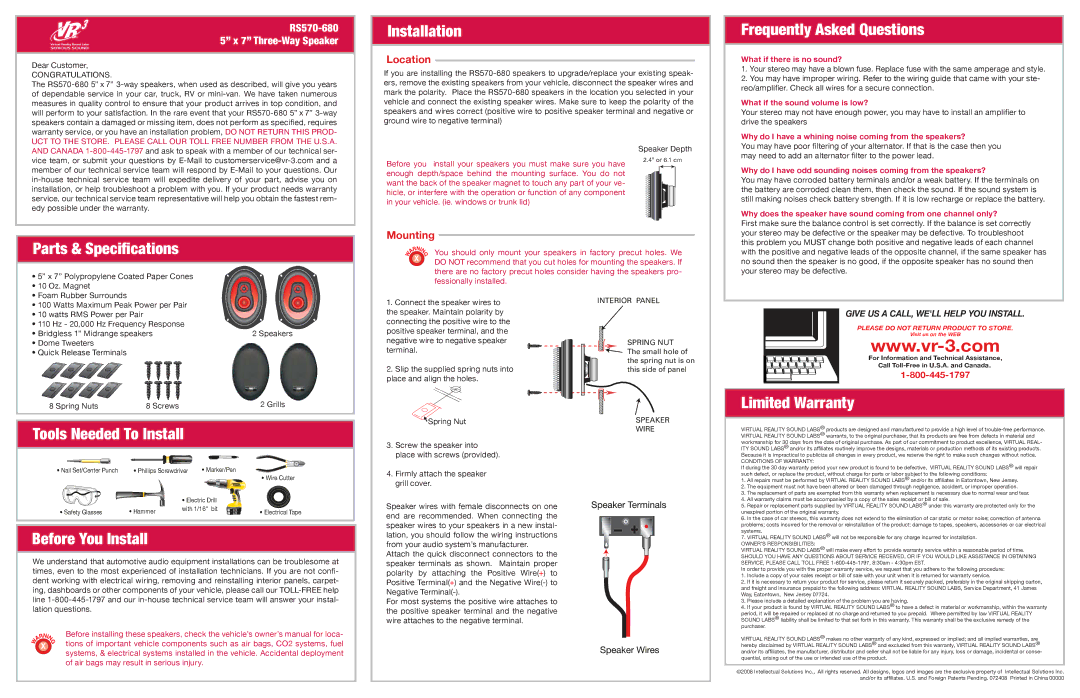

Roadmaster RS570-680 specifications

• Nail Set/Center Punch • Marker/Pen

• Safety Glasses • Electrical Tape

• Phillips Screwdriver

• Hammer

• Wire Cutter

• Electric Drill

with 1/16" bit

INTERIOR PANEL

SPRING NUT

The small hole of

the spring nut is on

this side of panel

SPEAKER

WIRE

Sprin

Nut

GIVE US A CALL, WE'LL HELP YOU INSTALL.

1-800-445-1797

PLEASE DO NOT RETURN PRODUCT TO STORE.

Visit us on the WEB

www.vr-3.com

For Information and Technical Assistance,

Call Toll-Free in U.S.A. and Canada.

Parts & Speciﬁ cations

• 5” x 7” Polypropylene Coated Paper Cones

• 10 Oz. Magnet

• Foam Rubber Surrounds

• 100 Watts Maximum Peak Power per Pair

• 10 watts RMS Power per Pair

• 110 Hz - 20,000 Hz Frequency Response

• Bridgless 1” Midrange speakers

• Dome Tweeters

• Quick Release Terminals

RS570-680

5” x 7” Three-Way Speaker

Dear Customer,

CONGRATULATIONS.

The RS570-680 5” x 7” 3-way speakers, when used as described, will give you year s

of dependable service in your car, truck, RV or mini-van. We have taken numerous

measures in quality control to ensur e that your product arrives in top condition, and

will perform to your satisfaction. In the r are event that your RS570-680 5” x 7” 3-way

speakers contain a damaged or miss ing item, does not perform as spe ciﬁ ed, requires

warranty ser vice, or you h ave an install ation probl em, DO NOT RETU RN THIS PROD-

UCT TO THE STORE. PLEASE CALL OUR TOLL FREE NUMBER FROM THE U.S.A .

AND CANADA 1-800-445-1797 and ask to speak with a member of our technica l ser-

vice team, or submit your questions by E-Mail to customerservice@vr-3.com and a

member of our technical service te am will respond by E-Mail to your questions. Our

in-house technical service tea m will expedite delivery of your part, advise you on

installation, or help troubleshoot a pr oblem with you. If your product needs warranty

service, our technical servi ce team representative will help you obt ain the fastest rem-

edy possible under the warranty.

Before You Install

We understand that automotive audio equipm ent installations can be troublesome a t

times, even to the most experienced of insta llation technicians. If you are not conﬁ -

dent working with electrical wirin g, removing and reinstalling interior panels , carpet-

ing, dash boards or othe r compo nents of your veh icle, pl ease ca ll our TO LL-FREE he lp

line 1-800-445-1797 and our in-house technical service team will answer your instal-

lation questions.

Before installing these speakers, ch eck the vehicle’s owner’s manual for loca-

tions of important vehicle compon ents such as air bags, CO2 systems, fuel

systems, & electrical systems instal led in the vehicle. Accidental deployment

of air bags may result in serious injur y.

Tools Needed To Install

Installation

25/8" or 61/2 cm

Speaker Depth

If you are installing the RS570-680 speaker s to upgrade/replace your existing speak-

ers, remove the existing speakers from your ve hicle, disconnect the speaker wires a nd

mark the polarity. Place the RS570-680 s peakers in the location you selected in your

vehicle and connect the existing speake r wires. Make sure to keep the polarity of the

speakers and wires correct (po sitive wire to positive speaker terminal and negat ive or

ground wire to negative terminal)

Before you install your speakers you must make sur e you have

enough depth/space behind the mounting sur face. You do not

want the back of the speaker magnet to touch any par t of your ve-

hicle, or interfere with the operation o r function of any component

in your vehicle. (ie. windows or trunk lid)

Location

You should only mount your speakers in factory pre cut holes. We

DO NOT recommend that you cut holes for mountin g the speakers. If

there are no factory precut holes c onsider having the speakers pro-

fessionally installed.

Mounting

1. Connect the speaker wires to

the speaker. Maintain polarity by

connecting the positive wire to the

positive speaker terminal, and the

negative wire to negative speaker

terminal.

2. Slip the supplied spring nuts into

place and align the holes.

3. Screw the speaker into

place with screws (provided).

4. Firmly attach the speaker

grill cover.

What if there is no sound?

Your stereo may have a blown fuse. Replace fuse with the same ampe rage and style.

2. You may have improper wiring. Refer to the wiring guide that came with yo ur ste-

reo/ampliﬁ er. Check all wi res for a secure connection.

What if the sound volume i s low?

Your stereo may not have enough power, you may have to install an ampliﬁ er to

drive the speakers

Why do I have a whining noise coming from the speakers?

You may have poor ﬁ lter ing of your alternator. If that is the case then you

may need to add an alternator ﬁ lter to the power lead.

Why do I have odd sounding nois es coming from the speake rs?

You may have corroded battery terminals and/or a weak bat tery. If the terminals on

the battery are corroded clea n them, then check the sound. If the sound system i s

still making noises check batter y strength. If it is low recharge or replac e the battery.

Why does the speaker have soun d coming from one chann el only?

First make sure the balance control is set co rrectly. If the balance is set correctly

your stereo may be defective or the speaker may be defec tive. To troubleshoot

this problem you MUST change both positive and n egative leads of each channel

with the positive and negative leads of the oppo site channel, if the same speaker has

no sound then the speaker is no good, if the opp osite speaker has no sound then

your stereo may be defective.

Limited Warranty

VIRTUAL REALITY SOUND LABS® products are designed and manufactured to provide a high level of trouble-free performance.

VIRTUAL REALITY SOUND LABS® warrants, to the original purchaser, that its products are free from defects in material and

workmanship for 30 days from the date of original purchase. As part of our commitment to product excellence, VIRTUAL REAL-

ITY SOUND LABS® and/or its afﬁ liates routinely improve the designs, materials or production methods of its existing products.

Because it is impractical to publicize all changes in every product, we reserve the right to make such changes without notice.

CONDITIONS OF WARRANTY:

If during the 30 day warranty period your new product is found to be defective, VIRTUAL REALITY SOUND LABS® will repair

such defect, or replace the product, without charge for parts or labor subject to the following conditions:

1. All repairs must be performed by VIRTUAL REALITY SOUND LABS® and/or its afﬁ liates in Eatontown, New Jersey.

2. The equipment must not have been altered or been damaged through negligence, accident, or improper operation.

3. The replacement of parts are exempted from this warranty when replacement is necessary due to normal wear and tear.

4. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.

5. Repair or replacement parts supplied by VIRTUAL REALITY SOUND LABS® under this warranty are protected only for the

unexpired portion of the original warranty.

6. In the case of car stereos, this warranty does not extend to the elimination of car static or motor noise; correction of antenna

problems; costs incurred for the removal or reinstallation of the product; damage to tapes, speakers, accessories or car electrical

systems.

7. VIRTUAL REALITY SOUND LABS® will not be responsible for any charge incurred for installation.

OWNER’S RESPONSIBILITIES:

VIRTUAL REALITY SOUND LABS® will make every effort to provide warranty service within a reasonable period of time.

SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED, OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING

SERVICE, PLEASE CALL TOLL FREE 1-800-445-1797, 8:30am - 4:30pm EST.

In order to provide you with the proper warranty service, we request that you adhere to the following procedure:

1. Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.

2. If it is necessary to return your product for service, please return it securely packed, preferably in the original shipping carton,

and freight and insurance prepaid to the following address: VIRTUAL REALITY SOUND LABS, Service Department, 41 James

Way, Eatontown, New Jersey 07724.

3. Please include a detailed explanation of the problem you are having.

4. If your product is found by VIRTUAL REALITY SOUND LABS® to have a defect in material or workmanship, within the warranty

period, it will be repaired or replaced at no charge and returned to you prepaid. Where permitted by Iaw VIRTUAL REALITY

SOUND LABS® liability shall be limited to that set forth in this warranty. This warranty shall be the exclusive remedy of the

purchaser.

VIRTUAL REALITY SOUND LABS® makes no other warranty of any kind, expressed or implied; and all implied warranties, are

hereby disclaimed by VIRTUAL REALITY SOUND LABS® and excluded from this warranty, VIRTUAL REALITY SOUND LABS®

and/or its afﬁ liates, the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or conse-

quential, arising out of the use or intended use of the product.

and/or its afﬁ liates. U.S. and Foreign Patents Pending. 072408 Printed in China 00000

2 Speakers

2 Grills

8 Screws

8 Spring Nuts

Speaker wires with female disconnec ts on one

end are recommended. When conne cting the

speaker wires to your speakers in a new instal -

lation, you should follow the wiring instructi ons

from your audio system’s manufacturer.

Attach the quick disconnect conn ectors to the

speaker terminals as shown. Maintain proper

polarity by attaching the Positive Wire (+) to

Positive Terminal(+) and the Negative Wire(-) to

Negative Terminal(-).

For most systems the positive wire attache s to

the positive speaker terminal and the neg ative

wire attaches to the negative terminal.

2.4” or 6.1 cm
