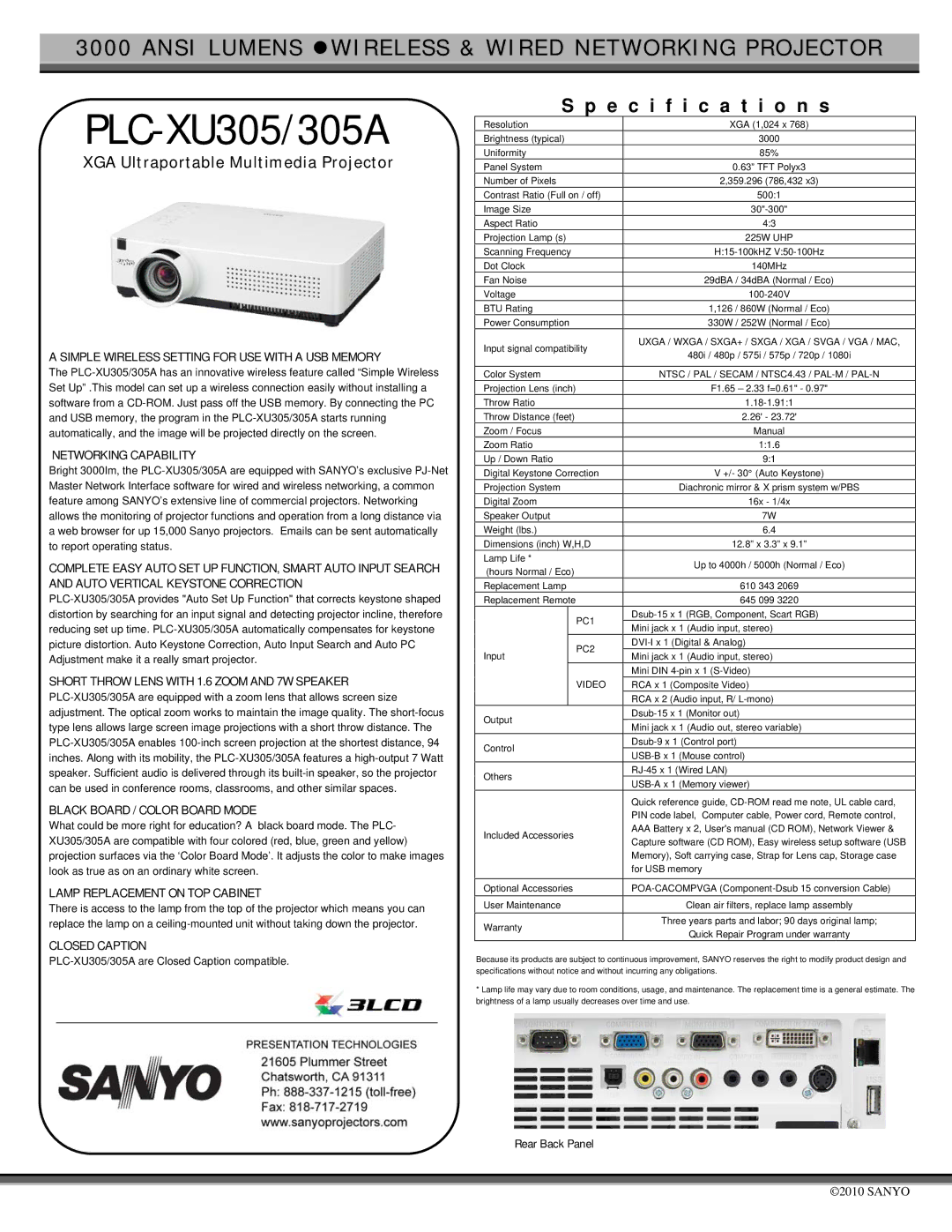

3000 ANSI LUMENS zWIRELESS & WIRED NETWORKING PROJECTOR

S p e c i f i c a t i o n s

PLC-XU305/305A

XGA Ultraportable Multimedia Projector

A SIMPLE WIRELESS SETTING FOR USE WITH A USB MEMORY

The PLC-XU305/305A has an innovative wireless feature called “Simple Wireless Set Up” .This model can set up a wireless connection easily without installing a software from a CD-ROM. Just pass off the USB memory. By connecting the PC and USB memory, the program in the PLC-XU305/305A starts running automatically, and the image will be projected directly on the screen.

NETWORKING CAPABILITY

Bright 3000Im, the PLC-XU305/305A are equipped with SANYO’s exclusive PJ-Net Master Network Interface software for wired and wireless networking, a common feature among SANYO’s extensive line of commercial projectors. Networking allows the monitoring of projector functions and operation from a long distance via a web browser for up 15,000 Sanyo projectors. Emails can be sent automatically to report operating status.

COMPLETE EASY AUTO SET UP FUNCTION, SMART AUTO INPUT SEARCH AND AUTO VERTICAL KEYSTONE CORRECTION

PLC-XU305/305A provides "Auto Set Up Function" that corrects keystone shaped distortion by searching for an input signal and detecting projector incline, therefore reducing set up time. PLC-XU305/305A automatically compensates for keystone picture distortion. Auto Keystone Correction, Auto Input Search and Auto PC Adjustment make it a really smart projector.

SHORT THROW LENS WITH 1.6 ZOOM AND 7W SPEAKER

PLC-XU305/305A are equipped with a zoom lens that allows screen size adjustment. The optical zoom works to maintain the image quality. The short-focus type lens allows large screen image projections with a short throw distance. The PLC-XU305/305A enables 100-inch screen projection at the shortest distance, 94 inches. Along with its mobility, the PLC-XU305/305A features a high-output 7 Watt speaker. Sufficient audio is delivered through its built-in speaker, so the projector can be used in conference rooms, classrooms, and other similar spaces.

BLACK BOARD / COLOR BOARD MODE

What could be more right for education? A black board mode. The PLC- XU305/305A are compatible with four colored (red, blue, green and yellow) projection surfaces via the ‘Color Board Mode’. It adjusts the color to make images look as true as on an ordinary white screen.

LAMP REPLACEMENT ON TOP CABINET

There is access to the lamp from the top of the projector which means you can replace the lamp on a ceiling-mounted unit without taking down the projector.

CLOSED CAPTION

Resolution

Brightness (typical)

Uniformity

Panel System

Number of Pixels

Contrast Ratio (Full on / off)

Image Size

Aspect Ratio

Projection Lamp (s)

Scanning Frequency

Dot Clock

Fan Noise

Voltage

BTU Rating

Power Consumption

Input signal compatibility

Color System

Projection Lens (inch)

Throw Ratio

Throw Distance (feet)

Zoom / Focus

Zoom Ratio

Up / Down Ratio

Digital Keystone Correction

Projection System

Digital Zoom

Speaker Output

Weight (lbs.)

Dimensions (inch) W,H,D

Lamp Life *

(hours Normal / Eco)

Replacement Lamp

Replacement Remote

	PC1
Input	PC2
	VIDEO
Output
Control
Others

Included Accessories

Optional Accessories

User Maintenance

Warranty

XGA (1,024 x 768)

3000

85%

0.63” TFT Polyx3

2,359.296 (786,432 x3)

500:1

30"-300"

4:3

225W UHP

H:15-100kHZ V:50-100Hz

140MHz

29dBA / 34dBA (Normal / Eco)

100-240V

1,126 / 860W (Normal / Eco)

330W / 252W (Normal / Eco)

UXGA / WXGA / SXGA+ / SXGA / XGA / SVGA / VGA / MAC,

480i / 480p / 575i / 575p / 720p / 1080i

NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N

F1.65 – 2.33 f=0.61" - 0.97"

1.18-1.91:1 2.26' - 23.72' Manual 1:1.6

9:1

V +/- 30° (Auto Keystone)

Diachronic mirror & X prism system w/PBS

16x - 1/4x

7W

6.4

12.8” x 3.3” x 9.1”

Up to 4000h / 5000h (Normal / Eco)

610 343 2069

645 099 3220

Dsub-15 x 1 (RGB, Component, Scart RGB) Mini jack x 1 (Audio input, stereo)

DVI-I x 1 (Digital & Analog)

Mini jack x 1 (Audio input, stereo) Mini DIN 4-pin x 1 (S-Video) RCA x 1 (Composite Video) RCA x 2 (Audio input, R/ L-mono) Dsub-15 x 1 (Monitor out)

Mini jack x 1 (Audio out, stereo variable) Dsub-9 x 1 (Control port)

USB-B x 1 (Mouse control) RJ-45 x 1 (Wired LAN) USB-A x 1 (Memory viewer)

Quick reference guide, CD-ROM read me note, UL cable card, PIN code label, Computer cable, Power cord, Remote control,

AAABattery x 2, User's manual (CD ROM), Network Viewer & Capture software (CD ROM), Easy wireless setup software (USB Memory), Soft carrying case, Strap for Lens cap, Storage case for USB memory

POA-CACOMPVGA (Component-Dsub 15 conversion Cable) Clean air filters, replace lamp assembly

Three years parts and labor; 90 days original lamp;

Quick Repair Program under warranty

PLC-XU305/305A are Closed Caption compatible.

Because its products are subject to continuous improvement, SANYO reserves the right to modify product design and specifications without notice and without incurring any obligations.

*Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a general estimate. The brightness of a lamp usually decreases over time and use.

Rear Back Panel

©2010 SANYO
