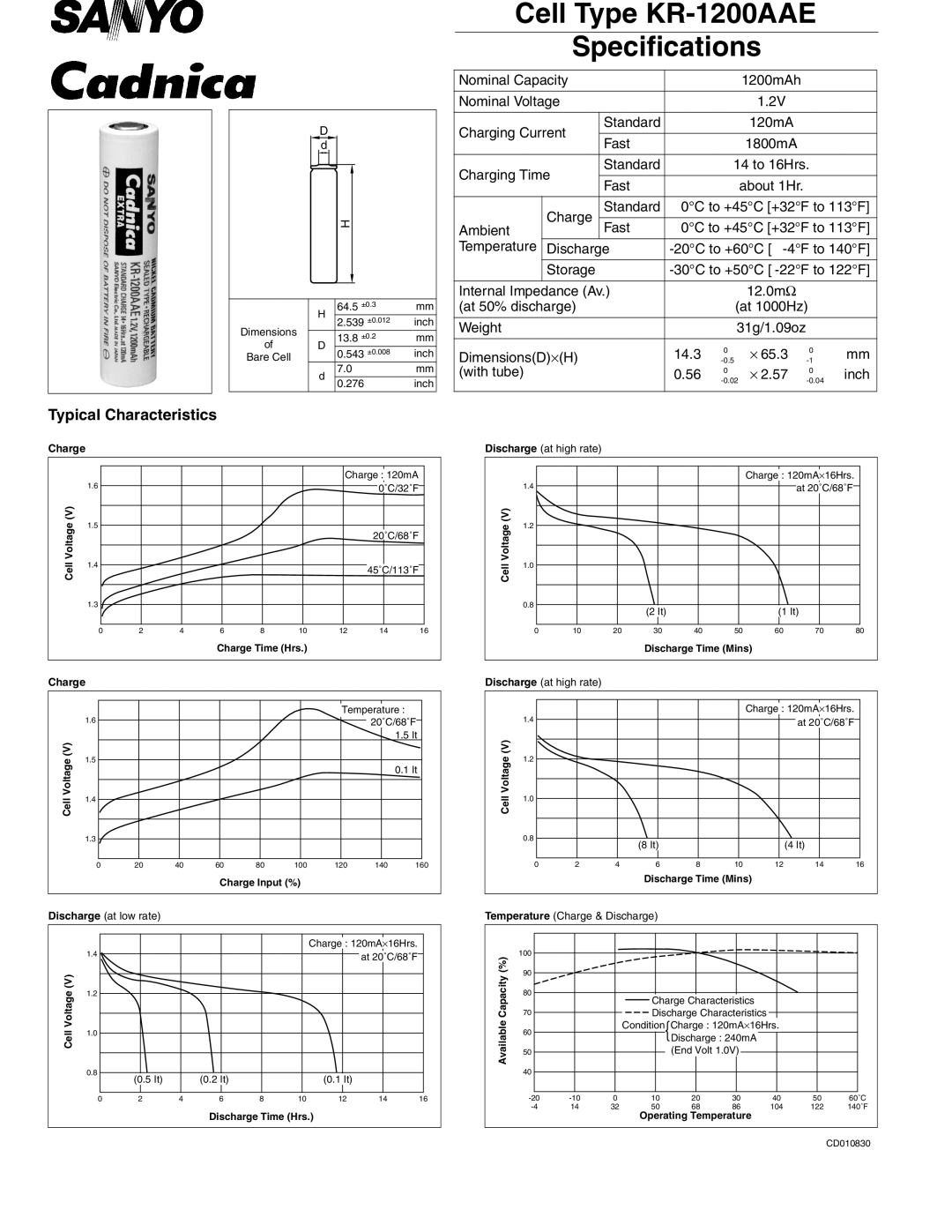

Typical Characteristics

SpecificationsCell Type KR-1200AAE
Dimensions
of
Bare Cell
H64.5 ±0.3 mm
2.539 ±0.012 inch
D13.8 ±0.2 mm
0.543 ±0.008 inch
d7.0 mm
0.276 inch
D
d
H

Nominal Capacity 1200mAh

Nominal Voltage 1.2V

Charging Current Standard 120mA

Fast 1800mA

Charging Time Standard 14 to 16Hrs.

Fast about 1Hr.

Ambient

Temperature

Charge Standard 0°C to +45°C [+32°F to 113°F]

Fast 0°C to +45°C [+32°F to 113°F]

Discharge -20°C to +60°C [ -4°F to 140°F]

Storage -30°C to +50°C [-22°F to 122°F]

Internal Impedance (Av.)

(at 50% discharge)

12.0mΩ

(at 1000Hz)

Weight 31g/1.09oz

Dimensions(D)×(H)

(with tube)

Charge
1.6
1.5
1.4
1.3
0246810121416
Charge : 120mA
0˚C/32˚F
20˚C/68˚F
45˚C/113˚F
Cell Voltage (V)
Charge Time (Hrs.)
Charge
1.6
1.5
1.4
1.3
0 20 40 60 80 100 120 140 160
Temperature :
20˚C/68˚F
1.5 It
0.1 It
Cell Voltage (V)
Charge Input (%)
Discharge (at low rate)
1.4
1.2
1.0
0.8
0246810121416
Charge : 120mA×16Hrs.
at 20˚C/68˚F
(0.1 It)(0.2 It)(0.5 It)
Cell Voltage (V)
Discharge Time (Hrs.)
Discharge (at high rate)
1.4
1.2
1.0
0.8
01020304050607080
Charge : 120mA×16Hrs.
at 20˚C/68˚F
(2 It) (1 It)
Cell Voltage (V)
Discharge Time (Mins)
Discharge (at high rate)
1.4
1.2
1.0
0.8
0246810121416
Charge : 120mA×16Hrs.
at 20˚C/68˚F
(4 It)(8 It)
Cell Voltage (V)
Discharge Time (Mins)
Temperature (Charge & Discharge)
100
80
60
40
-20 -10 0 10 20 30 40 50 60˚C
-4 14 32 50 68 86 104 122 140˚F
Available Capacity (%)
Operating Temperature
90
70
50
Charge Characteristics
Discharge Characteristics
Condition Charge : 120mA×16Hrs.
Discharge : 240mA
(End Volt 1.0V)

14.3 0× 65.3 0mm

-0.5 -1

0.56 0× 2.57 0inch

-0.02 -0.04
