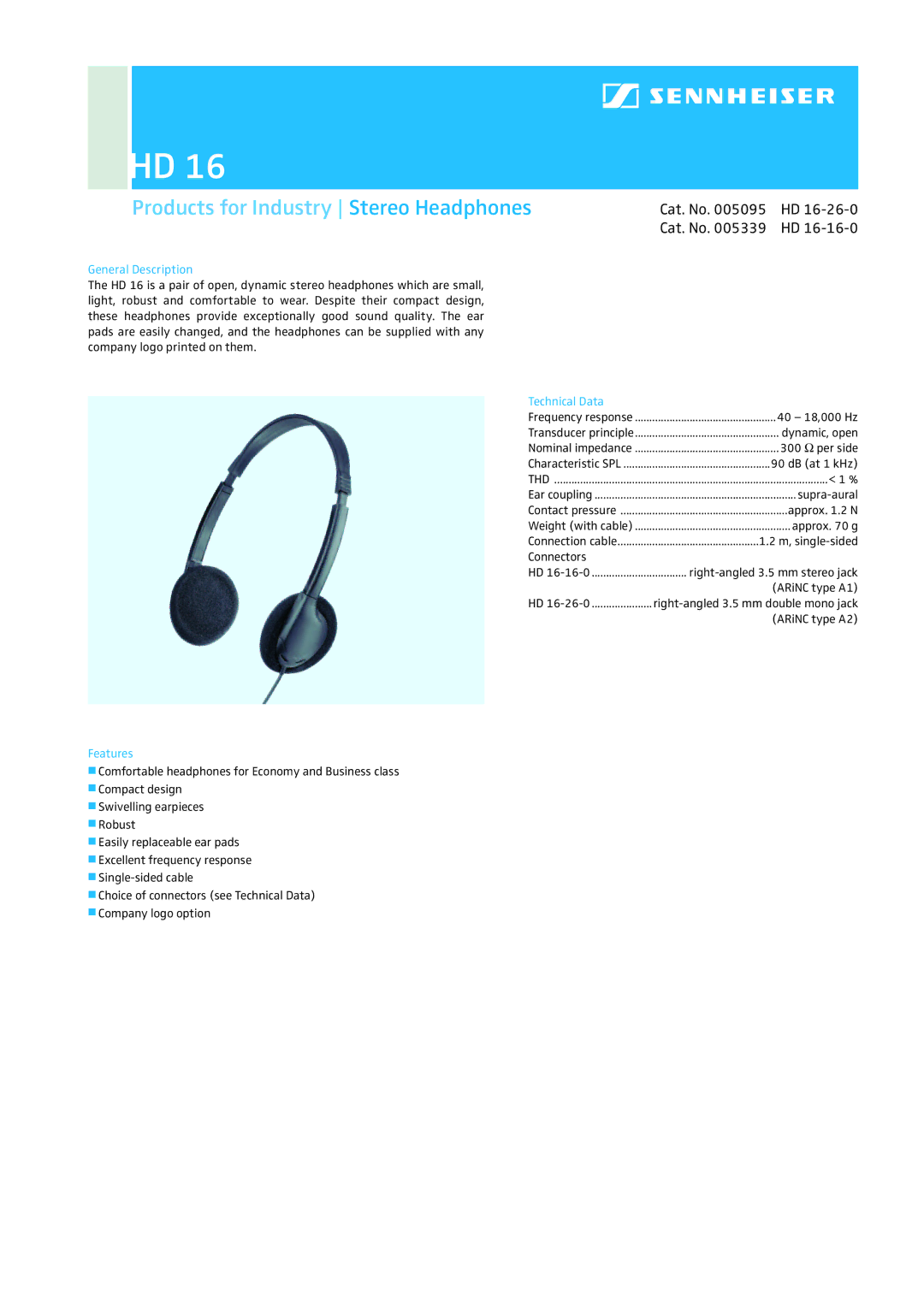

Sennheiser HD 16 manual Products for Industry | Stereo Headphones, Cat. No, General Description

HD 16

Products for Industry Stereo Headphones

Cat. No. 005095	HD 16-26-0
Cat. No. 005339	HD 16-16-0

General Description

The HD 16 is a pair of open, dynamic stereo headphones which are small, light, robust and comfortable to wear. Despite their compact design, these headphones provide exceptionally good sound quality. The ear pads are easily changed, and the headphones can be supplied with any company logo printed on them.

Technical Data
Frequency response	.................................................40 – 18,000 Hz
Transducer principle	.................................................. dynamic, open
Nominal impedance	..................................................300 Ω per side
Characteristic SPL	90 dB (at 1 kHz)
THD	< 1 %
Ear coupling	supra-aural
Contact pressure	approx. 1.2 N
Weight (with cable)	......................................................approx. 70 g
Connection cable	1.2 m, single-sided
Connectors
HD 16-16-0	right-angled 3.5 mm stereo jack
	(ARiNC type A1)
HD 16-26-0	right-angled 3.5 mm double mono jack
	(ARiNC type A2)

Features

Comfortable headphones for Economy and Business class

Compact design

Swivelling earpieces

Robust

Easily replaceable ear pads

Excellent frequency response

Single-sided cable

Choice of connectors (see Technical Data)

￿Company logo option
