Recommended Installations:

9/16T-bar suspended ceiling systems

15/16T-bar suspended ceiling systems

Recommended Environment:

• Indoor or weather-protected outdoor

Recommended Accessories:

PBB 2.0 Backbox kit

ECS2432D Enclosure compensation module

Safety Strap (secures SpeakerTile to back- box)

Available Models:

ST2432D:

Plain white (shown in photo)

ST2432D-3D1:

Fine Fissured® (or similar) tile pattern

ST2432D-3D2:

Cortega® (or similar) tile pattern

ST2432D-3D4:

Fissured® (or similar) tile pattern

ST2432D-3D7:

Optima®/Ultima® (or similar) tile pattern

ST2432D-3D21:

Cirrus® (or similar) tile pattern

Tegular cuts are available to match tegular ceiling tiles on 15/16T-bar grids. Tegular cuts are not required to match tegular ceiling tiles on 9/16T-bar grids. (See below for ceiling tile examples.) Call Sound Advance for details.

ST2432D Series

24” x 24” Hemispherically-Radiating

SpeakerTile®

HIGH QUALITY, WIDE-DISPERSION INVISIBLE SPEAKERTILE®

The Sound Advance® ST2432D SpeakerTile® is a remarkable combination of wide bandwidth, wide dispersion, and a highly-refined aesthetic presentation, designed for commercial installations. It is part of a unique family of truly invisible distributed sound products from Sound Advance.

All ST2432D SpeakerTile models are available in several mounting options, allowing them to be easily installed into standard T-bar suspended ceiling systems, completely replacing a standard 2 ft x 2 ft ceiling tile.

The ST2432D is available in six different models, featuring a selection of standard 3-dimensional patterns or factory-applied surface finishes that allow a match with almost any suspended ceiling tile pattern. The white Expanded PolyStyrene® (EPS) front surface of the speaker tile allows all models to optionally be finished on-site with any water-soluble finish, such as latex paint, or covered with light wallpaper, fabrics and selected texture coats*, further enhancing the SpeakerTile’s ability to blend invisibly with almost any interior design choice.

T-Bar and

Ceiling Tile

Variations

Tegular

9/16” Grid

Flush

9/16” Grid

Tegular

9/16” Grid

Patented Planar Diaphragm Technology™ allows a ST2432D that has been properly installed in a suspended ceiling to radiate sound in a 140° hemispherical pattern with smooth, even coverage. This dispersion characteristic allows ST2432D speakers to be spaced farther apart than narrow-dispersion conventional speakers, reducing the total quantity of loudspeakers required in almost any installation.

The ST2432D is a two-way, full-range device that utilizes a crossover centered at 1,200Hz, with 12dB per octave slopes for both low-pass and high-pass sections. The ST2432D is transformer-coupled, with the following input taps: 0.5W, 1W, 2W, 4W, 8W, 16W, 32W and 8-ohm bypass.







Flush







Tegular





15/ ” Grid





15/ ” Grid













16







16



















An optional PBB 2.0 backbox is available, and is recommended for use when the SpeakerTile is installed in air handling spaces. An optional ECS enclosure compensation module is available, to optimize performance when the ST2432D is used with the PBB 2.0.

[*Please contact Sound Advance for advice before applying any textured coating, light wallpaper or fabrics to the ST2432D.]

Fine Fissured, Cortega, Fissured, Optima, Ultima and Cirrus are registered trademarks of Armstrong World Industries.

Page 1
Image 1

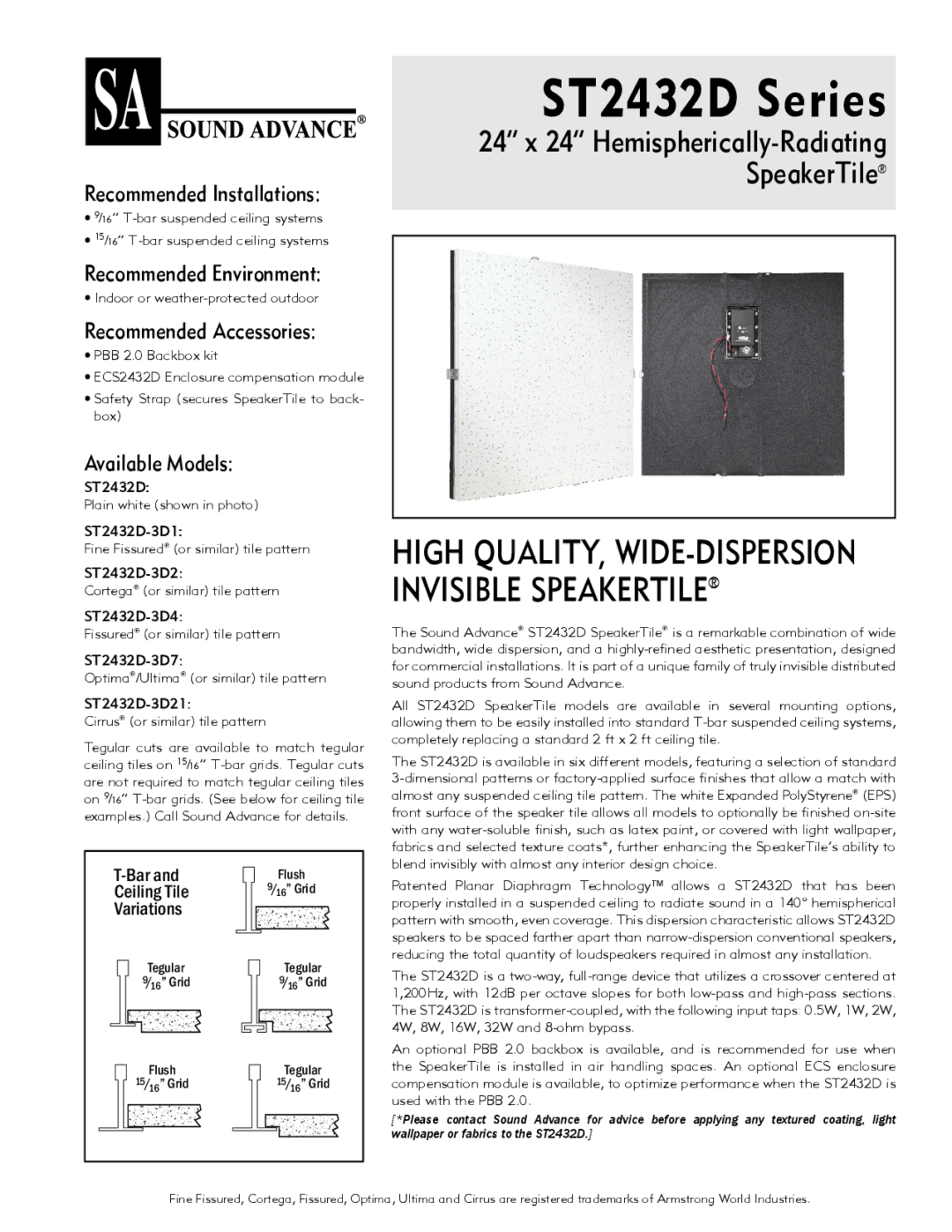

Sonance ST2432D Series manual Recommended Installations, Recommended Environment, Recommended Accessories
