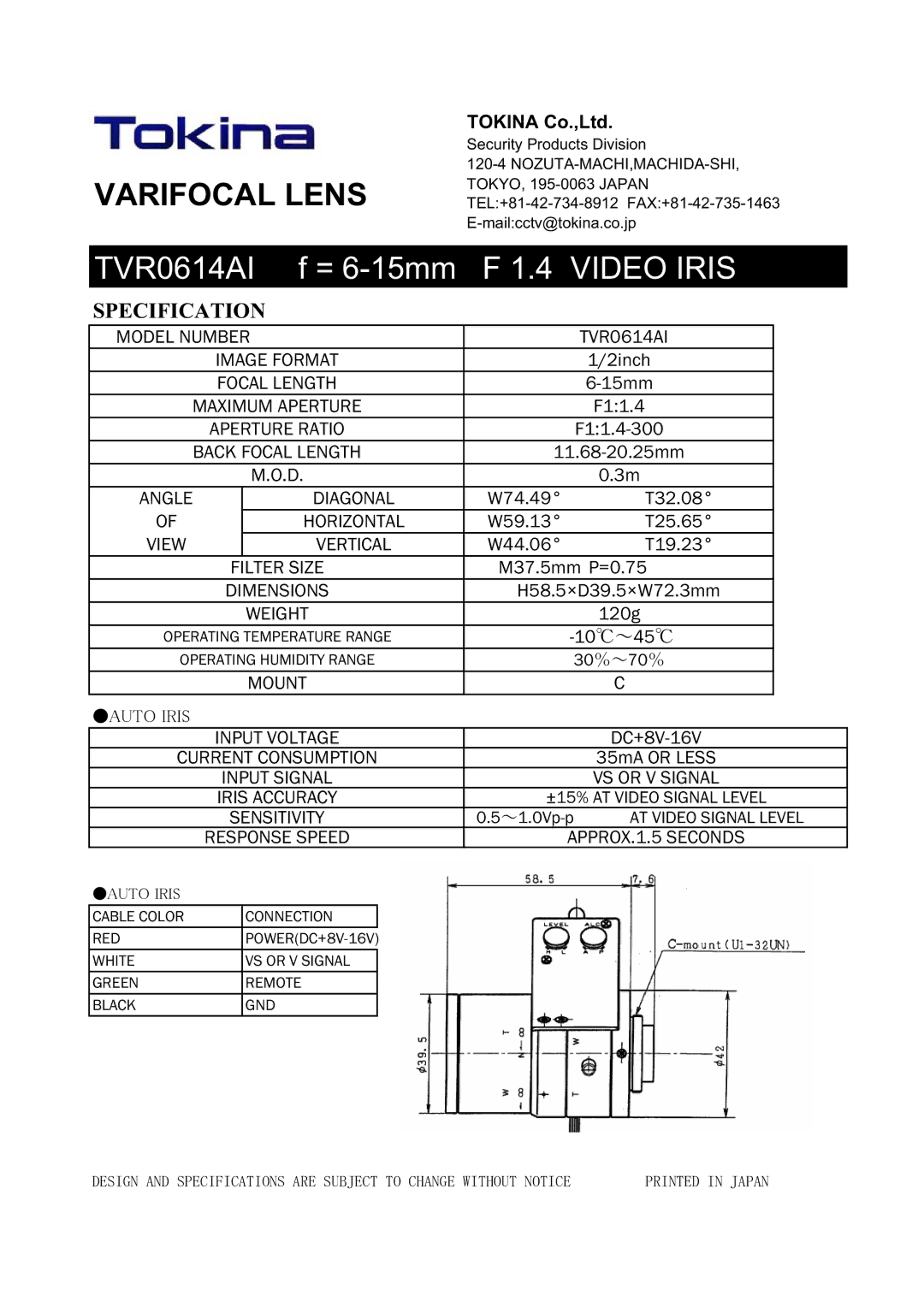

TOKINA Co.,Ltd.

VARIFOCAL LENS

Security Products Division

120-4 NOZUTA-MACHI,MACHIDA-SHI, TOKYO, 195-0063 JAPAN TEL:+81-42-734-8912 FAX:+81-42-735-1463 E-mail:cctv@tokina.co.jp

TVR0614AI

f = 6-15mm

F 1.4 VIDEO IRIS

SPECIFICATION























MODEL NUMBER





TVR0614AI





IMAGE FORMAT

1/2inch





FOCAL LENGTH

6-15mm



MAXIMUM APERTURE

F1:1.4





APERTURE RATIO

F1:1.4-300



BACK FOCAL LENGTH

11.68-20.25mm







M.O.D.



0.3m



ANGLE





DIAGONAL

W74.49°

T32.08°



OF





HORIZONTAL

W59.13°

T25.65°



VIEW





VERTICAL

W44.06°

T19.23°







FILTER SIZE

M37.5mm P=0.75





DIMENSIONS

H58.5×D39.5×W72.3mm







WEIGHT



120g



OPERATING TEMPERATURE RANGE

-10

45



OPERATING HUMIDITY RANGE

30

70







MOUNT



C



㪘㪬㪫㪦㩷㪠㪩㪠㪪

















INPUT VOLTAGE



DC+8V-16V

CURRENT CONSUMPTION



35mA OR LESS



INPUT SIGNAL

VS OR V SIGNAL



IRIS ACCURACY

±15% AT VIDEO SIGNAL LEVEL



SENSITIVITY

0.5 1.0Vp-p

AT VIDEO SIGNAL LEVEL



RESPONSE SPEED

APPROX.1.5 SECONDS

㪘㪬㪫㪦㩷㪠㪩㪠㪪















CABLE COLOR



CONNECTION









RED



POWER(DC+8V-16V)







WHITE



VS OR V SIGNAL









GREEN



REMOTE









BLACK



GND











&'5+)0#0&52'%+(+%#6+105#4'57$,'%661%*#0)'9+6*176016+%' 24+06'&+0,#2#0

Page 1
