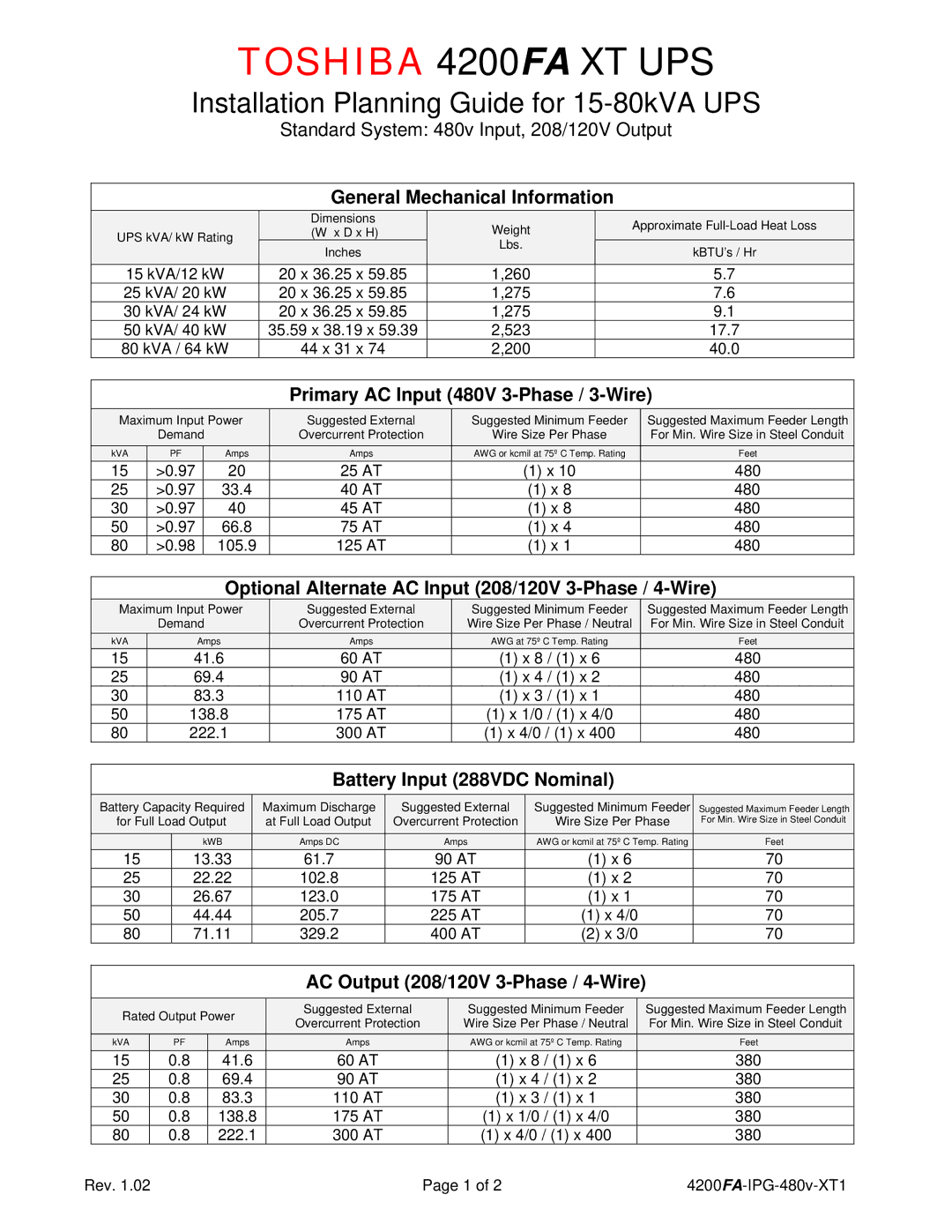

TOSHIBA 4200FA XT UPS

TOSHIBA 4200FA XT UPS

Installation Planning Guide for 15-80kVA UPS

Standard System: 480v Input, 208/120V Output

General Mechanical Information









Dimensions





Weight





Approximate Full-Load Heat Loss





UPS kVA/ kW Rating





(W x D x H)



































Inches





Lbs.





kBTU’s / Hr











































15 kVA/12 kW



20 x 36.25 x 59.85

1,260



5.7





25 kVA/ 20 kW



20 x 36.25 x 59.85

1,275



7.6





30 kVA/ 24 kW



20 x 36.25 x 59.85

1,275



9.1





50 kVA/ 40 kW



35.59 x 38.19 x 59.39

2,523



17.7





80 kVA / 64 kW



44 x 31 x 74

2,200



40.0



Primary AC Input (480V 3-Phase / 3-Wire)

Maximum Input Power

Suggested External

Suggested Minimum Feeder

Suggested Maximum Feeder Length



Demand



Overcurrent Protection

Wire Size Per Phase

For Min. Wire Size in Steel Conduit

kVA

PF



Amps

Amps

AWG or kcmil at 75º C Temp. Rating

Feet

15

>0.97



20

25 AT

(1) x 10

480

25

>0.97



33.4

40 AT

(1) x 8

480

30

>0.97



40

45 AT

(1) x 8

480

50

>0.97



66.8

75 AT

(1) x 4

480

80

>0.98



105.9

125 AT

(1) x 1

480

Optional Alternate AC Input (208/120V 3-Phase / 4-Wire)

Maximum Input Power

Suggested External

Suggested Minimum Feeder

Suggested Maximum Feeder Length



Demand

Overcurrent Protection

Wire Size Per Phase / Neutral

For Min. Wire Size in Steel Conduit

kVA

Amps

Amps

AWG at 75º C Temp. Rating

Feet

15

41.6

60 AT

(1) x 8

/ (1) x 6

480

25

69.4

90 AT

(1) x 4

/ (1) x 2

480

30

83.3

110 AT

(1) x 3

/ (1) x 1

480

50

138.8

175 AT

(1) x 1/0

/ (1) x 4/0

480

80

222.1

300 AT

(1) x 4/0 / (1) x 400

480

Battery Input (288VDC Nominal)



















Battery Capacity Required



Maximum Discharge



Suggested External



Suggested Minimum Feeder



for Full Load Output



at Full Load Output



Overcurrent Protection



Wire Size Per Phase























kWB



Amps DC



Amps















AWG or kcmil at 75º C Temp. Rating

15

13.33

61.7



90 AT



(1) x 6

25

22.22

102.8



125 AT



(1) x 2

30

26.67

123.0



175 AT



(1) x 1

50

44.44

205.7



225 AT



(1) x 4/0

80

71.11

329.2



400 AT



(2) x 3/0

Suggested Maximum Feeder Length For Min. Wire Size in Steel Conduit

Feet

70

70

70

70

70

AC Output (208/120V 3-Phase / 4-Wire)



Rated Output Power





Suggested External





Suggested Minimum Feeder





Suggested Maximum Feeder Length









Overcurrent Protection





Wire Size Per Phase / Neutral





For Min. Wire Size in Steel Conduit



























kVA

PF

Amps





Amps





AWG or kcmil at 75º C Temp. Rating





Feet



15

0.8

41.6





60 AT



(1) x 8 / (1) x 6

380



25

0.8

69.4





90 AT



(1) x 4 / (1) x 2

380



30

0.8

83.3





110 AT



(1) x 3 / (1) x 1

380



50

0.8

138.8





175 AT



(1) x 1/0 / (1) x 4/0

380



80

0.8

222.1





300 AT



(1) x 4/0 / (1) x 400

380
