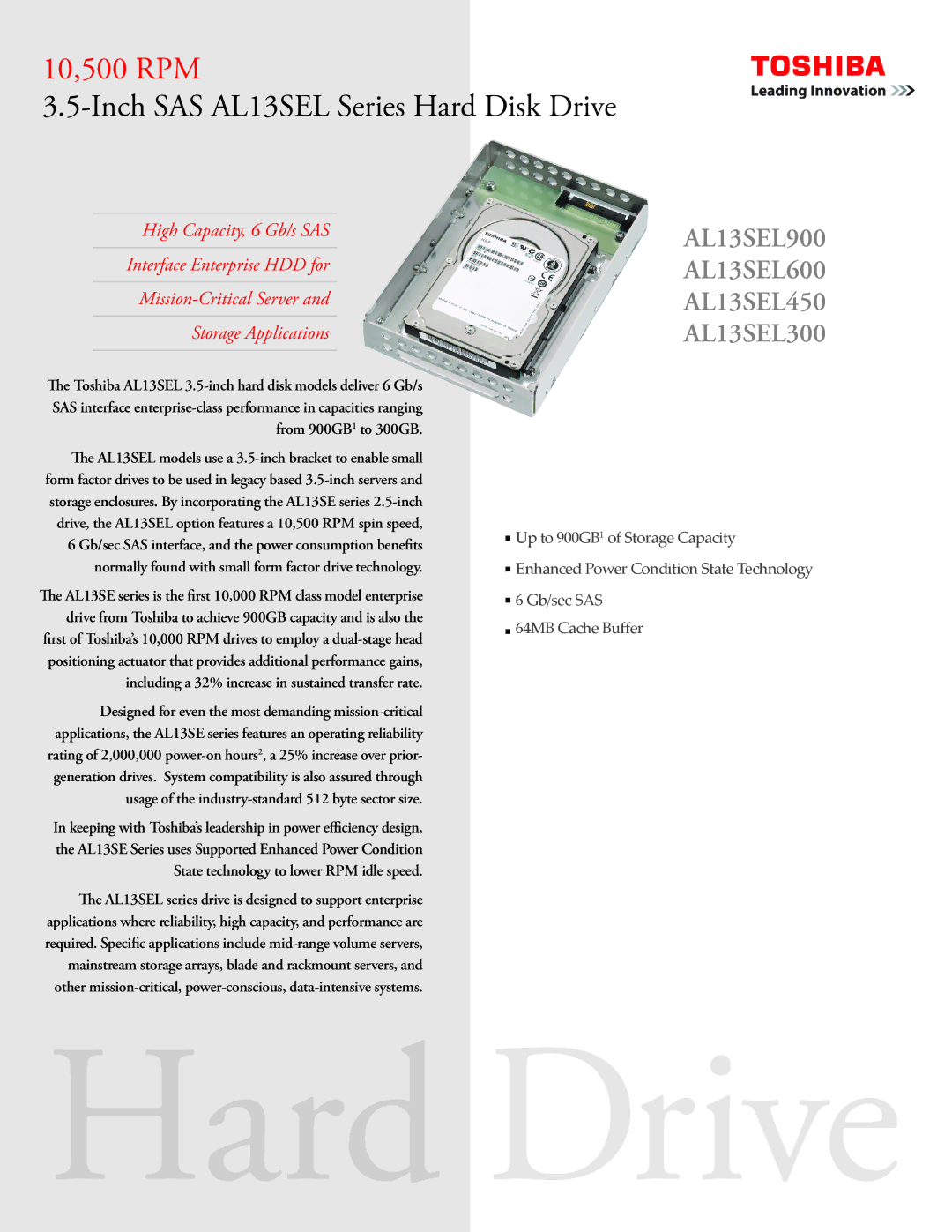

Toshiba AL13SEL600 manual 10,500 RPM, Inch SAS AL13SEL Series Hard Disk Drive

10,500 RPM

3.5-Inch SAS AL13SEL Series Hard Disk Drive

High Capacity, 6 Gb/s SAS

Interface Enterprise HDD for

Mission-Critical Server and

Storage Applications

The Toshiba AL13SEL 3.5-inch hard disk models deliver 6 Gb/s SAS interface enterprise-class performance in capacities ranging from 900GB1 to 300GB.

The AL13SEL models use a 3.5-inch bracket to enable small form factor drives to be used in legacy based 3.5-inch servers and storage enclosures. By incorporating the AL13SE series 2.5-inch drive, the AL13SEL option features a 10,500 RPM spin speed, 6 Gb/sec SAS interface, and the power consumption benefits normally found with small form factor drive technology.

The	AL13SE series is the first 10,000 RPM class model enterprise
	drive from Toshiba to achieve 900GB capacity and is also the
first	of Toshiba’s 10,000 RPM drives to employ a dual-stage head

positioning actuator that provides additional performance gains, including a 32% increase in sustained transfer rate.

Designed for even the most demanding mission-critical applications, the AL13SE series features an operating reliability rating of 2,000,000 power-on hours2, a 25% increase over prior- generation drives. System compatibility is also assured through usage of the industry-standard 512 byte sector size.

In keeping with Toshiba’s leadership in power efficiency design, the AL13SE Series uses Supported Enhanced Power Condition State technology to lower RPM idle speed.

The AL13SEL series drive is designed to support enterprise applications where reliability, high capacity, and performance are required. Specific applications include mid-range volume servers, mainstream storage arrays, blade and rackmount servers, and other mission-critical, power-conscious, data-intensive systems.

AL13SEL900

AL13SEL600

AL13SEL450

AL13SEL300

nn Up to 900GB1 of Storage Capacity

nn Enhanced Power Condition State Technology nn 6 Gb/sec SAS

nn 64MB Cache Buffer

Hard Drive
