Processor and Chipset3

This product specification is variable and subject to change prior to product launch.

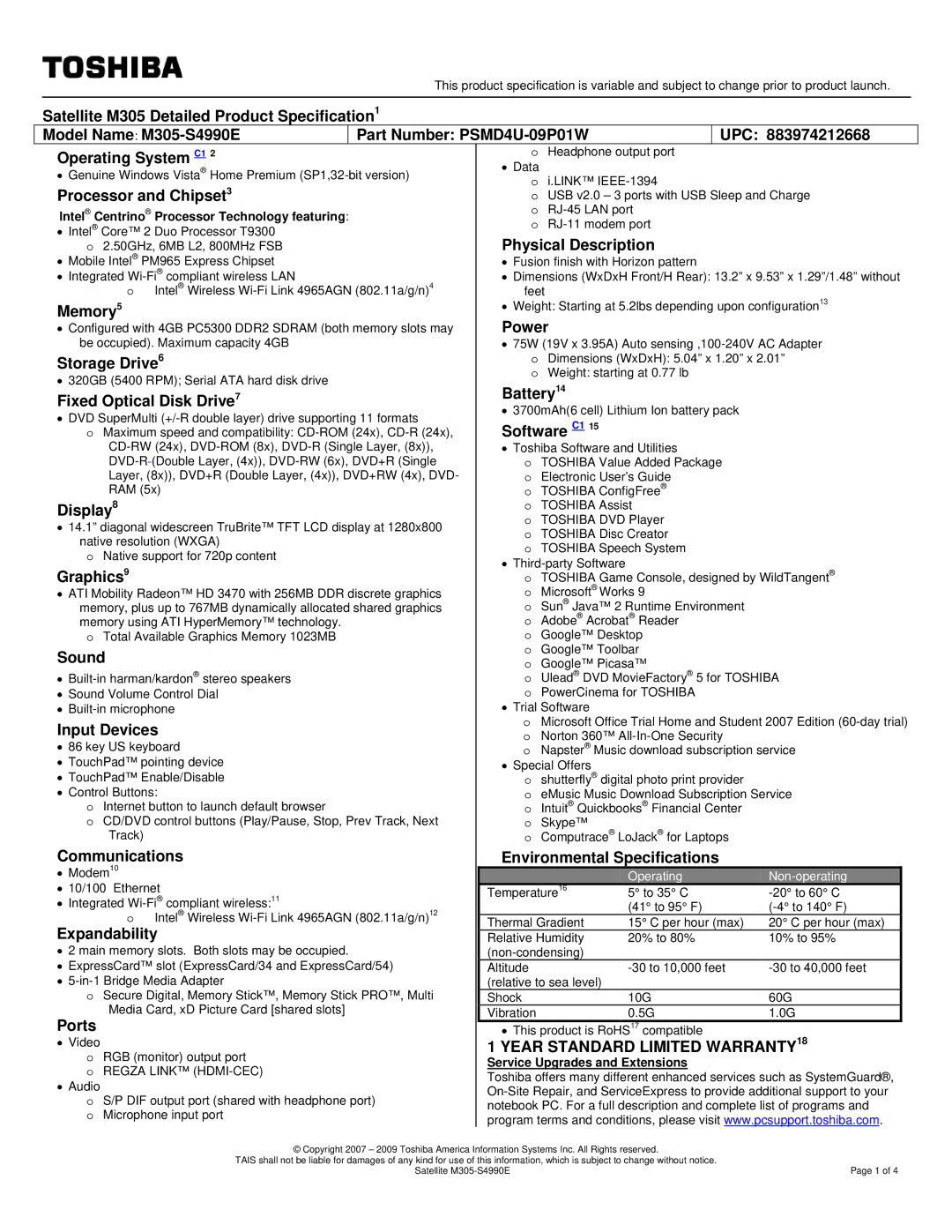

Satellite M305 Detailed Product Specification1

Model Name: M305-S4990E

Part Number: PSMD4U-09P01W

UPC: 883974212668

Operating System C1 2

•Genuine Windows Vista® Home Premium (SP1,32-bit version)

Intel® Centrino® Processor Technology featuring:

•Intel® Core™ 2 Duo Processor T9300 o 2.50GHz, 6MB L2, 800MHz FSB

•Mobile Intel® PM965 Express Chipset

•Integrated Wi-Fi®compliant wireless LAN

oIntel® Wireless Wi-Fi Link 4965AGN (802.11a/g/n)4

Memory5

•Configured with 4GB PC5300 DDR2 SDRAM (both memory slots may be occupied). Maximum capacity 4GB

Storage Drive6

•320GB (5400 RPM); Serial ATA hard disk drive

Fixed Optical Disk Drive7

•DVD SuperMulti (+/-R double layer) drive supporting 11 formats

oMaximum speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (24x), DVD-ROM (8x), DVD-R (Single Layer, (8x)), DVD-R (Double Layer, (4x)), DVD-RW (6x), DVD+R (Single Layer, (8x)), DVD+R (Double Layer, (4x)), DVD+RW (4x), DVD- RAM (5x)

Display8

•14.1” diagonal widescreen TruBrite™ TFT LCD display at 1280x800 native resolution (WXGA)

o Native support for 720p content

Graphics9

•ATI Mobility Radeon™ HD 3470 with 256MB DDR discrete graphics memory, plus up to 767MB dynamically allocated shared graphics memory using ATI HyperMemory™ technology.

o Total Available Graphics Memory 1023MB

Sound

•Built-in harman/kardon® stereo speakers

•Sound Volume Control Dial

•Built-in microphone

Input Devices

•86 key US keyboard

•TouchPad™ pointing device

•TouchPad™ Enable/Disable

•Control Buttons:

oInternet button to launch default browser

oCD/DVD control buttons (Play/Pause, Stop, Prev Track, Next Track)

Communications

•Modem10

•10/100 Ethernet

•Integrated Wi-Fi®compliant wireless:11

oIntel® Wireless Wi-Fi Link 4965AGN (802.11a/g/n)12

Expandability

•2 main memory slots. Both slots may be occupied.

•ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)

•5-in-1 Bridge Media Adapter

oSecure Digital, Memory Stick™, Memory Stick PRO™, Multi Media Card, xD Picture Card [shared slots]

Ports

•Video

oRGB (monitor) output port

oREGZA LINK™ (HDMI-CEC)

•Audio

oS/P DIF output port (shared with headphone port)

oMicrophone input port

oHeadphone output port

•Data

oi.LINK™ IEEE-1394

oUSB v2.0 – 3 ports with USB Sleep and Charge o RJ-45 LAN port

o RJ-11 modem port

Physical Description

•Fusion finish with Horizon pattern

•Dimensions (WxDxH Front/H Rear): 13.2” x 9.53” x 1.29”/1.48” without feet

•Weight: Starting at 5.2lbs depending upon configuration13

Power

•75W (19V x 3.95A) Auto sensing ,100-240V AC Adapter o Dimensions (WxDxH): 5.04” x 1.20” x 2.01”

o Weight: starting at 0.77 lb

Battery14

•3700mAh(6 cell) Lithium Ion battery pack

Software C1 15

•Toshiba Software and Utilities

oTOSHIBA Value Added Package

oElectronic User’s Guide

oTOSHIBA ConfigFree®

oTOSHIBA Assist

oTOSHIBA DVD Player

oTOSHIBA Disc Creator

oTOSHIBA Speech System

•Third-party Software

oTOSHIBA Game Console, designed by WildTangent®

oMicrosoft® Works 9

oSun® Java™ 2 Runtime Environment

oAdobe® Acrobat® Reader

oGoogle™ Desktop

oGoogle™ Toolbar

oGoogle™ Picasa™

oUlead® DVD MovieFactory® 5 for TOSHIBA

oPowerCinema for TOSHIBA

•Trial Software

oMicrosoft Office Trial Home and Student 2007 Edition (60-day trial) o Norton 360™ All-In-One Security

o Napster® Music download subscription service

•Special Offers

oshutterfly® digital photo print provider

oeMusic Music Download Subscription Service o Intuit® Quickbooks® Financial Center

o Skype™

o Computrace® LoJack® for Laptops

Environmental Specifications

	Operating	Non-operating
Temperature16	5° to 35° C	-20° to 60° C
	(41° to 95° F)	(-4° to 140° F)
Thermal Gradient	15° C per hour (max)	20° C per hour (max)
Relative Humidity	20% to 80%	10% to 95%
(non-condensing)	-30 to 10,000 feet
Altitude	-30 to 10,000 feet	-30 to 40,000 feet
(relative to sea level)	10G
Shock	10G	60G
Vibration	0.5G	1.0G

•This product is RoHS17 compatible

1 YEAR STANDARD LIMITED WARRANTY18

Service Upgrades and Extensions

Toshiba offers many different enhanced services such as SystemGuard®, On-Site Repair, and ServiceExpress to provide additional support to your notebook PC. For a full description and complete list of programs and program terms and conditions, please visit www.pcsupport.toshiba.com.

© Copyright 2007 – 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite M305-S4990E	Page 1 of 4
