Tripp Lite 1111 West 35th Street Chicago, IL 60609 USA Telephone: +(773) 869 1234 E-mail: saleshelp@tripplite.com

Model #: N820-15M

Multimode Fiber Optics 15-meter (50-ft.) 10Gb Aqua Duplex MMF 50/125 LSZH Patch Cable, LC/LC

Highlights

Designed for 10-Gig Ethernet applications

Backward compatible with existing 50/125 fiber

Max 10Gb distance of 300 meters @850nm

Low-Smoke, Zero Halogen (LSZH) Aqua jacket

Description

Tripp Lite introduces it's new Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.

Applications

For use with 10-Gigabit Ethernet equipment

Package Includes

15 meter Duplex Multimode 50/125 Aqua Fiber Patch Cable, LC/LC

Features

10gb Ethernet speed to 300 meters @850nm

Use with VCSEL and LED laser light sources

High-Speed, High-Bandwidth, Low-Cost

Backward compatible with legacy LAN's

Ideal for Fibre Channel (SAN) applications

IEEE 802.3ae and TIA LOMMF compliant

Specifications

OVERVIEW

Clad Diameter

125um





Core Diameter

50um





Fiber Type

50/125 LOMMF





Page 1

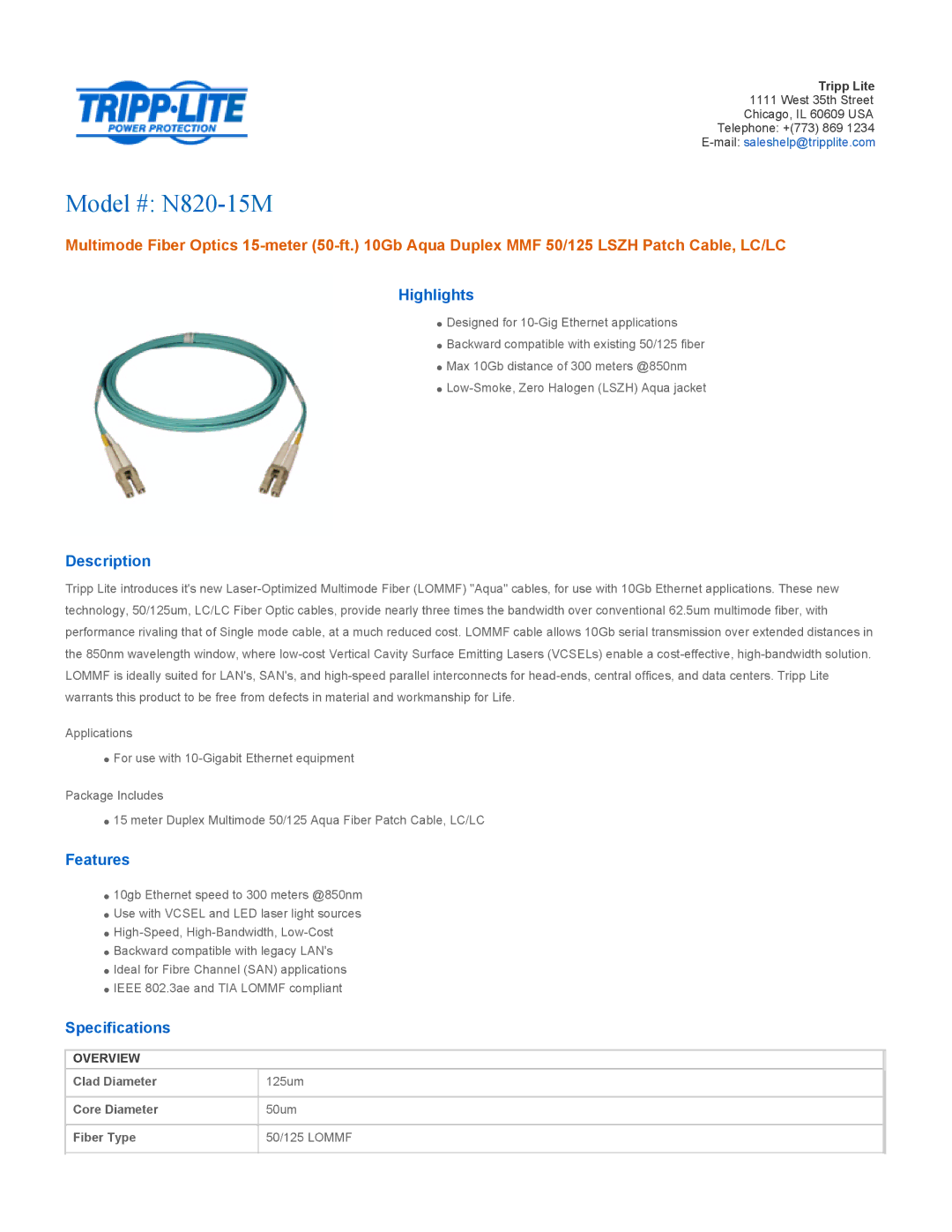

Image 1
Tripp Lite N820-15M specifications Highlights, Description, Features, Specifications

N820-15M specifications

The Tripp Lite N820-15M is a top-tier fiber optic patch cable designed for high-speed data transmission in a variety of networking environments. This exceptional cable is ideal for applications where reliable performance and long-distance signal integrity are paramount.

One of the standout features of the Tripp Lite N820-15M is its construction using OM3 multimode fiber, which is optimized for a wavelength of 850 nm. This technology allows for quicker data transfer rates compared to older fiber types, making it suitable for high-bandwidth applications such as data centers, server farms, and enterprise networks. With a length of 15 meters, the cable offers versatility in installation, whether for connecting network hardware, running from racks, or linking switches.

The Tripp Lite N820-15M supports data speeds of up to 10 Gbps, making it an excellent choice for demanding tasks like cloud computing, video streaming, and large file transfers. It employs innovative LC duplex connectors that ensure a snug fit and minimize loss of continuity, thus enhancing performance and reliability.

Durability is another key characteristic of the Tripp Lite N820-15M. It features a PVC jacket that not only provides flexibility for easy routing but also protects the fiber from physical damage. The connectors are designed with strain relief boots, protecting the cable from bending and breaking under tension, significantly extending its lifespan.

Additionally, this patch cable is compliant with the TIA/EIA-568-C.3 standards, which ensures that it meets industry requirements for performance and safety. The color coding of the fiber helps to reduce confusion during installation and maintenance, making setup and troubleshooting more efficient.

The Tripp Lite N820-15M is also backward compatible, meaning it can work seamlessly with existing 10GBASE-SR and 1000BASE-SX equipment, making it a cost-effective choice for upgrades. With its combination of speed, reliability, and durability, this fiber optic patch cable is a crucial component for modern networks, facilitating superior communication between devices while ensuring optimum performance in high-demand environments.
