Tripp Lite PDU1230 Specifications, System Overview, Output, Input, Physical, Special Features

Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure

Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment

Attractive all-metal housing measures only 4.5 inches in depth

Switch-free design prevents the potential for accidental shutoff of connected loads

6 built-in circuit breakers: 2 15A breakers cover 2 C19 outlets; 4 10A breakers cover remaining C13 outlets in banks of 4 208V AC, 30A, 50/60Hz electrical compatibility

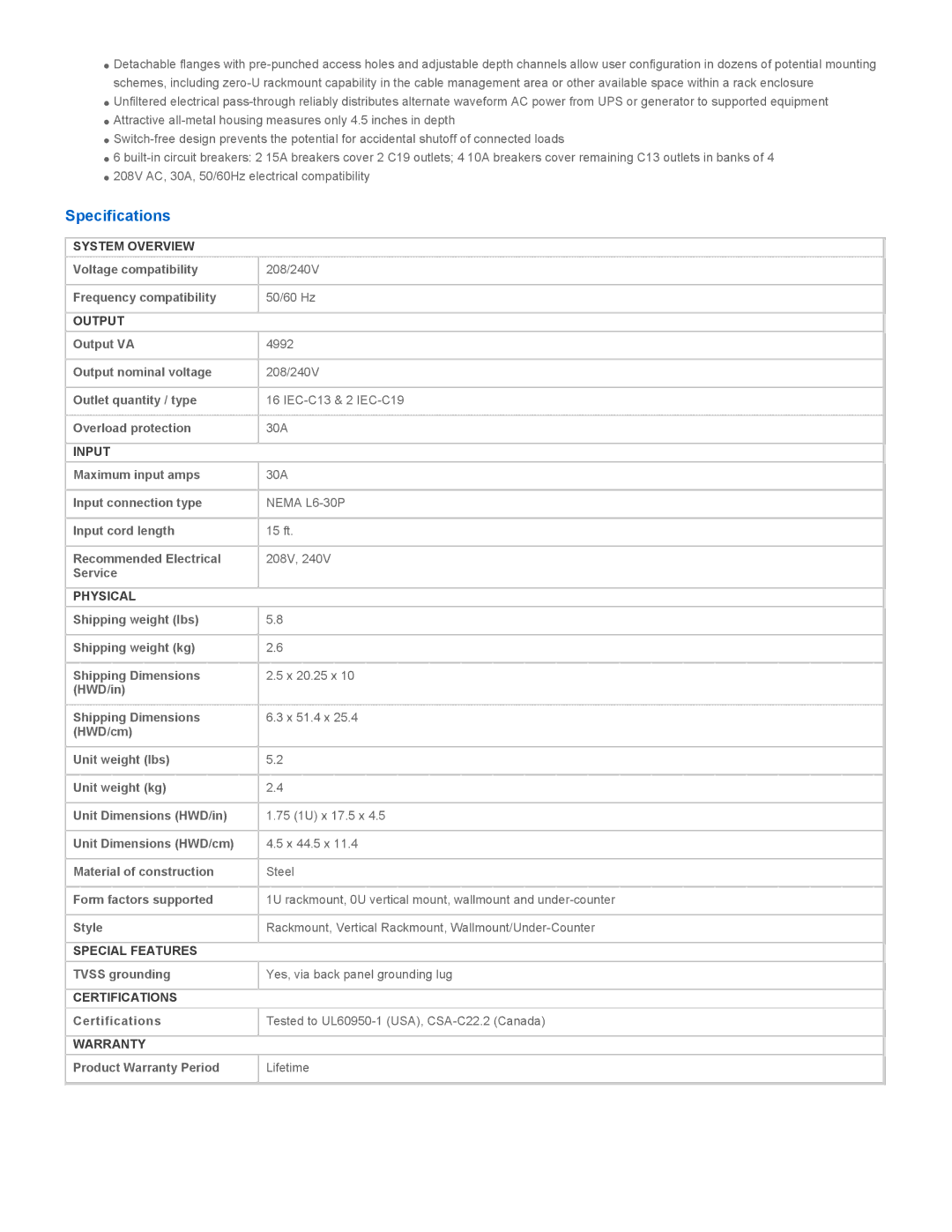

Specifications

SYSTEM OVERVIEW

Voltage compatibility	208/240V
Frequency compatibility	50/60 Hz
OUTPUT

Output VA

Output nominal voltage

Outlet quantity / type

Overload protection

INPUT

4992

208/240V

16IEC-C13 & 2 IEC-C19 30A

Maximum input amps	30A
Input connection type	NEMA L6-30P
Input cord length	15 ft.
Recommended Electrical	208V, 240V
Service
PHYSICAL
Shipping weight (lbs)	5.8
Shipping weight (kg)	2.6
Shipping Dimensions	2.5 x 20.25 x 10
(HWD/in)
Shipping Dimensions	6.3 x 51.4 x 25.4
(HWD/cm)
Unit weight (lbs)	5.2
Unit weight (kg)	2.4
Unit Dimensions (HWD/in)	1.75 (1U) x 17.5 x 4.5
Unit Dimensions (HWD/cm)	4.5 x 44.5 x 11.4
Material of construction	Steel
Form factors supported	1U rackmount, 0U vertical mount, wallmount and under-counter
Style	Rackmount, Vertical Rackmount, Wallmount/Under-Counter
SPECIAL FEATURES
TVSS grounding	Yes, via back panel grounding lug
CERTIFICATIONS
Certifications	Tested to UL60950-1 (USA), CSA-C22.2 (Canada)
WARRANTY
Product Warranty Period	Lifetime
