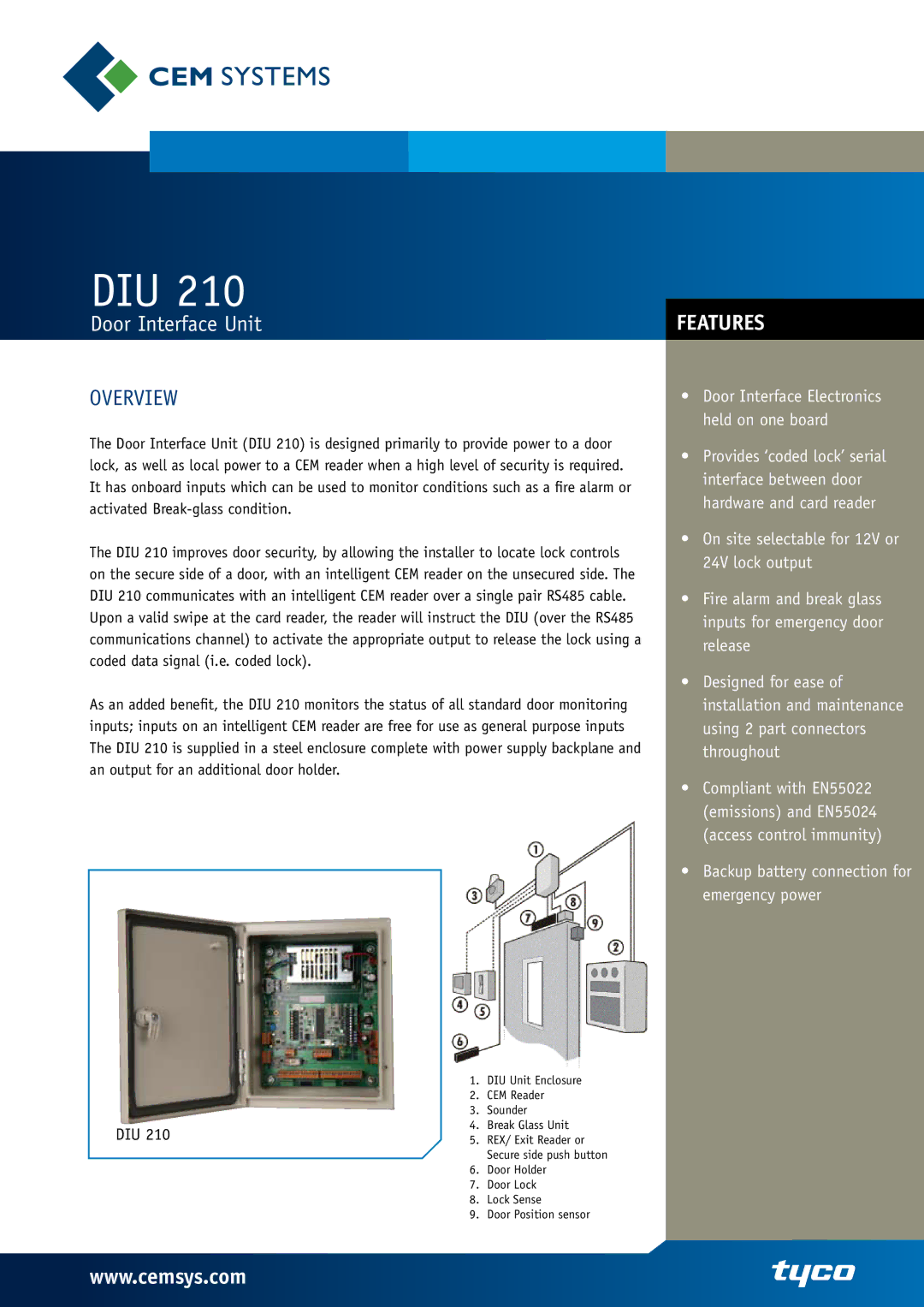

DIU 210

Door Interface Unit

OVERVIEW

The Door Interface Unit (DIU 210) is designed primarily to provide power to a door lock, as well as local power to a CEM reader when a high level of security is required. It has onboard inputs which can be used to monitor conditions such as a fire alarm or activated Break-glass condition.

The DIU 210 improves door security, by allowing the installer to locate lock controls on the secure side of a door, with an intelligent CEM reader on the unsecured side. The DIU 210 communicates with an intelligent CEM reader over a single pair RS485 cable. Upon a valid swipe at the card reader, the reader will instruct the DIU (over the RS485 communications channel) to activate the appropriate output to release the lock using a coded data signal (i.e. coded lock).

As an added benefit, the DIU 210 monitors the status of all standard door monitoring inputs; inputs on an intelligent CEM reader are free for use as general purpose inputs The DIU 210 is supplied in a steel enclosure complete with power supply backplane and an output for an additional door holder.

1. DIU Unit Enclosure

2. CEM Reader

3. Sounder

4. Break Glass Unit

DIU 2105. REX/ Exit Reader or Secure side push button

6. Door Holder

7. Door Lock

8. Lock Sense

9. Door Position sensor

www.cemsys.com

FEATURES

Door Interface Electronics held on one board

Provides ‘coded lock’ serial interface between door hardware and card reader

On site selectable for 12V or

24V lock output

Fire alarm and break glass inputs for emergency door release

Designed for ease of installation and maintenance using 2 part connectors throughout

Compliant with EN55022 (emissions) and EN55024

(access control immunity)

Backup battery connection for emergency power

Page 1

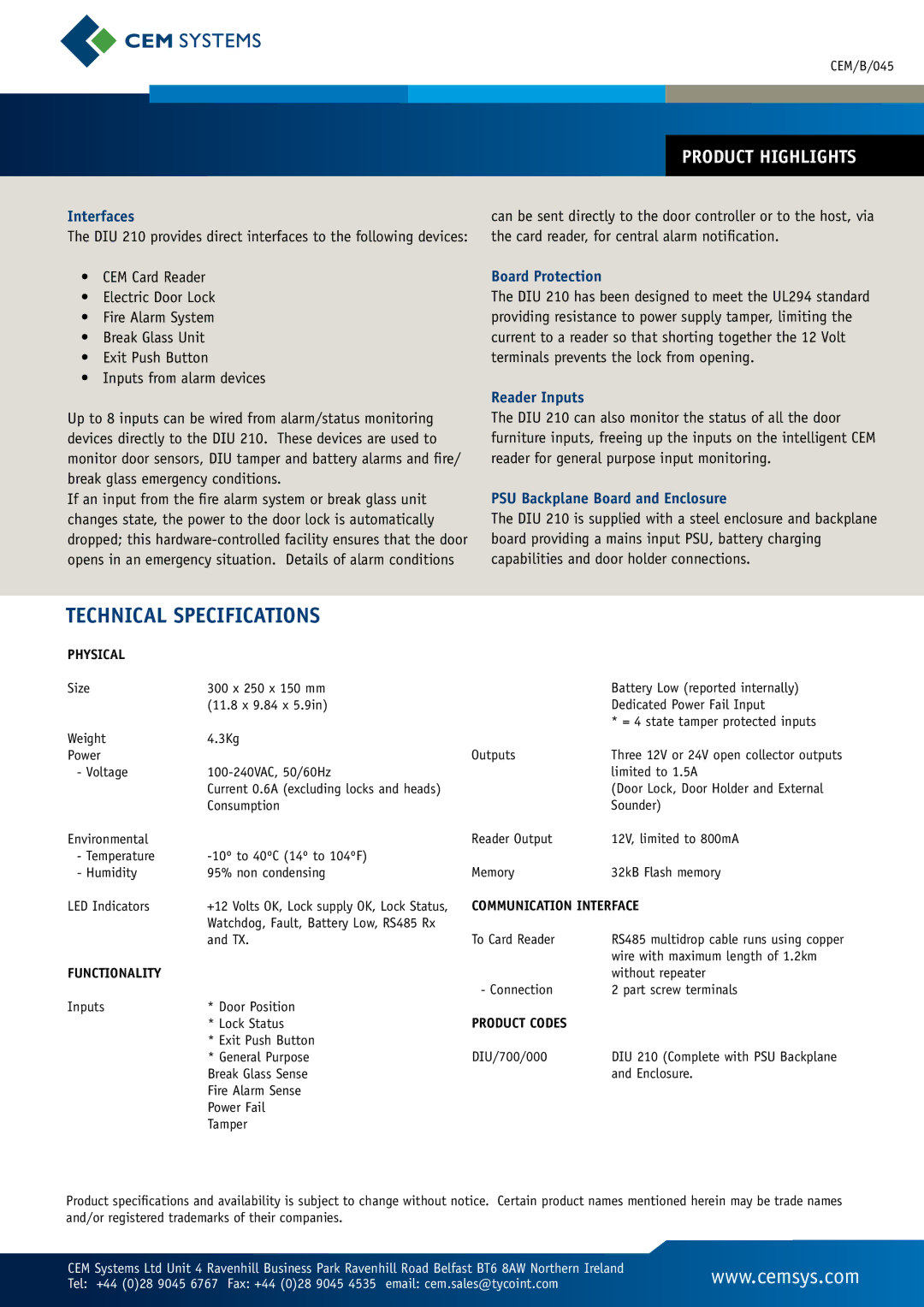

Image 1
Tyco DIU 210 manual Diu

DIU 210 specifications

The Tyco DIU 210 is an advanced device designed for a variety of industrial and commercial applications. Built for robustness and efficiency, it integrates a multitude of features and cutting-edge technologies that cater to modern operational needs.

One of the defining characteristics of the DIU 210 is its exceptional data acquisition capability. It is equipped with a high-speed data processing unit that allows for real-time monitoring and data collection from connected devices. This feature is vital for industries where timely information is critical for decision-making.

The DIU 210 also boasts a flexible connectivity framework. It supports multiple communication protocols, such as Ethernet, Modbus, and RS-485. This versatility ensures seamless integration with existing systems, promoting interoperability in mixed technology environments. Users can easily connect a wide range of sensors and devices, making the DIU 210 an ideal solution for networked industrial applications.

In terms of build quality, the DIU 210 is designed to withstand harsh environmental conditions. With its rugged housing, it is capable of operating in extreme temperatures and resistant to dust and moisture, fulfilling the demands of outdoor setups and industrial locations.

Another notable feature of the Tyco DIU 210 is its user-friendly interface. The device is equipped with an intuitive display that allows operators to adjust settings, monitor status, and troubleshoot issues with ease. Additionally, its software is user-centric, providing a straightforward experience for configuring parameters without extensive training.

Security is also a priority with the DIU 210. It includes built-in encryption protocols to protect data integrity and prevent unauthorized access. As cyber threats become more prevalent, such security measures are essential to safeguard sensitive operational data.

The Tyco DIU 210 supports advanced analytics and machine learning capabilities. This enables predictive maintenance and operational optimization, giving businesses the tools they need to enhance productivity while minimizing downtime.

In conclusion, the Tyco DIU 210 stands out as a reliable and versatile solution for data acquisition and process monitoring. With its combination of robust construction, flexible connectivity options, user-friendly interface, and advanced features, it is well-suited for various industries looking to leverage technology for improved operational efficiency and productivity.
