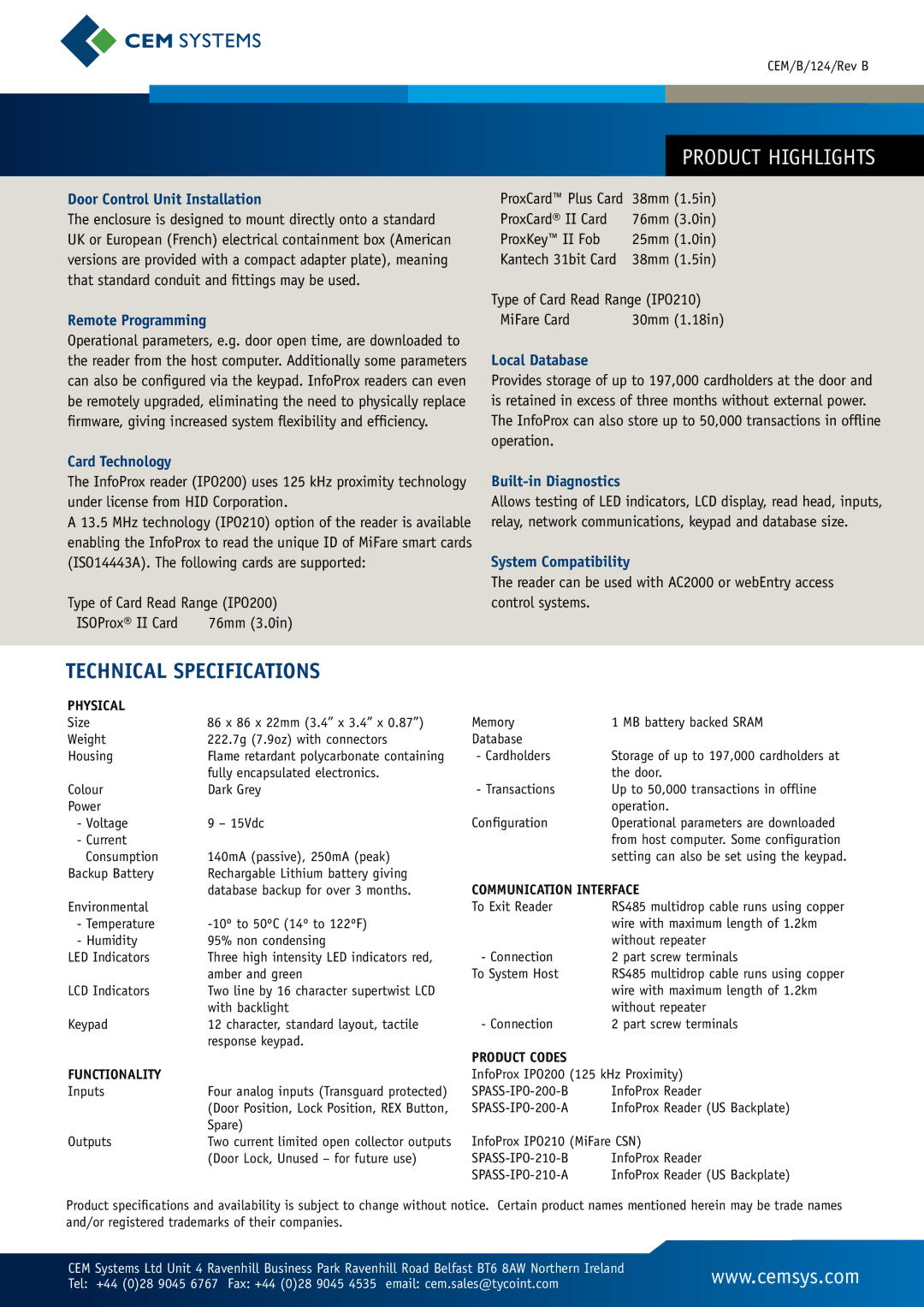

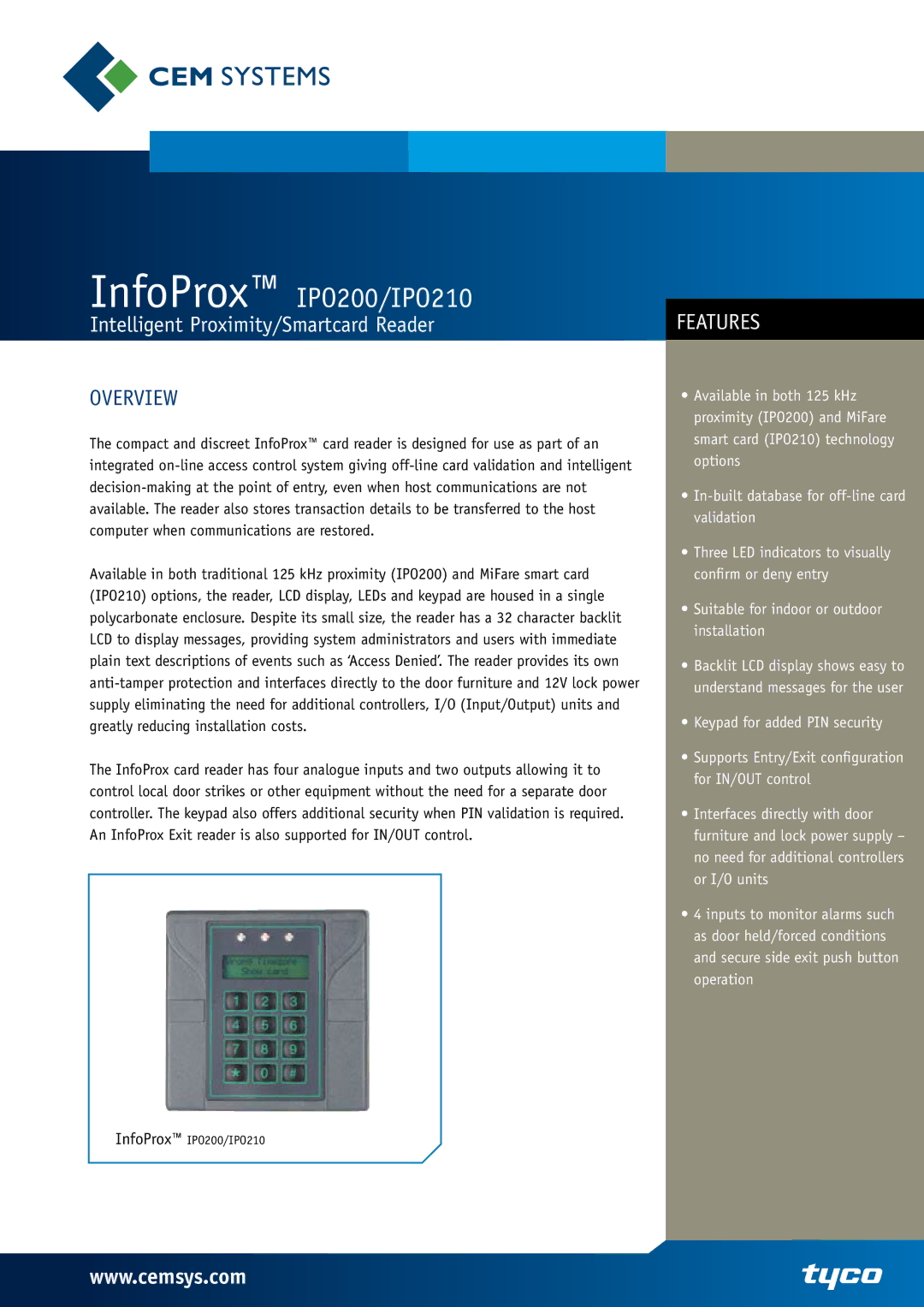

CEM/B/124/Rev B

Product Highlights

Door Control Unit Installation

The enclosure is designed to mount directly onto a standard UK or European (French) electrical containment box (American versions are provided with a compact adapter plate), meaning that standard conduit and fittings may be used.

Remote Programming

Operational parameters, e.g. door open time, are downloaded to the reader from the host computer. Additionally some parameters can also be configured via the keypad. InfoProx readers can even be remotely upgraded, eliminating the need to physically replace firmware, giving increased system flexibility and efficiency.

Card Technology

ProxCard™ Plus Card

38mm (1.5in)

ProxCard® II Card

76mm (3.0in)

ProxKey™ II Fob

25mm (1.0in)

Kantech 31bit Card

38mm (1.5in)

Type of Card Read Range (IPO210)

MiFare Card

30mm (1.18in)

Local Database

Provides storage of up to 197,000 cardholders at the door and is retained in excess of three months without external power. The InfoProx can also store up to 50,000 transactions in offline operation.

The InfoProx reader (IPO200) uses 125 kHz proximity technology under license from HID Corporation.

A 13.5 MHz technology (IPO210) option of the reader is available enabling the InfoProx to read the unique ID of MiFare smart cards (ISO14443A). The following cards are supported:

Type of Card Read Range (IPO200)

ISOProx® II Card

76mm (3.0in)

Built-in Diagnostics

Allows testing of LED indicators, LCD display, read head, inputs, relay, network communications, keypad and database size.

System Compatibility

The reader can be used with AC2000 or webEntry access control systems.

TECHNICAL SPECIFICATIONS

Physical



Size

86 x 86 x 22mm (3.4” x 3.4” x 0.87”)

Weight

222.7g (7.9oz) with connectors

Housing

Flame retardant polycarbonate containing



fully encapsulated electronics.

Colour

Dark Grey

Power



- Voltage

9 – 15Vdc

- Current



Consumption

140mA (passive), 250mA (peak)

Backup Battery

Rechargable Lithium battery giving



database backup for over 3 months.

Environmental



- Temperature

-10º to 50ºC (14º to 122ºF)

- Humidity

95% non condensing

LED Indicators

Three high intensity LED indicators red,



amber and green

LCD Indicators

Two line by 16 character supertwist LCD



with backlight

Keypad

12 character, standard layout, tactile



response keypad.

Functionality



Inputs

Four analog inputs (Transguard protected)



(Door Position, Lock Position, REX Button,



Spare)

Outputs

Two current limited open collector outputs



(Door Lock, Unused – for future use)

Memory

1 MB battery backed SRAM

Database



- Cardholders

Storage of up to 197,000 cardholders at



the door.

- Transactions

Up to 50,000 transactions in offline



operation.

Configuration

Operational parameters are downloaded



from host computer. Some configuration



setting can also be set using the keypad.

Communication Interface

To Exit Reader

RS485 multidrop cable runs using copper



wire with maximum length of 1.2km



without repeater

- Connection

2 part screw terminals

To System Host

RS485 multidrop cable runs using copper



wire with maximum length of 1.2km



without repeater

- Connection

2 part screw terminals

Product Codes

InfoProx Ipo200 (125 kHz Proximity)

SPASS-IPO-200-B InfoProx Reader

SPASS-IPO-200-A InfoProx Reader (US Backplate)

InfoProx IPO210 (MiFare CSN)

SPASS-IPO-210-B InfoProx Reader

SPASS-IPO-210-A InfoProx Reader (US Backplate)

Product specifications and availability is subject to change without notice. Certain product names mentioned herein may be trade names and/or registered trademarks of their companies.

CEM Systems Ltd Unit 4 Ravenhill Business Park Ravenhill Road Belfast BT6 8AW Northern Ireland

www.cemsys.com

Tel: +44 (0)28 9045 6767 Fax: +44 (0)28 9045 4535 email: cem.sales@tycoint.com
