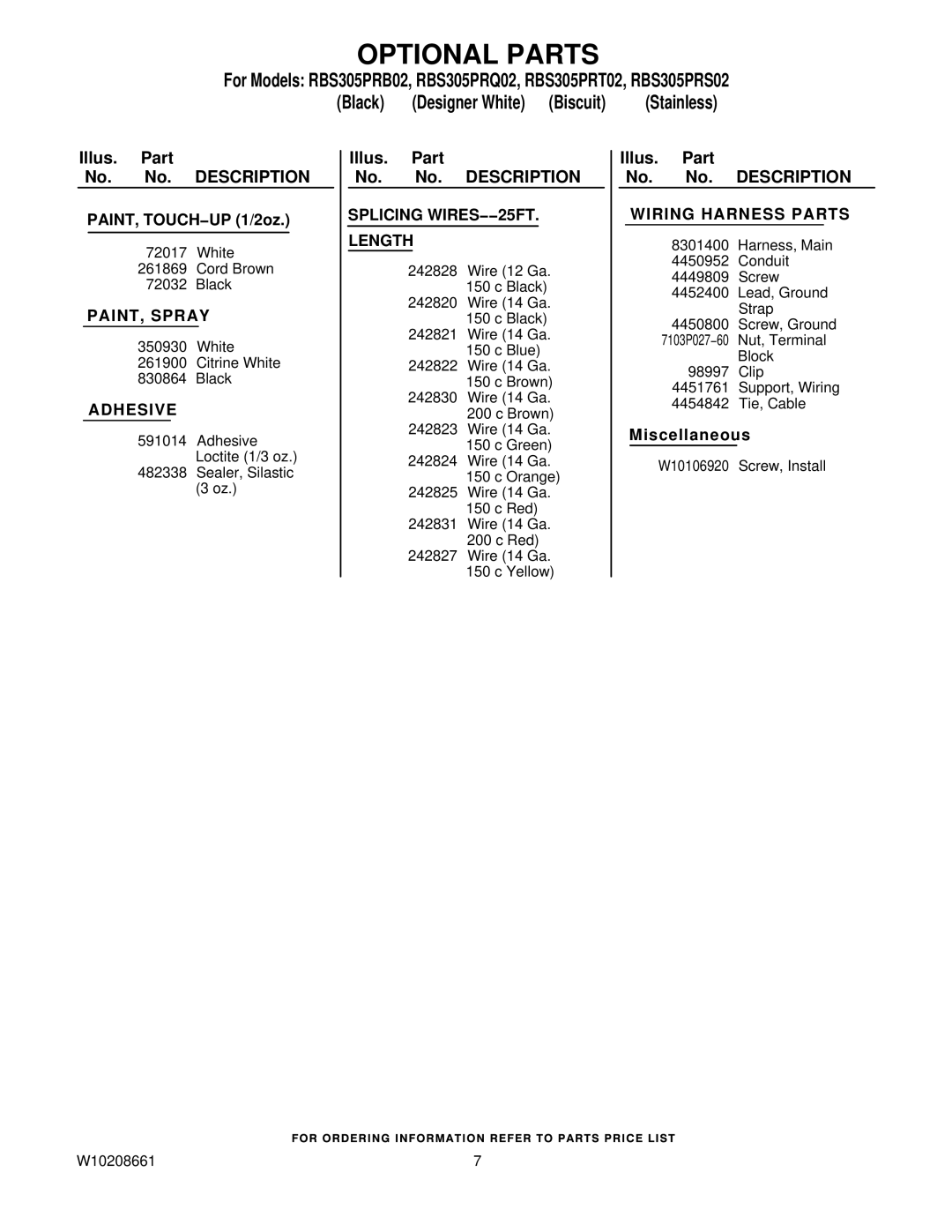

OPTIONAL PARTS
For Models: RBS305PRB02, RBS305PRQ02, RBS305PRT02, RBS305PRS02
(Black) (Designer White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
Illus. | Part |
|
| ||
| No. | No. | DESCRIPTION | ||
| WIRING HARNESS PARTS | ||||
|
|
|
|
|
|
|
|
| 8301400 | Harness, Main | |
|
|
| 4450952 | Conduit | |
|
|
| 4449809 | Screw | |
|
|
| 4452400 | Lead, Ground | |
|
|
|
| Strap | |
|
|
| 4450800 | Screw, Ground | |
|
|
| 7103P027−60 | Nut, Terminal | |
|
|
|
| Block | |
|
|
| 98997 | Clip | |
|
|
| 4451761 | Support, Wiring | |
|
|
| 4454842 | Tie, Cable | |
| Miscellaneous | ||||
|
| W10106920 | Screw, Install | ||
W10208661 | 7 |
