Zanussi KMFG800 dimensions Range Composition, Features, Technical Data, Characteristics Models

RANGE

COMPOSITION

N 700: a range of over 100 models for the
professional caterer designed to guarantee
the highest level of performance, reliability,
energy saving, safety standards and
ergonomic operation. These concepts are
reflected in the total modularity of the range
that ensures numerous configurations, either
free-standing or bridged. N 700
demonstrates how advanced technology can
satisfy the needs of the professional caterer.
The multifunctional cookers are
characterized by compact dimensions,
durable construction, versatility, reliability and
high performance.
The range consists of 2 electric and 2 gas
model suitable for damp cooking (stews,
goulash and risotto), dry cooking (chops,
hamburgers, fillets), frying (cutlet, fish,
omelette and chips) and dry bain-marie.
Fixed well with bottom in bi-metallic
compound, for even heat distribution and
easy to clean surface.	178104

FEATURES

� Front, worktop and flue in

stainless steel. The stainless steel

well features rounded corners with

the base in compound, which is the

composition of a lower layer of mild

MULTIFUNCTIONAL COOKERS

Accessories kit included: stopper, scraper for smooth plate and draining pipe for an easy food collection.

�IPX4 water protection.

N 700

ZANUSSI

P R O F E S S I O N A L

steel and a upper layer of 316 AISI

stainless steel. Mild steel is the best

material to resist high temperature

stress and to spread heat evenly

over the cooking surface, whilst 316

AISI stainless steel is ideal to protect

the appliance from corrosion.

� Feet in stainless steel, adjustable

up to a height of 50mm.

� All models have right-angled side

edges to allow flush-fitting joins

between units, eliminating gaps and

possible dirt traps.

� Better ergonomics is guaranteed

by the low flue particularly when the

appliances are positioned back to

back.

TECHNICAL DATA
CHARACTERISTICS		MODELS
	KMFG400	KMFG800	KMFE400	KMFE800
	178102	178103	178104	178105
Power supply	Gas	Gas	Electric	Electric

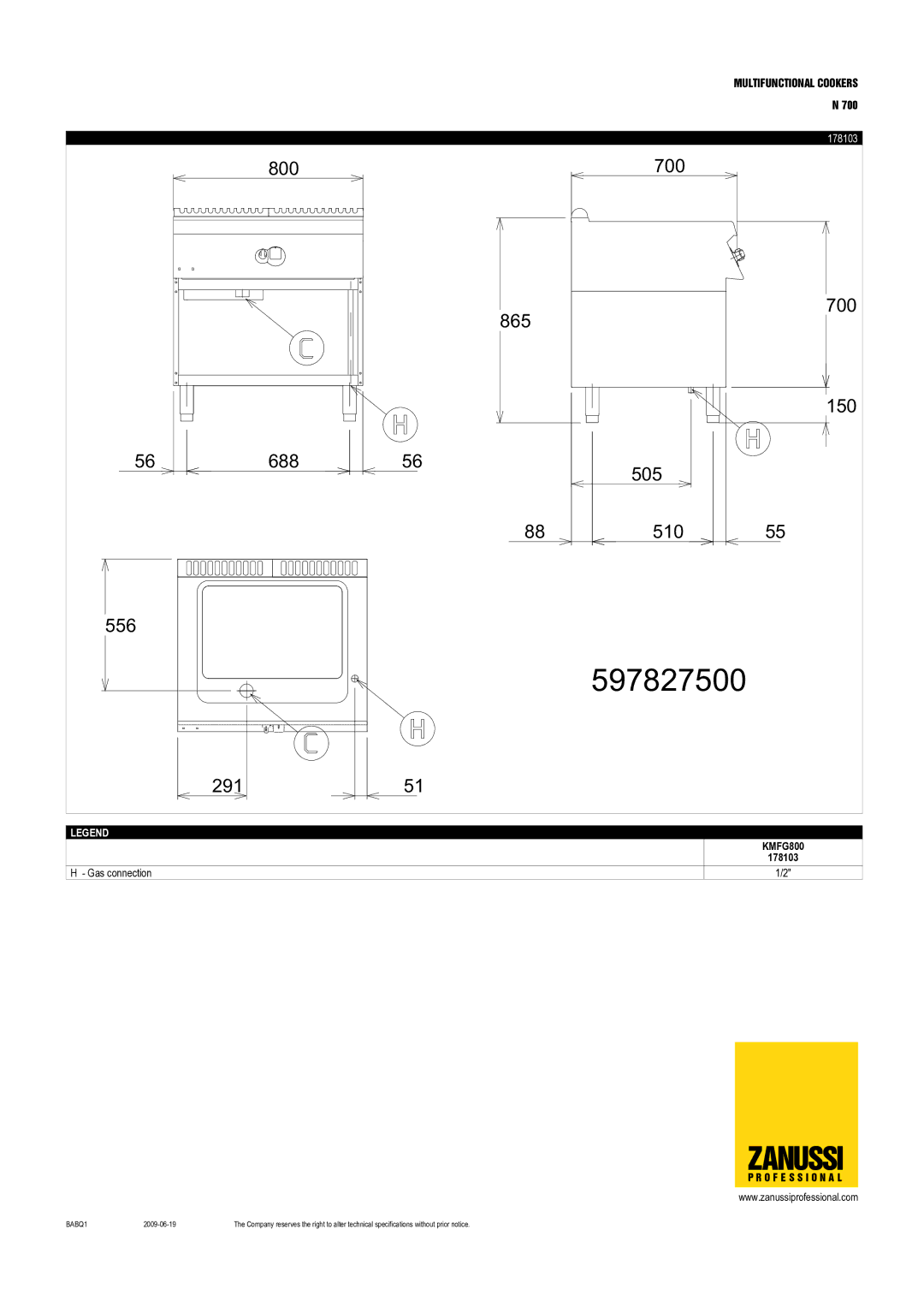

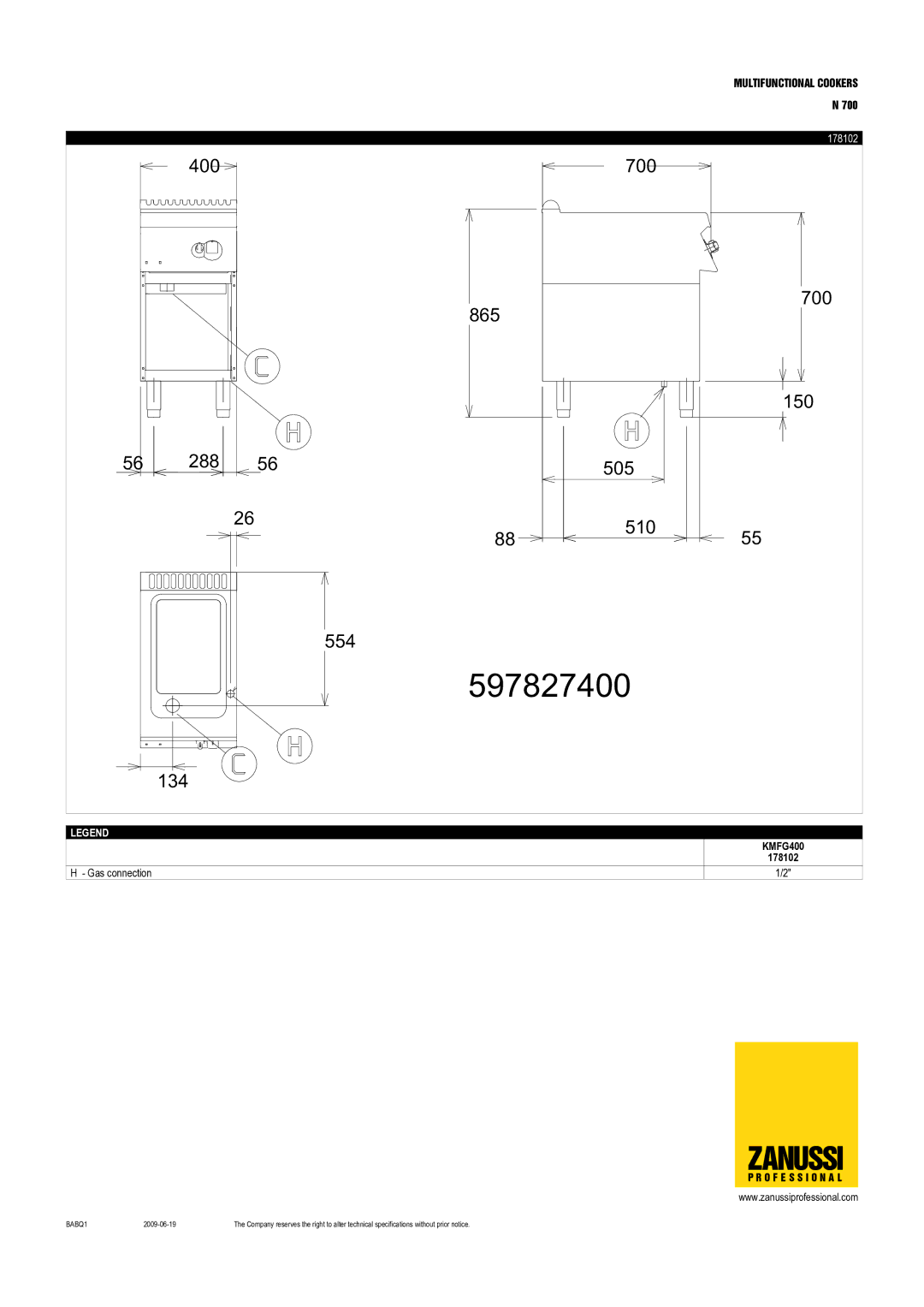

External dimensions - mm
width	400	800	400	800
depth	700	700	700	700
height	850	850	850	850
height adjustment	50	50	50	50
Cooking surface
type	Compound	Compound	Compound	Compound
material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
	AISI 316 - Din	AISI 316 - Din	AISI 316 - Din	AISI 316 - Din
	1.4404	1.4404	1.4404	1.4404
Thermostatic			•	•
Thermostatic valve	•	•
Maximum Well Capacity -lt	11	22	11	22
Cooking surface dimensions - mm
width	306	630	306	630
depth	510	510	510	510
Working temperature - min/max - °C	100, 250	100, 250	100, 250	100, 250
Power - kW
gas	7	14
installed-electric			5	10
Net weight - kg.	45	80	40	75
Supply voltage			400 V, 3N,	400 V, 3N,
			50/60	50/60

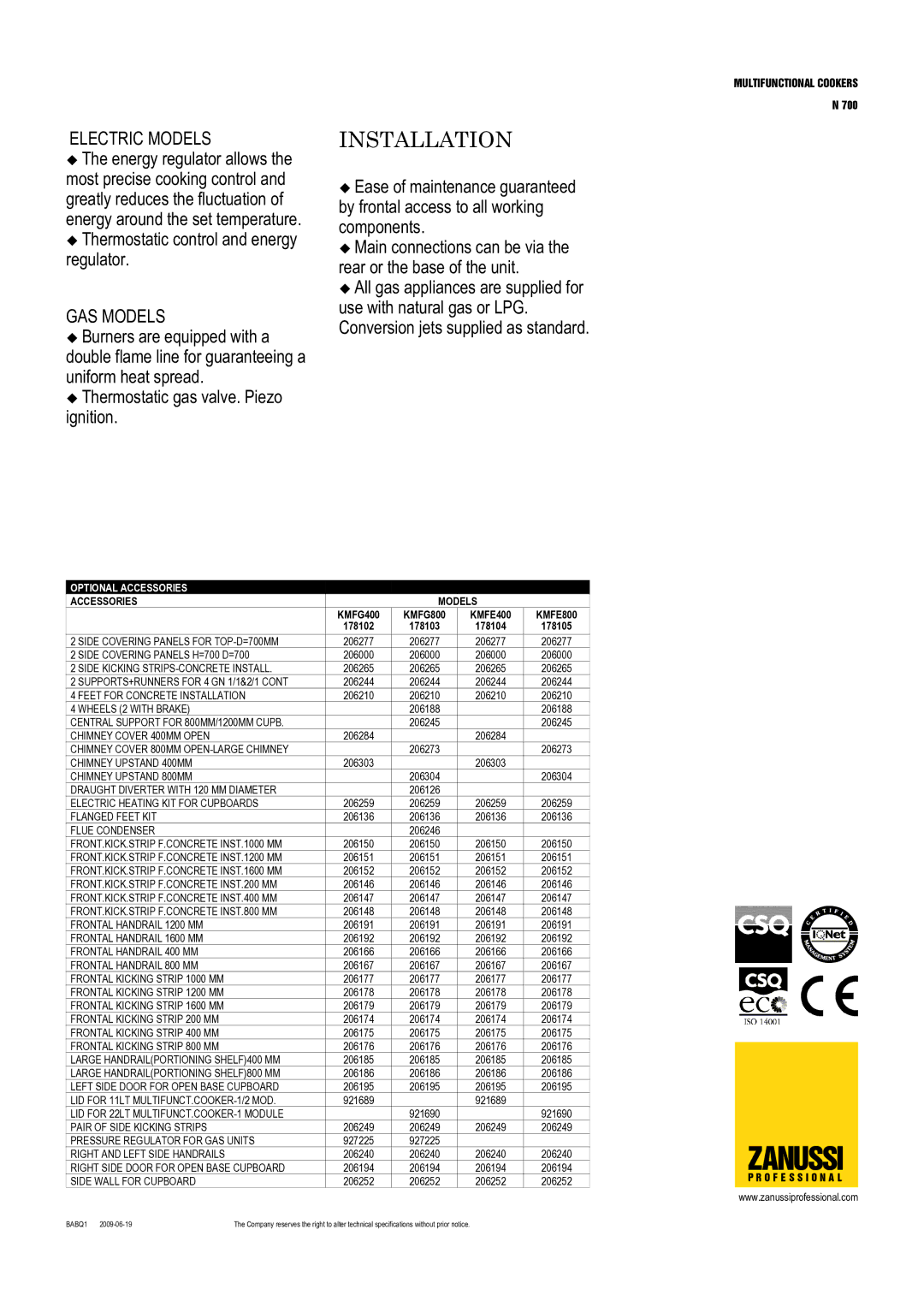

INCLUDED ACCESSORIES
BLADES WITH ROUNDED SIDES FOR SCRAPER	1	1	1	1
SCRAPER FOR SMOOTH PLATE FRY TOP	1	1	1	1
