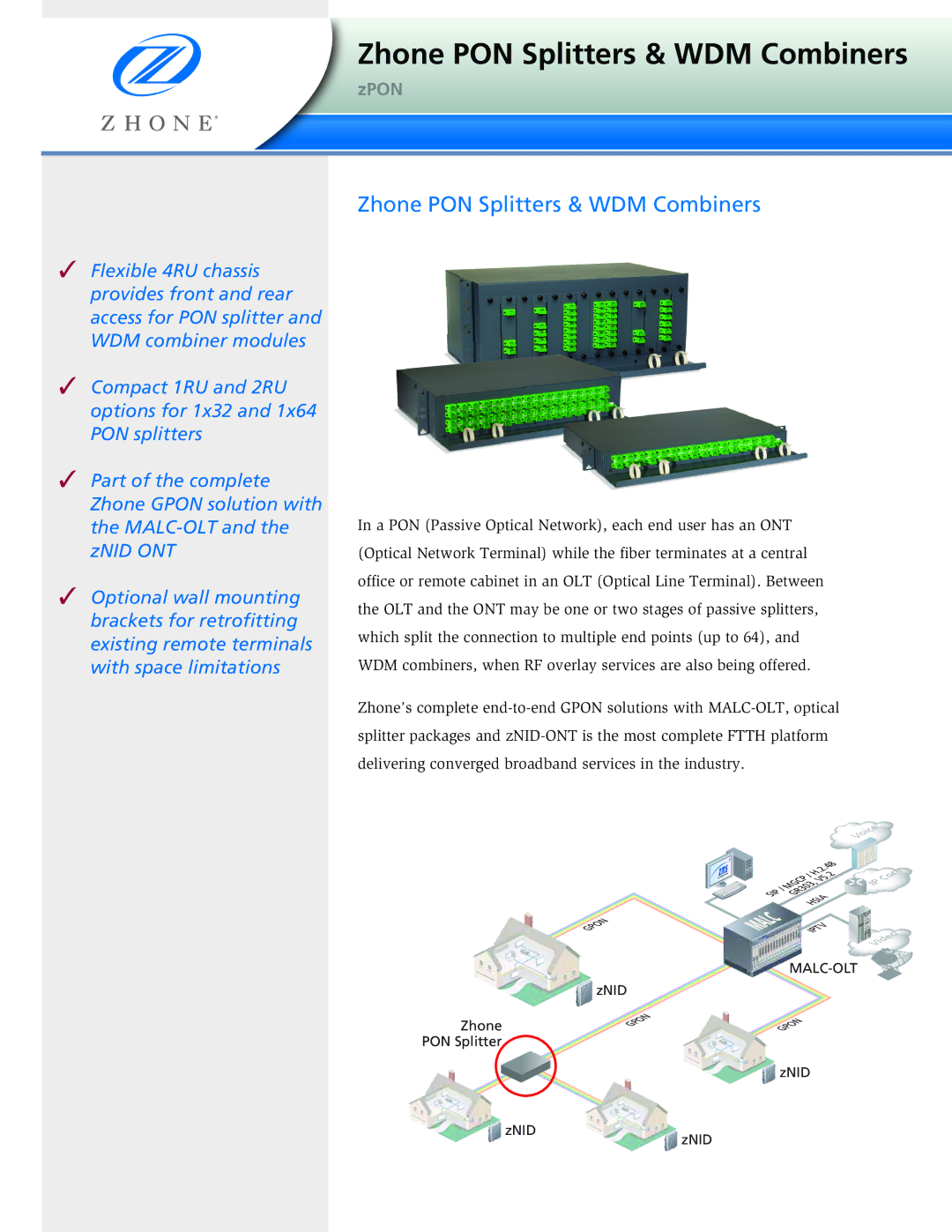

Zhone PON Splitters & WDM Combiners

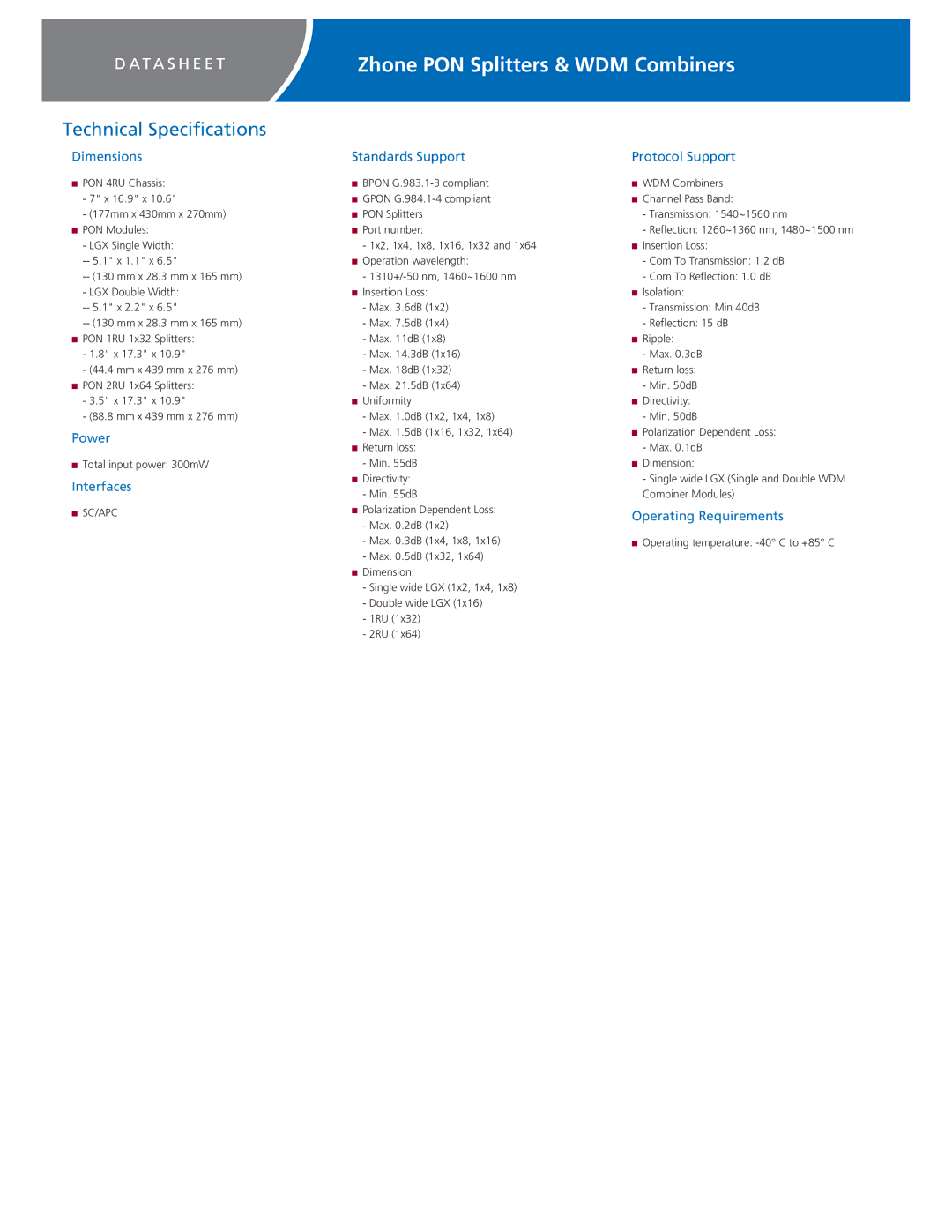

Technical Specifications

Dimensions	Standards Support	Protocol Support
■ PON 4RU Chassis:	■ BPON G.983.1-3 compliant	■ WDM Combiners
- 7" x 16.9" x 10.6"	■ GPON G.984.1-4 compliant	■ Channel Pass Band:
- (177mm x 430mm x 270mm)	■ PON Splitters	- Transmission: 1540~1560 nm
■ PON Modules:	■ Port number:	- Reflection: 1260~1360 nm, 1480~1500 nm
- LGX Single Width:	- 1x2, 1x4, 1x8, 1x16, 1x32 and 1x64	■ Insertion Loss:
-- 5.1" x 1.1" x 6.5"	■ Operation wavelength:	- Com To Transmission: 1.2 dB
-- (130 mm x 28.3 mm x 165 mm)	- 1310+/-50 nm, 1460~1600 nm	- Com To Reflection: 1.0 dB
- LGX Double Width:	■ Insertion Loss:	■ Isolation:
-- 5.1" x 2.2" x 6.5"	- Max. 3.6dB (1x2)	- Transmission: Min 40dB
-- (130 mm x 28.3 mm x 165 mm)	- Max. 7.5dB (1x4)	- Reflection: 15 dB
■ PON 1RU 1x32 Splitters:	- Max. 11dB (1x8)	■ Ripple:
- 1.8" x 17.3" x 10.9"	- Max. 14.3dB (1x16)	- Max. 0.3dB
- (44.4 mm x 439 mm x 276 mm)	- Max. 18dB (1x32)	■ Return loss:
■ PON 2RU 1x64 Splitters:	- Max. 21.5dB (1x64)	- Min. 50dB
- 3.5" x 17.3" x 10.9"	■ Uniformity:	■ Directivity:
- (88.8 mm x 439 mm x 276 mm)	- Max. 1.0dB (1x2, 1x4, 1x8)	- Min. 50dB
Power	- Max. 1.5dB (1x16, 1x32, 1x64)	■ Polarization Dependent Loss:
	■ Return loss:	- Max. 0.1dB
■ Total input power: 300mW	- Min. 55dB	■ Dimension:
Interfaces	■ Directivity:	- Single wide LGX (Single and Double WDM
	- Min. 55dB	Combiner Modules)
■ SC/APC	■ Polarization Dependent Loss:	Operating Requirements
	- Max. 0.2dB (1x2)
	- Max. 0.3dB (1x4, 1x8, 1x16)	■ Operating temperature: -40° C to +85° C
	- Max. 0.5dB (1x32, 1x64)
	■ Dimension:
	- Single wide LGX (1x2, 1x4, 1x8)
	- Double wide LGX (1x16)
	- 1RU (1x32)
	- 2RU (1x64)
