Milwaukee 6850 Reglas Especificas DE Seguridad Descripcionfuncional, Especificaciones, Simbología

Page 13

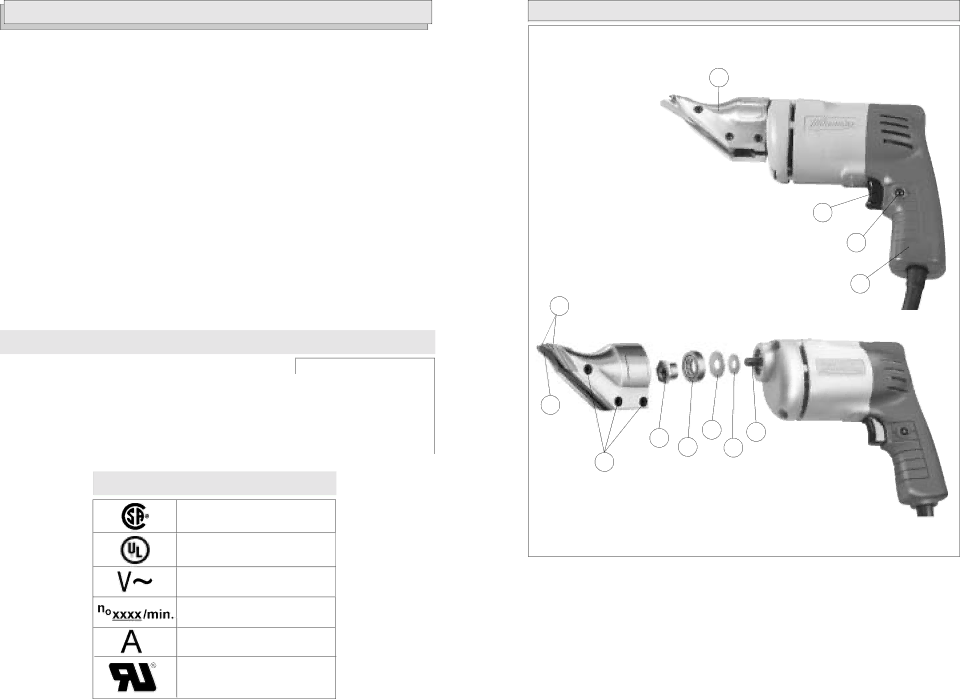

REGLAS ESPECIFICAS DE SEGURIDAD

DESCRIPCIONFUNCIONAL

1.Agarre la herramienta por los asideros aislados cuando realice una operación en la que la herramienta de corte pueda entrar en contacto con cables ocultos o con su propio cable. El contacto con un cable “con corriente” hará que las partes de metal expuesto de la herramienta pasen la corriente y produzcan una descarga al operador.

2.Guarde las etiquetas y placas de especificaciones. Estas tienen información importante. Si son ilegibles o si no se pueden encontrar, póngase en contacto con un centro de servicio de MILWAUKEE para una refacción gratis.

3.¡ADVERTENCIA! Algunas partículas de polvo resultantes del lijado mecánico, aserrado, esmerilado, taladrado y otras actividades relacionadas a la construcción, contienen sustancias químicas que se saben ocasionan cáncer, defectos congénitos u otros daños al aparato reproductivo. A continuación se citan algunos ejemplos de tales sustancias químicas:

plomo proveniente de pinturas con base de plomo

sílice cristalino proveniente de ladrillos, cemento y otros productos de albañilería y

arsénico y cromo provenientes de madera químicamente tratada.

El riesgo que usted sufre debido a la exposición varía dependiendo de la frecuencia con la que usted realiza estas tareas. Para reducir la exposición a estas sustancias químicas: trabaje en un área bien ventilada, y utilice equipo de seguridad aprobado como, por ejemplo, máscaras contra el polvo que hayan sido específicamente diseñadas para filtrar partículas microscópicas.

Especificaciones

Capacidad

Cat.

Volts



Velocidad







No.

ca

r p m

de Corte

Radio Min.

Acero

Inoxidable















6850

120

N/A

4,5 m/min.

18 cm (7")

18 gauge

20 gauge







(15'/min.)



(1,2 mm)

(0,91 mm)

6851

120

0 - 2 500

N/A

N/A

N/A

N/A















Simbología

Canadian Standards

Association

Underwriters

Laboratories, Inc.

Volts corriente alterna

Revoluciones por minuto sin carga (rpm)

Amperios

Underwriters Laboratories, Inc.

El Componente Reconocido

1.Carcasa de la cizalla

2.Empuñadura

3.Botón de seguro

4.Gatillo

5.Hojas laterales

6.Hoja central

7.Tornillos de cabeza

8.Manguito excéntrico

9.Cojinete

10.Arandela grande

11.Arandela pequeña

12.Flecha

5

Cat. No. 48-05-0500

6

8

9

7

1

1012

11

Cat. No. 6850

4

3

2

Cat. No. 6851

24

25

Image 13
