Craftsman 315.CR2000 manual Vea esta secci6n de la pagina para todas

Page 13

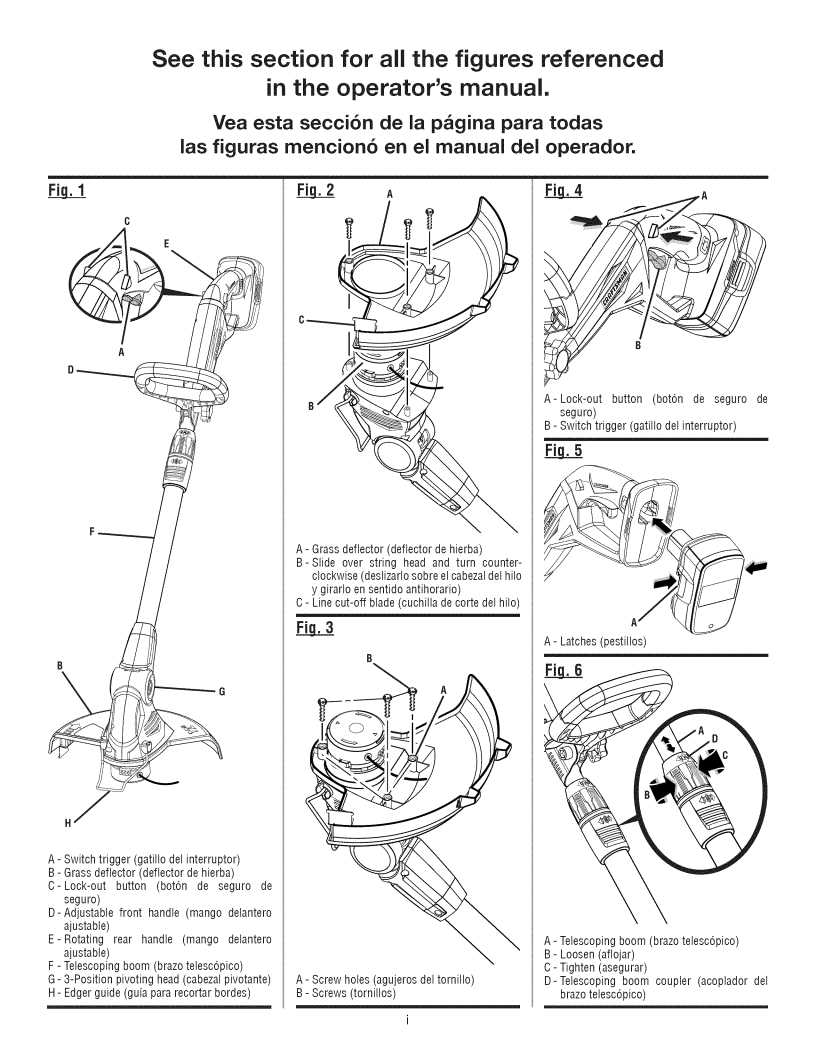

See this section for all the figures referenced in the operator's manual.

Vea esta secci6n de la pagina para todas

las figuras mencion6 en el manual del operador.

A

A - Switch trigger (gatillo del interruptor) B - Grass deflector (deflector de hierba)

C-Lock-out button (bot6n de seguro de seguro)

D-Adjustable front handle (mango delantero ajustable)

E-Rotating rear handle (mango delantero ajustable)

F - Telescopingboom (brazo telescopico)

G- 3-Position pivoting head (cabezalpivotante) H - Edger guide (guia para recortar bordes)

A - Grass deflector (deflector de hierba) B-Slide over string head and turn counter-

clockwise (deslizarlo sobre el cabezaldel hilo y girarlo en sentido antihorario)

C - Line cut-off blade (cuchilla de corte del hilo)

A - Screw holes (agujeros del tornillo) B - Screws (tornillos)

i

A-Lock-out button (bot6n de seguro de seguro)

B - Switch trigger (gatillo del interruptor)

A - Latches (pestillos)

A - Telescopingboom (brazo telescopico) B- Loosen (aflojar)

C - Tighten (asegurar)

D-Telescoping boom coupler (acoplador del brazo telescopico)
