Section 4: Operation

How to Use Accessory Tray

The unit is equipped with an accessory tray with places to store your spray gun, nozzle extension and ProjectPro™ nozzles.

NOTE: The extra hole in the tray is for storing a utility brush.The extra clip in the tray is for storing a turbo nozzle.The brush and turbo nozzle are NOT included with your pressure washer.You can buy these items as optional accessories.

1.Place nozzle extension through hole on accessory tray, as shown in Figure 14.

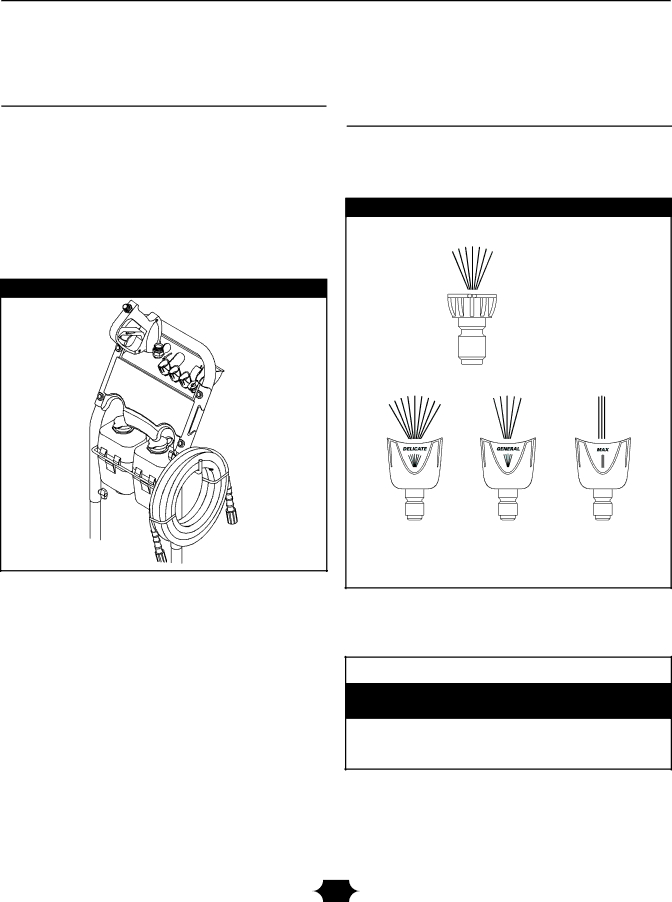

Figure 14 — Typical Accessory Tray

2.Place spray gun through hole on accessory tray on right side of unit (Figure 14).

3.Insert multi–colored ProjectPro™ nozzles in spaces provided in accessory tray (Figure 14).

4.Hang high pressure hose on hook attached to handle, as shown in Figure 14.

How to Use ProjectPro™ Nozzle System

The quick–connect on the nozzle extension allows you to switch between four different ProjectPro™ system nozzles. The ProjectPro™ nozzles vary the pressure and spray pattern as shown (Figure 15).

Figure 15 — Nozzle Spray Patterns



Low Pressure





Black





Use to apply



detergent



High Pressure



Delicate

General

Max

40° Yellow

15° Orange

0° Red

2550 PSI

2800 PSI

3100 PSI

2.8 GPM

2.7 GPM

2.5 GPM

Follow these instructions to change ProjectPro™ nozzles:

1.Engage trigger lock on spray gun.

CAUTION

A pressure washer produces a high pressure spray which increases risk of injury and damage to unit.

•NEVER exchange ProjectPro™ nozzles without engaging the trigger lock on the spray gun.

•DO NOT twist ProjectPro™ nozzles while spraying.

2.Pull back collar on quick–connect and pull current ProjectPro™ nozzles off. Store ProjectPro™ nozzles in holder provided on the accessory tray.
