Poulan 96192004300, 436134 Engine Model 12A114, Frame, 436146X421, Engine Mount Plate, 428684

Page 35

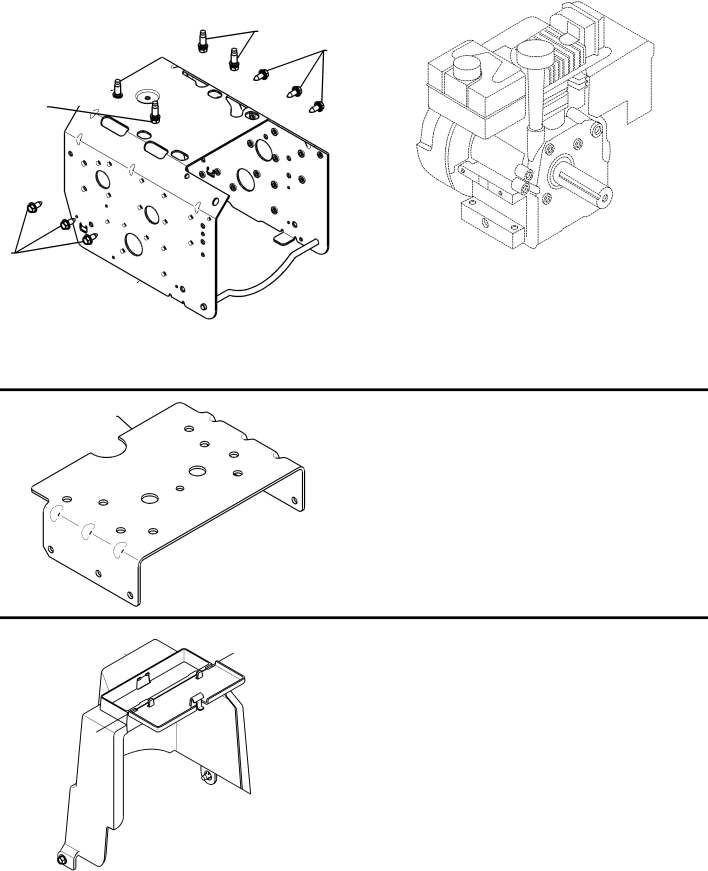

REPAIR PARTS SNOW THROWER - - MODEL NO. PR827ES (96192004300)

CHASSIS / ENGINE / PULLEYS

KEY	PART
NO.	NO.	DESCRIPTION
- -	- - - - - -	B&S ENGINE MODEL 12A114-
01.00.034-A		1467-E8
1	418694X421	FRAME
2	150406	BOLT 3/8-16
3	428867	SCREW 5/16-18 X .750

1
KEY	PART
NO.	NO.	DESCRIPTION
1	436146X421	ENGINE MOUNT PLATE

01.01.007-B

KEY	PART
NO.	NO.	DESCRIPTION
1	428684	COVER ASSEMBLY

01.21.013-B

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty.

Image 35
