Intel NSW1U manual 18/2007 V1.2

Page 19

The main difference between the TMLPMOUNT41 and TMLPMOUNT51/52 series is that the TMLPMOUNT41 series uses a screw to lock the server in place via the Universal Mounting Bracket, whilst the TMLPMOUNT51/52 series has an additional Slide Pull-Out Locking feature.

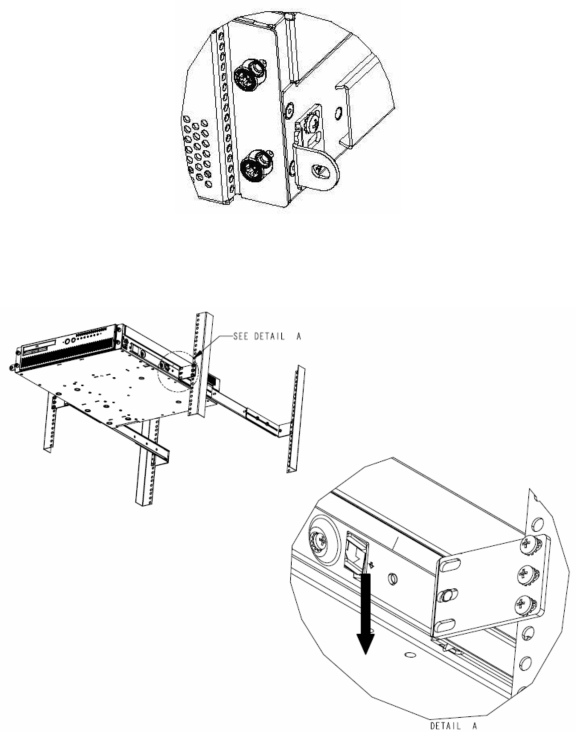

The Universal Front Mounting Bracket on the TMLPMOUNT41

The Slide Pull-Out Locking feature on the TMLPMOUNT51/52

5/18/2007

v1.2

19 of 21
