Intel 8VM533M-RZ-C user manual FDD Floppy Connector, IDE1 / IDE2 IDE1 / IDE2 Connector

Page 14

English

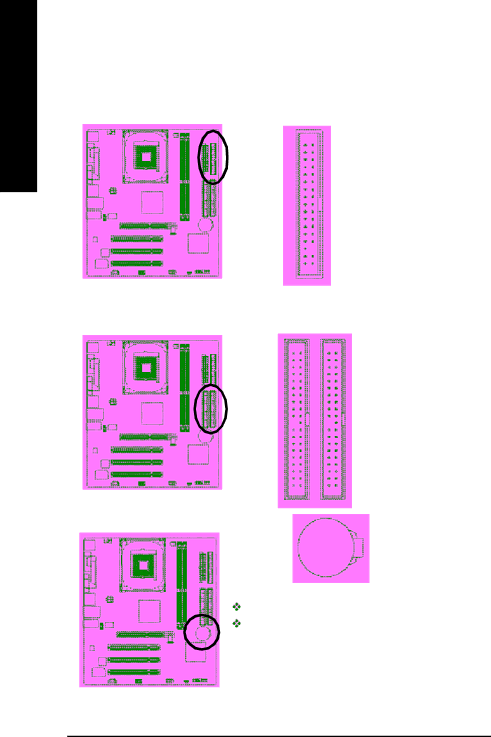

4) FDD (Floppy Connector)

Please connect the floppy drive ribbon cables to FDD. It supports 360K, 1.2M, 720K, 1.44M and 2 .88M bytes floppy disk types.

The red stripe of the ribbon cable must be the sam e side with the Pin1.

34 33

2 1

5) IDE1 / IDE2 (IDE1 / IDE2 Connector)

Im portant Notice: Please connect first hard disk to IDE1 and connect CD-ROM to IDE2. The red stripe of the ribbon cable must be the sam e side with the Pin1.

4039

IDE2IDE1

21

6) BAT (BATTERY)

+

CAUTION

Danger of explosion if batteryis incorrectlyreplaced.

Replace onlywith the same or equivalenttype recommended bythe manufacturer.

Dispose of used batteriesaccording to the manufacturer's instructions. If you want to erase CMOS...

1.T urn OFF the computerand unplug the powercord.

2.Remove the battery, wait for 30 second.

3.Re-install the battery.

4.Plug the power cord and turn ON the computer.

8VM533M -RZ Series Motherboard

- 14 -
