ViewSonic VP2290B manual Adjusting and maintaining your display, Adjusting the viewing angle

Page 15

Adjusting and maintaining your display

This chapter describes the following:

•How to adjust the viewing angle.

•How to set the controls.

•The operating status of your display.

•How to disconnect the cables.

•How to use the security keylock.

•How to maintain your display.

Adjusting the viewing angle

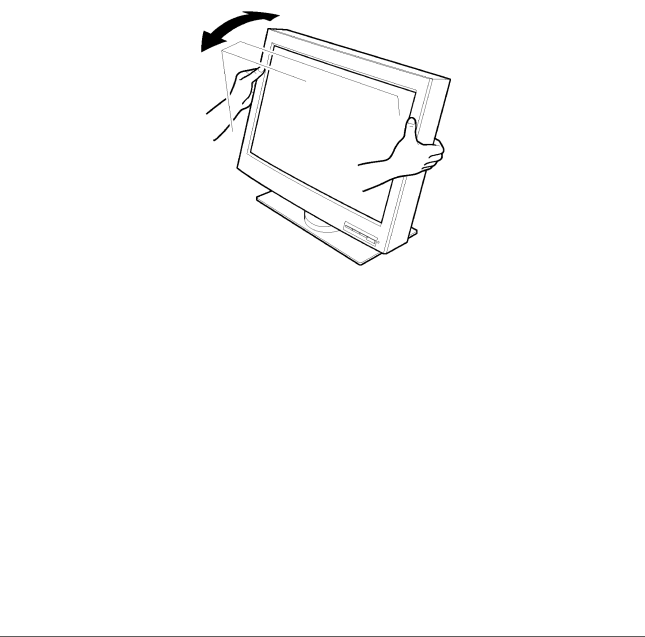

You can adjust the vertical angle of the display to avoid unnecessary light reflection and to make viewing easier. Tilt the screen angle vertically by grasping both sides of the display and pulling it forward or backward.

ViewSonic VP2290b

12

Image 15
