ViewSonic VP2290B manual Submenus, Brightness submenu, Video input submenu

Page 18

Submenus

To access a submenu, do the following:

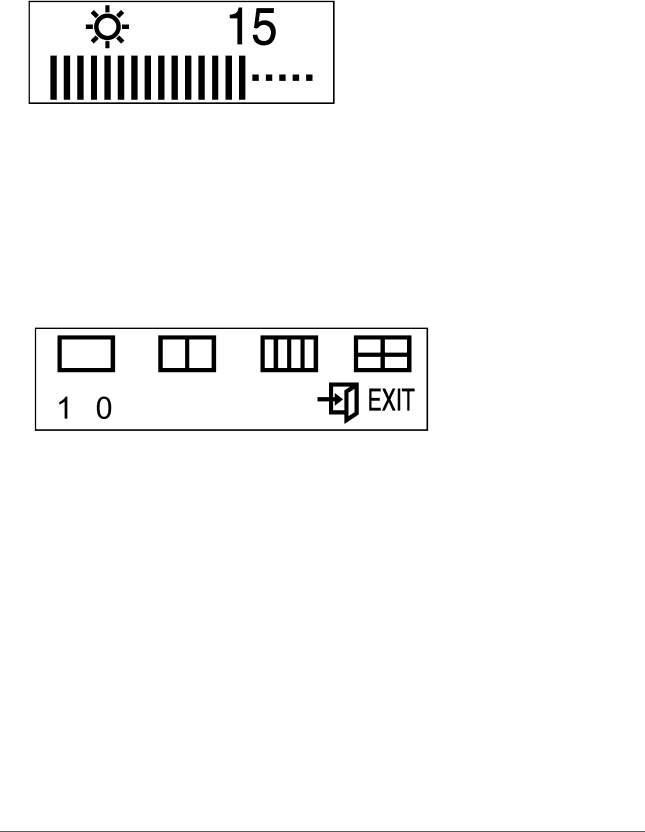

Brightness submenu

1.Select the Brightness icon on the Main menu using the Left-Arrowor the Right-Arrowbutton.

2.Press the Menu/Enter button. The Brightness submenu appears.

3.Adjust the brightness using the Left-Arrowor the Right-Arrowbutton.

4.Press the Menu/Enter button to exit from this submenu.

Video input submenu

1.Select the Video Input icon on the Main menu using the Left-Arrowor the Right-Arrowbutton.

2.Press the Menu/Enter button. The Video Input submenu appears.

15 ViewSonic VP2290b
