Knowing the operating status of your display

You can know the status of your display by the color of the power light.

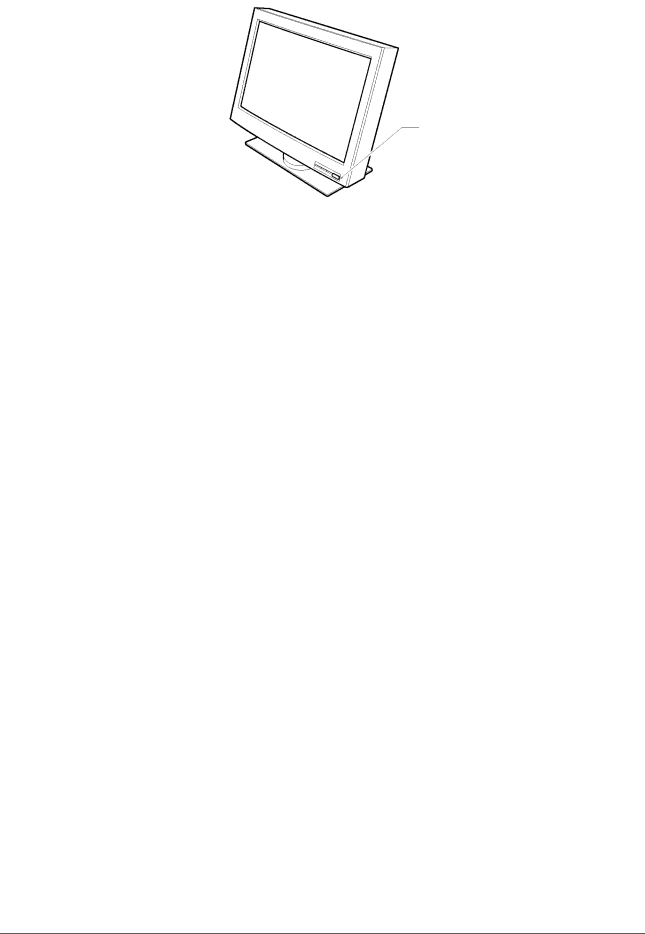

Power light

The color of the power light changes from green to amber when your display receives a time-out video signal from the computer and enters Standby mode to save power. A time-out video signal is sent from your computer to the display when the former detects inactivity on the keyboard or mouse for a set duration of time. You can change the time-out duration for your display from the computer. Refer to the manual shipped with your computer to change the time-out duration value.

Color

Mode

Power

Description

Consumption















Green

Normal

150 W (Maximum)

The display is operating normally and is receiving



Operation



the synchronous video signal from the computer.









Amber

Standby Mode

Less than 5 W

Either:







• the display is in Standby mode to save power, or







• the video cable is disconnected.







If the display is in Standby mode, it is not receiving







any video signals from the computer.







If the video cable is disconnected, refer to







“Troubleshooting” on page 20.









Amber (fast

An error such as fan not working has occurred.

blinking at





Refer to “Troubleshooting” on page 20.

0.25-sec.







intervals)















Amber (slow

The display does not support the incoming video

blinking at





signal.

1-sec.







intervals)
