Manually Configuring your Router

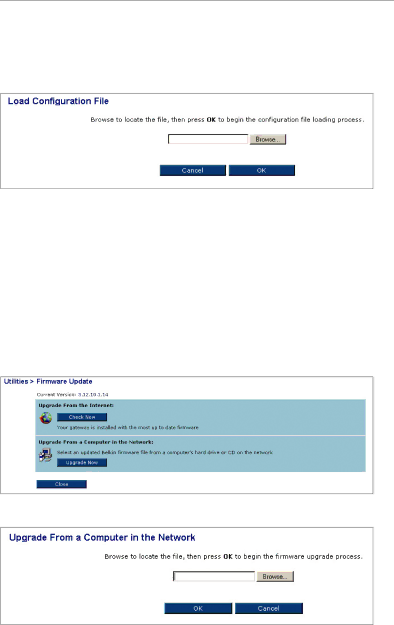

Restore Previous Settings

This option will allow you to restore a previously saved configuration.

1.Click “Browse”. A window will open that allows you to select the location of the configuration file. All configuration files end with a “.conf”. Locate the configuration file you want to restore and double-click on it.

2.Click “OK” then “OK” again to restore.

Firmware Update

From time to time, Belkin may release new versions of the Router’s firmware. Firmware updates contain feature improvements and fixes to problems that may have existed. When Belkin releases new firmware, you can download the firmware from the Belkin update website and update your Router’s firmware to the latest version.

To manually upgrade the firmware from a file on your hardware or CD, click “Upgrade Now”.

46
