Page 32

Manually Configuring your Router

•54G-LRS – It is not recommended you use this mode unless you have a very specific reason to do so. This mode exists only to solve unique problems that may occur with some 802.11b client adapters and is NOT necessary for interoperability of 802.11g and 802.11b standards.

Note: Switching to 54G-LRS only mode will decrease 802.11g performance to 11Mbps.

Security

Changing the Wireless Security Settings

Your Router is equipped with the latest security standard called WPA (Wi-Fi Protected Access). It also supports the legacy security standard called WEP (Wired Equivalent Privacy). By default, 64-bit WEP wireless security is enabled. To access the security settings, click “Security” on the “Wireless” tab.

Setting WEP Encryption

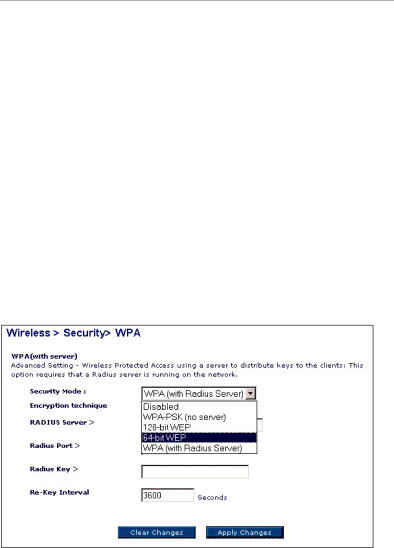

1.Select “128-bit WEP” or “64-bit WEP” from the drop-down menu.

30
