Gigabyte GA-8AENXP-D user manual Installation of the Heatsink

Page 13

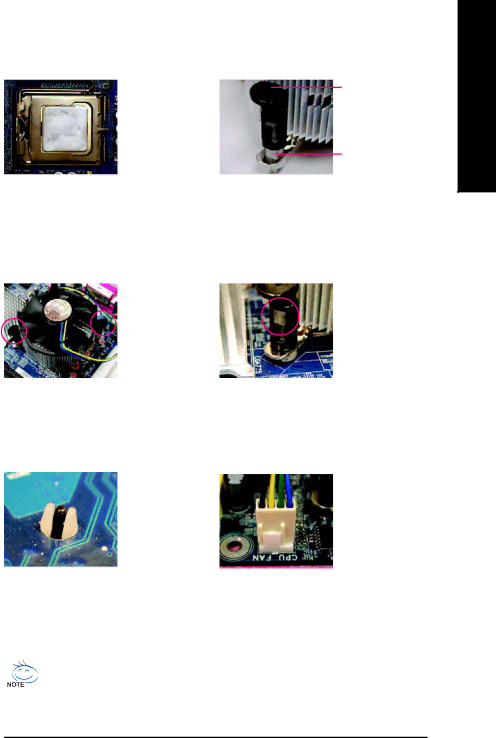

1-3-2 Installation of the Heatsink

Male Push Pin

The top of Female Push Pin

Female Push Pin

English

Fig.1

Please apply an even layer of heatsink paste on the surface of the installed CPU.

Fig. 3

Place the heatsink atop the CPU and make sure the push pins aim to the pin hole on the motherboard. Pressing down the push pins diagonally.

Fig. 5

Please check the back of motherboard after installing. If the push pin is inserted as the picture, the installation is complete.

Fig. 2

(Turning the push pin along the direction of arrow is to remove the heatsink, on the contrary, is to install.) Please note the direction of arrow sign on the male push pin doesn't face inwards before installation. (This instruction is only for Intel boxed fan)

Fig. 4

Please make sure the Male and Female push pin are joined closely. (for detailed installation instructions, please refer to the heatsink installation section of the user manual)

Fig. 6

Finally, please attach the power connector of the heatsink to the CPU fan header located on the motherboard.

The heatsink may adhere to the CPU as a result of hardening of the heatsink paste. To prevent such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for heat dissipation or using extreme care when removing the heatsink.

- 13 -

Hardware Installation
