VIDEO INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Select INPUT source by pressing INPUT button on Top Control. Select INPUT source by pressing COMPUTER 1 or VIDEO button on Remote Control Unit.

If projector can not reproduce proper image, select correct input source through MENU OPERATION (see below).

MENU OPERATION

When connecting to those equipment, select a type of Video source in SOURCE SELECT MENU.

1

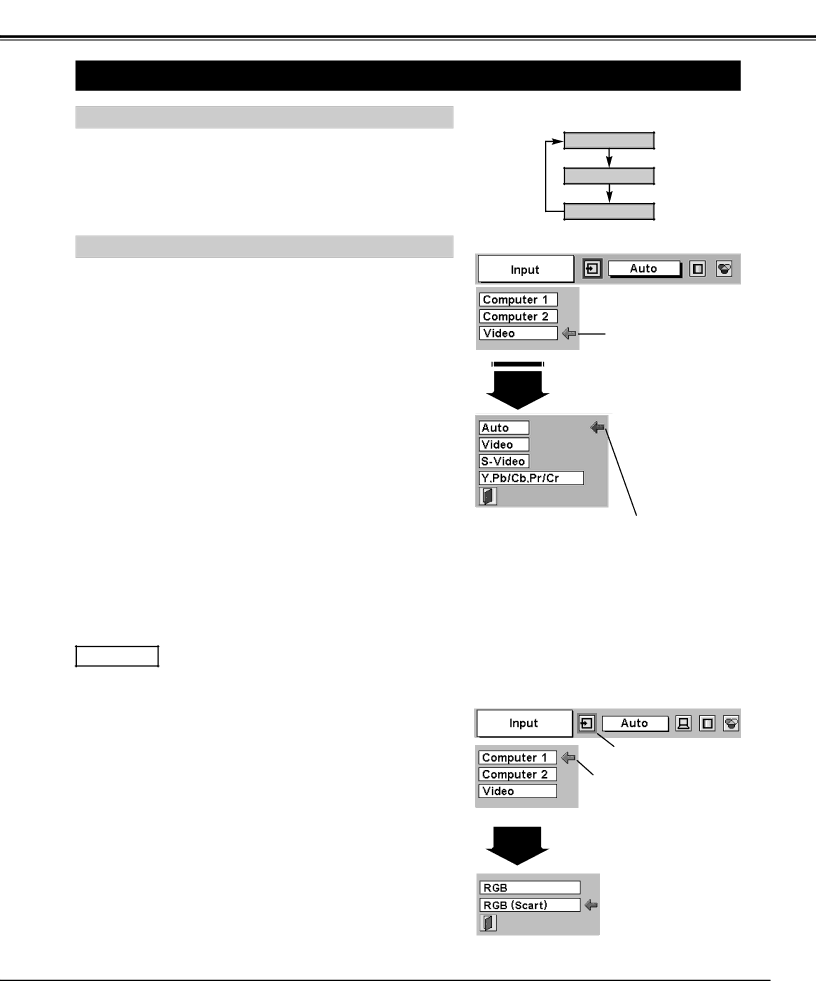

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to



INPUT Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to

Video and then press SELECT button. Source Select Menu will



appear.

3

Move a pointer to the source that you want to select and then

press SELECT button.





Projector automatically detects incoming Video signal,



Auto





and adjusts itself to optimize its performance.





When both VIDEO jack and S-VIDEO jack are connected, S-VIDEO jack has priority over VIDEO jack.

When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, Y-Pb/Cb-Pr/Cr jacks have priority over S- VIDEO jack.

Video

When video input signal is connected to VIDEO jack,



select Video.





When video input signal is connected to S-VIDEO jack,

S-Video



select S-Video.



Y,Pb/Cb,Pr/Cr When video input signal is connected to Y-Pb/Cb- Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

INPUT MENU

VIDEO

INPUT button

Computer 1

Computer 2

Video

Move a pointer to Video and press SELECT button.

Source Select Menu (VIDEO)

Move a pointer to the source and press SELECT button.

When connect the 21-pin Scart (RGB) output from video INPUT MENU equipment to computer 1 (HDB 15-pin) terminal on the

projector.

1

Press MENU button and ON-SCREEN MENU will appear. Press



POINT LEFT/RIGHT button to move a red frame pointer to





INPUT Menu icon.



2

Press POINT DOWN button to move a red arrow pointer to



Computer 1 and then press SELECT button. Source Select











Menu will appear.

Computer 1





3

Press POINT DOWN button and a red-arrow icon will appear.



Move arrow to "RGB (Scart)" and press SELECT button.



INPUT Menu icon

Move a pointer (red arrow) to Computer and press SELECT button.

Source Select Menu

Move a pointer to RGB (Scart) and press SELECT button.
