MAINTENANCE

TEMPERATURE WARNING INDICATOR

The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops flashing when the temperature of the projector become normal.

When the TEMPERATURE WARNING Indicator continues to flash, check the following.

1

The Ventilation slots of the projector are blocked. In such an event, reposition the appliance so that the ventilation

slots are not obstructed.

2

Air filter is clogged with dust particles. Remove dust from the air filter by following the instructions in the AIR FILTER

CARE AND CLEANING section below.

3

If the TEMPERATURE WARNING Indicator remains on after performing the above checks, the Cooling Fans or the

Internal Circuits may be malfunctioning. Contact Boxlight for service.

AIR FILTER CARE AND CLEANING

The Removable Air Filters prevent dust from accumulating on the surface of the Projection Lens and the Projection Mirror. Should the Air Filters become clogged with dust particles, they will reduce the Cooling Fans' effectiveness and may result in internal heat build up and effect on the life of the projector.

To clean the Air Filters, follow the cleaning procedures below:

1

Turn the power off, and disconnect the AC power cord from the

AC outlet.

2

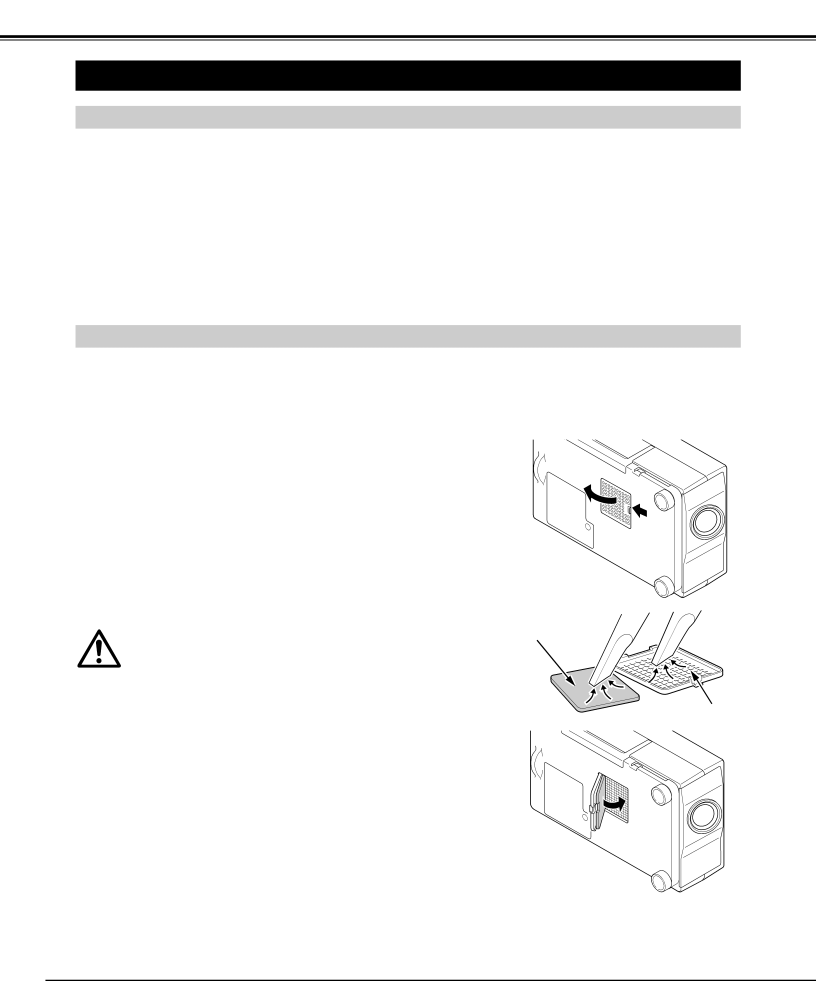

Remove the air filter cover. Press the cover latch sideway and lift

the cover.

3

4

Remove the air filter from the filter cover.

Clean the air filter with a vacuum cleaner.

5 inserted.Replace the air filter. Make sure that the air filter cover is fully



CAUTION

AIR FILTER

Do not operate the projector with the Air Filter removed. The dust can become stuck on the LCD Panel and the Mirror, and it may spoil the fine picture image.

RECOMMENDATION

AIR FILTER COVER

We recommend avoiding dusty/smoky place for operating the projector. Using in dusty places may cause poor quality image.

When using under dusty or smoky conditions, dust may accumu- late on the liquid crystal panel and lens inside, and may be pro- jected on the screen together with the picture.

When the above symptoms are noticed contact Boxlight for cleaning of the unit.
