Page 6

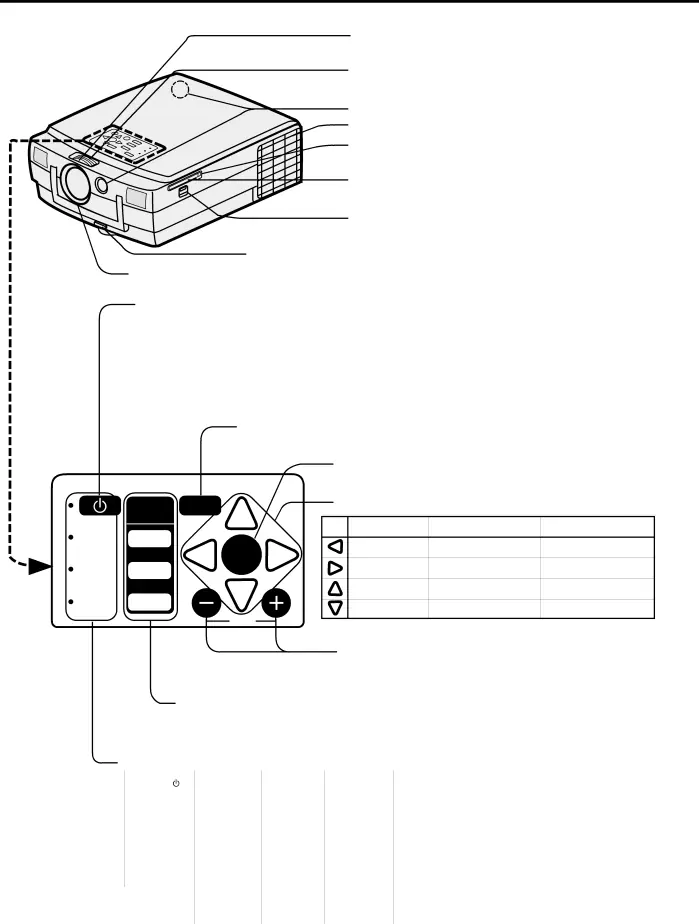

Overview of the projector

Overview of the projector



focus ring



Use to adjust the focus by turning it. See page 16.



zoom ring



Use to magnify (or reduce) by turning it. See page 16.



remote control sensor (Front / Rear)



exhaust slits



PC card eject



Press to eject the PC card. See page 23.



PC card slot



This is where you insert the PC card. See page 23.



PC card slot cover button



Press down to open the PC card slot. See page 23.



release button

handle

Press to adjust the angle of projection. See page 11.

Hold here to carry this projector.

power

Use to turn the projector on or off when MAIN POWER is on. To turn the projector off, press this button twice.

Important:

When the LAMP indicator blinks in green, the power switch cannot be used to switch “ON” and “OFF.” Begin operation only after the indicator has stopped blinking.

See indicator table below for more information.

menu

Use to project menu display.

enter

Use for MENU setting. See page 17.

SOURCE

LAMP RGB

TEMP VIDEO

CARD

PC CARD

MENU

direction













Normal

On Menu

On PC card



Adjust FINE (-)

Set item

Select previous image (Left)



ENTER







Adjust FINE (+)

Set item

Select next image (Right)



Select item (up)

Select INDEX or FILE



Select item (down)

Select INDEX or FILE



VOL





+, -

Press to turn the volume up or down. During playback of PC card, use to select group of the PC card.

input source (RGB, VIDEO, PC CARD)

Use to select the input source you wish to watch. You can select PC CARD when the CARD indicator ON.

indicators

POWER( )

LAMP

TEMP

CARD

Condition

Steady red







Stand-by.

Steady green Brinking green





Power is TMON∫.



} Steady green







Steady green Steady green Blinking red



Abnormal temperature warning (high temperature).*1

Steady red



Steady red



Abnormal temperature-OVER (high temperature).









The source lamp will be also turned off.

Steady green

Blinking red /green





Lamp duration warning. (Lightning duration total about 1,500 hours.) *2

Steady red

Steady red





Lamp duration-OVER. (Lightning duration total about 2,000 hours.)

Steady green

Steady green



Steady green PC card inserted, off then no PC card.

*1 : In the condition, the sign of “TEMP!!” blinks red on the screen.

*2 : When the lamp has been used for about 1,900 hours, the message “LAMP!!” will appear on the screen.

6
