Setting up your projector

Setting up the screen

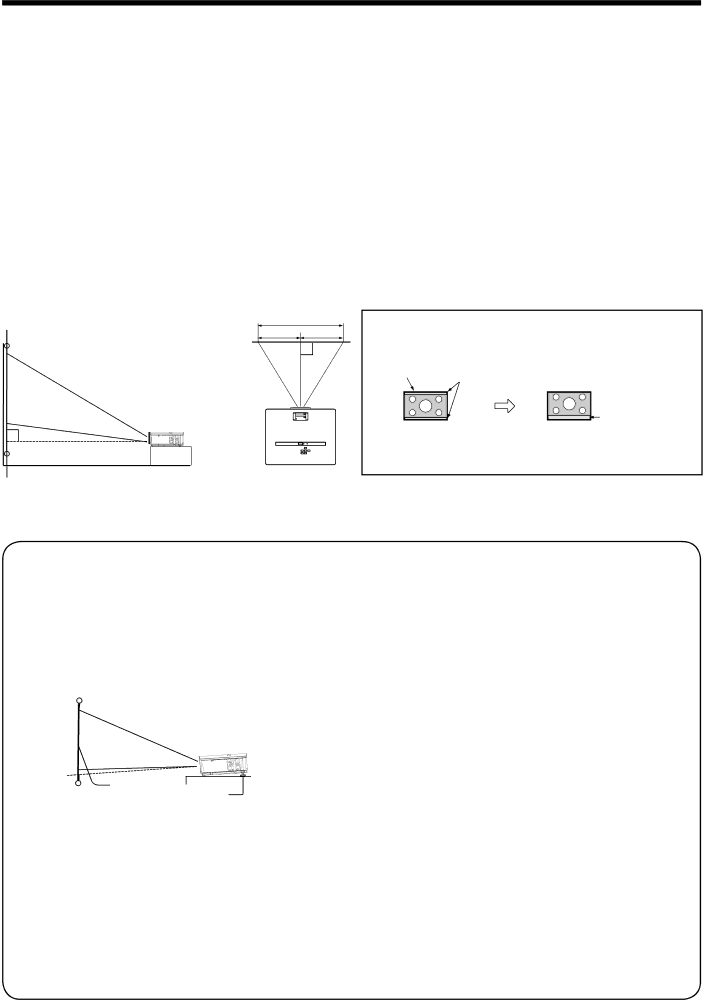

Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector. (See below.)

•Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of the screen center.

•Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen makes the projected images washed-out and hard to view.

SCREEN SIZE

You can keep the image display area within the screen by setting SCREEN SIZE in the IMAGE menu according to the size of the actual screen.

When setting SCREEN SIZE to CINEMA SCOPE(2.35:1):

•CinemaScope size movies are projected in the full screen.

•Set ASPECT in the FEATURE menu to 16:9 when displaying Vista-size images. In this case, they are squeezed horizontally.

•When ASPECT in the FEATURE menu is set to AUTO and 480p, 720p, or 1080i signal is input, the part for displaying subtitles is not projected. Then, set SCREEN SIZE to 720P(16:9) and adjust the image position using VERTICAL LOCATION of the IMAGE menu. (To display the menu on the screen, adjust SHUTTER (U) of USER in the SIGNAL menu to position the menu.)

Basic setup

Determine the distance from the screen to the projector according to the size of the images to be projected. (See page 12.)

W

AB

A=B

VERTICAL LOCATION

You can adjust the vertical position of the displayed image using VERTICAL LOCATION in the IMAGE menu.

(Example) To move the displayed image up:

Maximum panel size (WXGA 15:9)

Empty area





Empty area

Set SCREEN SIZE in the IMAGE

Set VERTICAL LOCATION in the

menu to 720p(16:9)

IMAGE menu to +6.

•When you increase the value of VERTICAL LOCATION too much, the displayed image may be out of the screen partially.

•Do not place this projector on a carpet or blanket because the exhaust vent and the intake vent on the bottom surface are blocked and the projector would heat, causing a breakdown or fire.

•Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.

Adjusting the projection angle

This projector is provided with three feet for adjusting the projection angle on the bottom surface. Adjust the projection angle depending on the position of the projector.

Adjustment of the projection angle

For the best projection, project images on a flat screen installed at 90 degrees to the floor. If necessary, tilt the projector using the two adjustment feet on the bottom of the projector.

Screen Adjustment feet (rear)

1.Tilt up the projector to the appropriate angle.

2.Press the foot adjustment buttons next to the adjustment feet (rear), and the adjustment feet will come out.

3.Release the buttons to lock the adjustment feet (rear) to that position.

4.Rotate the adjustment feet (rear) for fine adjustment.

After using the projector:

5. Put the adjustment feet (rear) back into the projector by pressing the foot adjustment buttons.

•If necessary, rotate the adjustment feet (front) for fine adjustment.

When projected images are distorted to a trapezoid:

When the screen and the projector are not placed perpendicularly to each other, projected images become trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments, adjust keystone. (See page 18.)

•When the keystone adjustment is applied, the correct aspect ratio may not be obtained.

•When the keystone adjustment is applied, the resolution lowers. In addition, vertical stripes ap- pear and straight lines bend in images with com- plicated patterns. To prevent such symptoms, keep the screen and the projector perpendicular to each other as much as possible.

•Though the projected image may be distorted momentarily when you change the setting value of the keystone adjustment, such symptom is not a malfunction.

•Though the projected image may be distorted depending on the setting value of the keystone adjustment and the type of the input signal, such symptom is not a malfunction. In such a case, adjust the setting value within the range where the projected image is not distorted.

•The setting value displayed at the time of the keystone adjustment may vary depending on the type of the input signal.

•The keystone mode does not function when the REAL mode is applied.

•Displayed image may be distorted during key- stone adjustment.
